Solax Modbus templates
All 10 available Solax templates for ModbusCloud.
Monitor Solax X3 Hybrid, X1/X3 G3/G4, and X3-MIC/PRO string inverters via Modbus TCP from your portal.
- Templates
- 10
- Connection
- Modbus RTU and TCP
- Registers
- 2 to 668 per template
- Compatible models
- Solax X3 Hybrid G2 · Hybrid X1/X3 G3/G4 · Q.HOME ESS HYB-G3 · X3-Hybrid G4 · X1-Hybrid G4 · SolaX X3-Hybrid G4 5, 6, 8, 10, 12 and 15 kW · SolaX X1-Hybrid G4 3, 3.68, 5, 6 and 7.5 kW · X3-MIC G2 · X3-PRO G2 · Q.VOLT P5T-X · Q.VOLT P17T-X
- Last updated
Solax templates
5 via Modbus RTU, 5 via Modbus TCP
-917/cover.png)

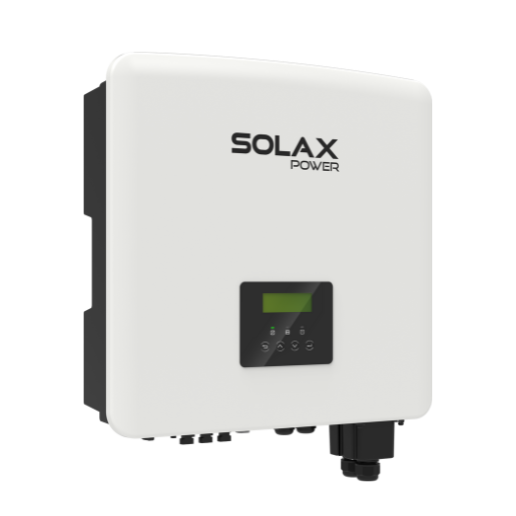

Solax X3 Hybrid G2Monitors Solax X3 Hybrid G2 inverter and battery values via Modbus TCPModbus TCP48 read, 0 write
Solax Hybrid X1/X3 G3/G4 (battery)Modbus RTU2 read, 3 write- Solax Hybrid X1/X3 G3/G4 (grid)Modbus TCP8 read, 0 write
- Solax Hybrid X1/X3 G3/G4 (pv)Modbus RTU3 read, 0 write
SolaX X3-Hybrid G4Three-phase hybrid inverter for PV and home battery, with grid meter, backup output and battery control.Modbus RTU456 read, 212 write
SolaX X3-Hybrid G4 SettingsSettings readback, identification and battery BMS details of a three-phase hybrid inverter.Modbus RTU244 read, 0 write- Solax X3-MIC G2 (grid)Modbus TCP2 read, 0 write
- Solax X3-MIC G2 (pv)Modbus TCP8 read, 0 write
- Solax X3-PRO G2 (grid)Modbus TCP2 read, 0 write
- Solax X3-PRO G2 (pv)Modbus RTU8 read, 0 write
The scan recognises these devices
Connect them to RS485 or the network and start a scan in the portal.
Gateway
Portal
Incl. 4G data up to 30 MB per month
Excl. VAT. White label customer portal included. All prices
Order your first gateway100-day money-back guaranteeIf the gateway fails to connect to a Modbus device from our template library, you get your money back.
Solax builds PV inverters for residential and small-commercial sites — the X3 Hybrid G2, the X1 and X3 Hybrid G3 and G4 families with battery support, the X3-MIC G2, and the X3-PRO G2 string inverters. You see Solax boxes on single-family rooftops, small apartment blocks, and light-commercial installs where the same inverter covers PV generation and battery storage. Installers need to see live yield, grid behaviour, and battery state without opening the installer menu each visit.
Modbuscloud ships eight Solax templates over Modbus TCP, with the X1/X3 hybrid range split into PV, grid, and battery views so you can chart each side separately. Each template maps the Solax register layout: PV string power, total yield, grid voltage and frequency, grid import and export, and on the hybrid G3/G4 and X3 Hybrid G2 also battery state of charge and charge or discharge power. Point the ModbusCloud Gateway at the inverter over TCP and the template takes care of the register addresses.
All eight Solax templates are free to browse. Import one into your portal and read live data within minutes — no register hunting, no manufacturer PDFs.
What you can read out
- PV string power and total yield
- Grid voltage and frequency
- Grid import and export power
- Battery state of charge (hybrid models)
- Battery charge and discharge power
Typical installations
- Residential PV rooftops with a Solax string or hybrid inverter
- Small apartment blocks monitored per unit by the installer
- Light-commercial installs combining PV with battery storage
