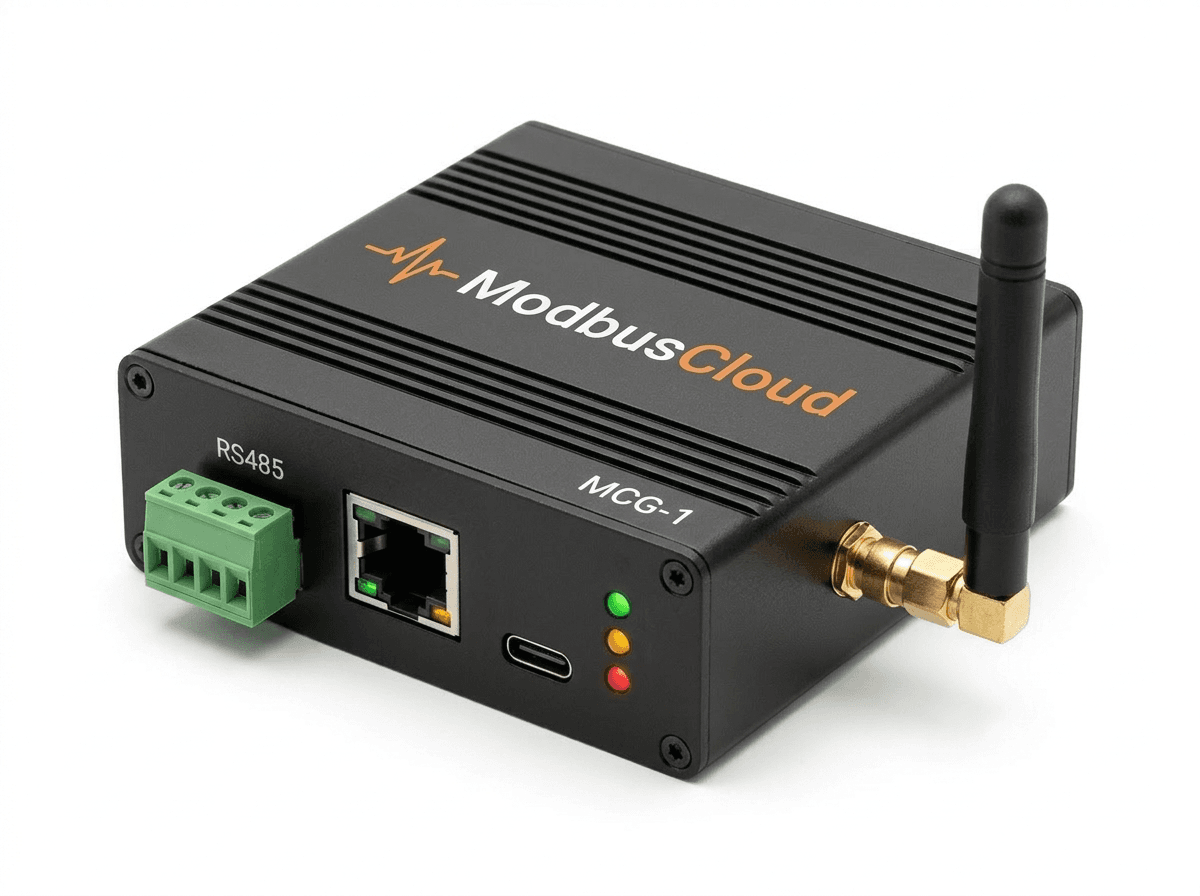

ModbusCloud Gateway
Connect Modbus RTU and TCP devices and the gateway recognises them with a scan.
€295one-off, excl. VAT
Order your first gateway
- RS485
- Modbus RTU
- Ethernet
- Modbus TCP
- 4G LTE
- Backup, SIM included
- Power supply
- 9 to 57 V DC
- Certification
- CE, RED, RoHS
Connect via RS485 or Modbus TCP
RS485 with Modbus RTU
The RS485 line connects to the gateway's terminal block. One line takes up to 32 devices.
Ethernet with Modbus TCP
The gateway reads Modbus TCP devices through its network ports. It also sends the data to the portal over the network.

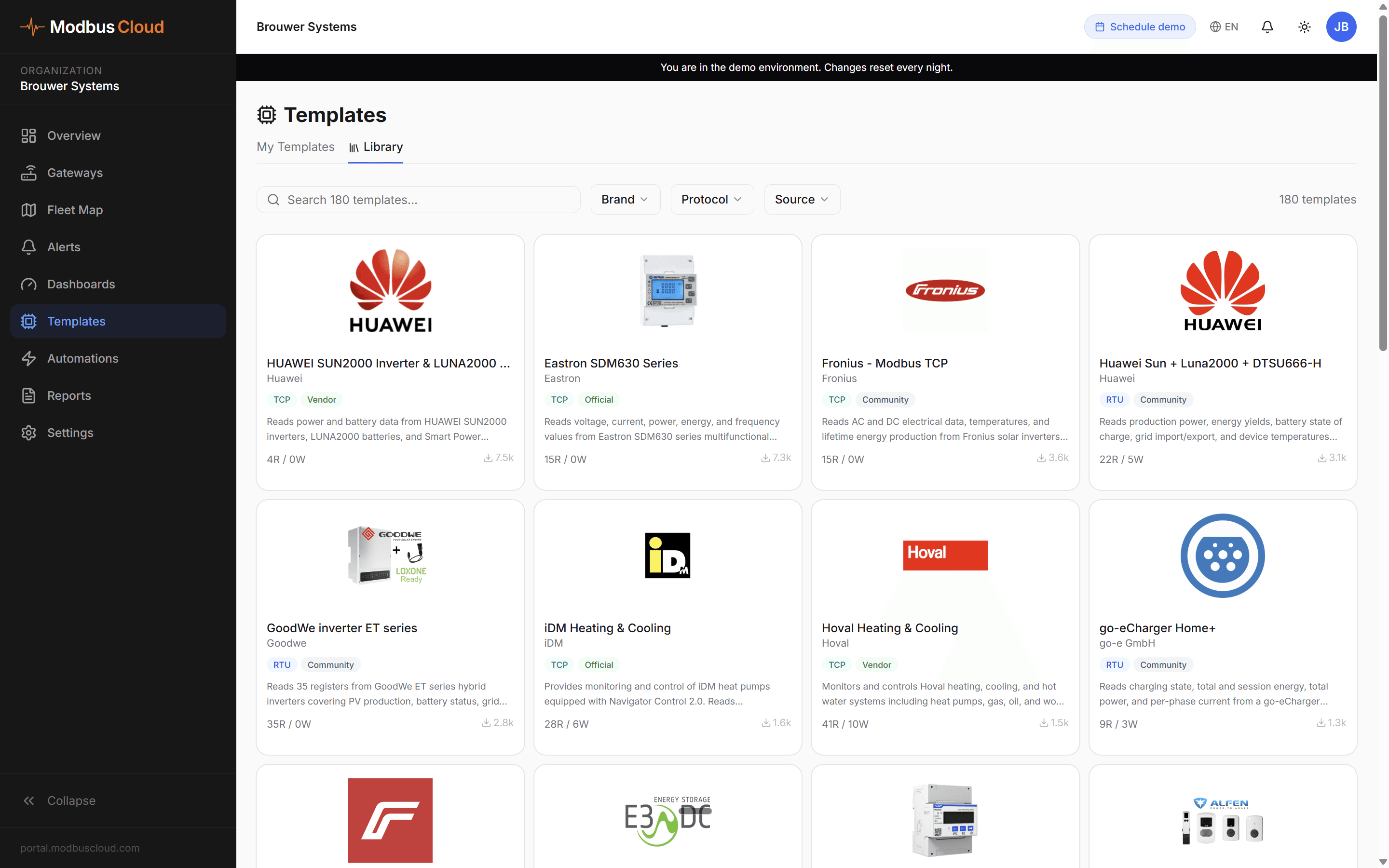

The whole library is on the gateway
Start a scan in the portal and the gateway recognises any of the 1114 devices in the library.
If your device is missing, we build the template for free as soon as we have the register data. You can also set up the registers yourself.
Browse the library

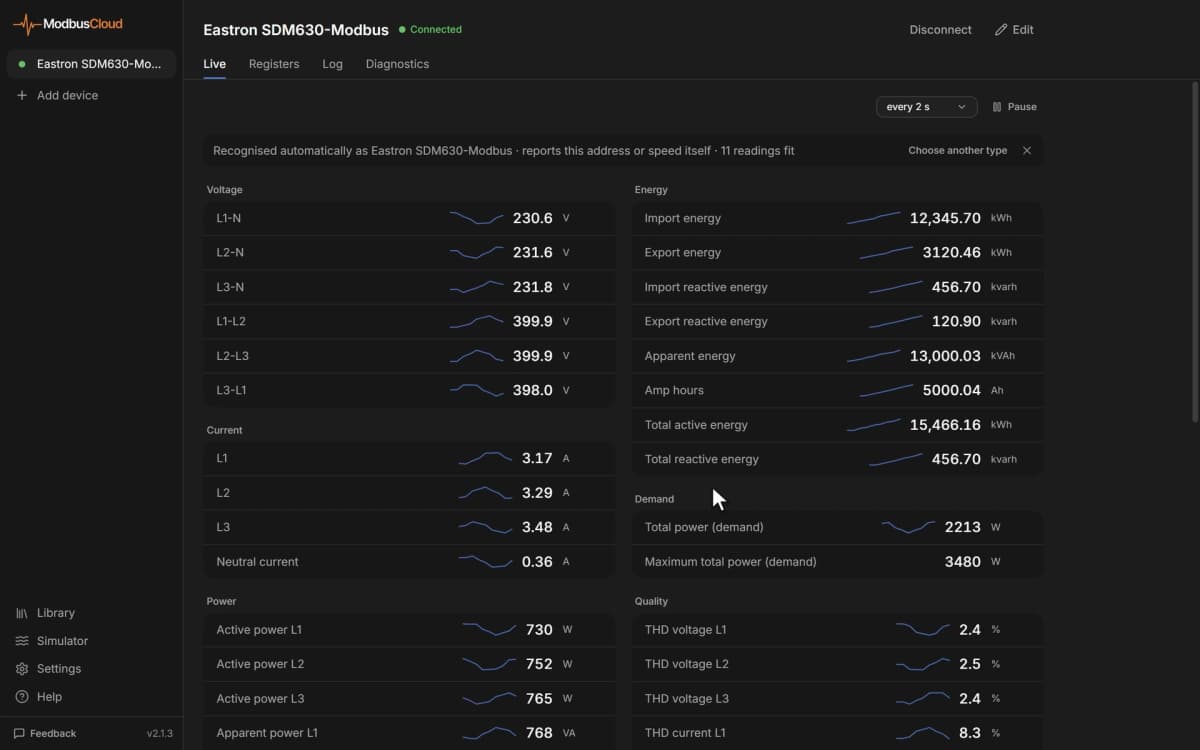

- Eastron SDM630RS485, address 1L1231.4 V
P3.69 kW - SMA Sunny TripowerModbus TCPP8.42 kW
- NIBE S seriesModbus TCPFlow38.6 °C
4G LTE as backup
If there is no network, or it drops out, the data goes over 4G. The SIM is already fitted.
- Energy meterRead just nowL1231.4 V
P3.69 kW
Buffer during outages
If the connection drops, the gateway keeps reading. It stores up to 20,000 readings with their timestamp and sends them as soon as the connection is back. In the portal they then show up at the right moment in the history.
One reading is one register at one poll. How long the buffer lasts therefore depends on the number of registers and the interval. The portal accepts readings up to 7 days old.
| Registers | Interval | Buffer lasts |
|---|---|---|
| 5 | 15 minutes | 7 days, the portal limit |
| 10 | 5 minutes | About 6 days |
| 10 | 1 minute | Just over a day |
| 20 | 1 minute | About 15 hours |
| 50 | 1 minute | About 6 hours |

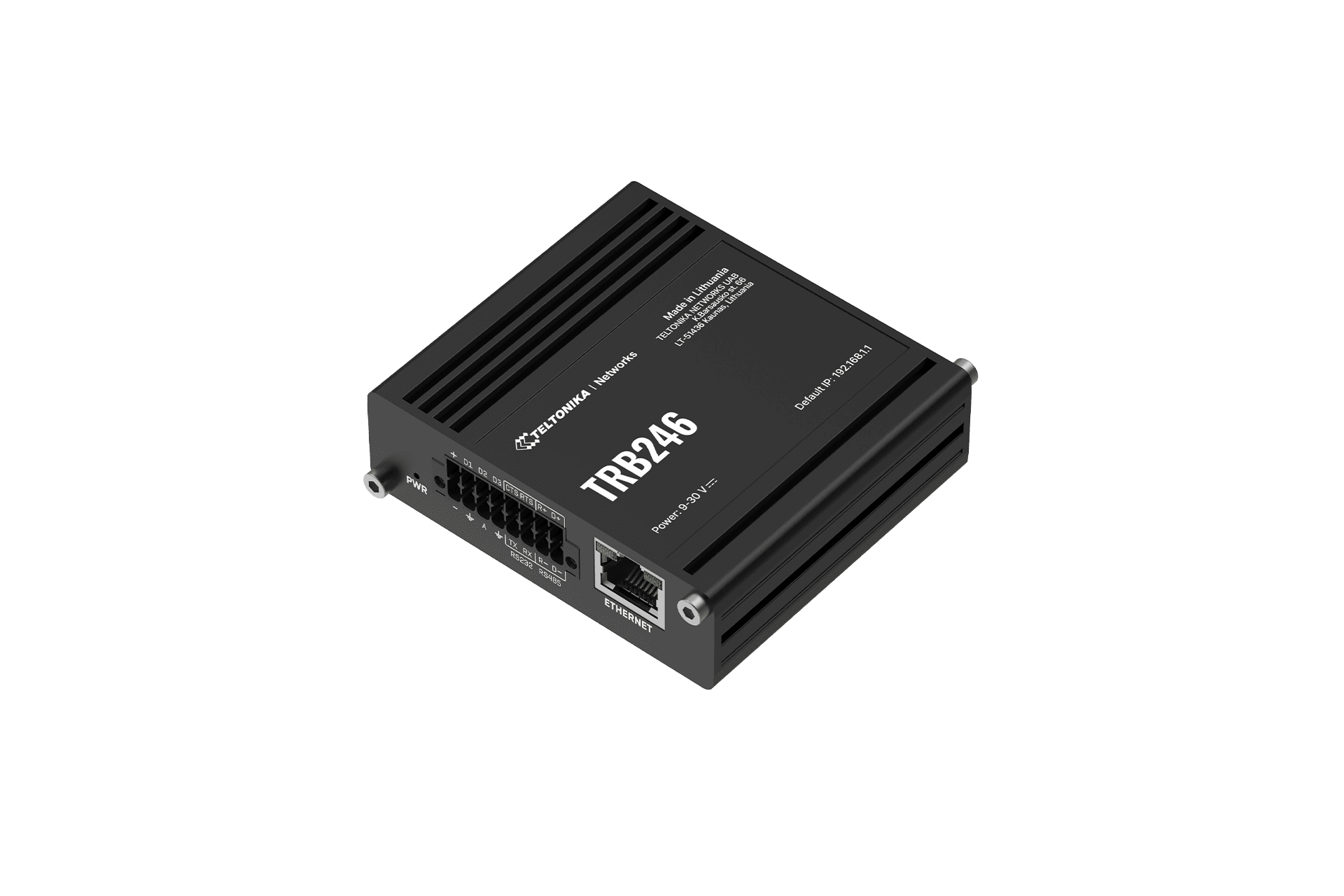

Specifications of the 4G Modbus gateway
| Connections | |
|---|---|
| RS485 | Modbus RTU, with the gateway as master |
| Devices per RS485 line | Up to 32 |
| Ethernet | Two ports, LAN and WAN, 10/100 Mbit/s. For Modbus TCP and the internet connection |
| 4G LTE | Cat 4, as backup, SIM included |
| Connection to the portal | |
| Protocol | MQTT over TLS, port 8883 |
| Broker | Frankfurt (EU) |
| Data | Ireland (EU) |
| Direction | Outbound, no port forwarding or fixed IP address needed |
| When the connection drops | Stores up to 20,000 readings with their timestamp and sends them once the connection is back. The portal accepts readings up to 7 days old. |
| Enclosure and environment | |
| Dimensions | 83 × 25 × 83 mm |
| Weight | 132 g |
| Enclosure | Anodised aluminium, IP30 |
| Temperature | −40 to 75 °C |
| Humidity | 10 to 90%, non-condensing |
| Power, certification and warranty | |
| Power supply | 9 to 57 V DC, reverse polarity protected |
| Consumption | Under 2 W, at most 3.5 W |
| Certification | CE, RED, RoHS |
| Warranty | Two-year warranty |
What's in the box?
- The gateway, with the full library installed
- The 4G antenna
- A 4G SIM card
The power supply and the DIN rail kit are sold separately.
100 days money-back guarantee
If the gateway fails to connect to a Modbus device from our template library, you get your money back.
