Janitza Modbus templates
All 11 available Janitza templates for ModbusCloud.
Monitor Janitza UMG power-quality analyzers and multifunctional energy meters via Modbus TCP from your portal.
- Templates
- 11
- Connection
- Modbus RTU and TCP
- Registers
- 3 to 1118 per template
- Compatible models
- UMG-96 · UMG 806 · UMG 806-EC1 · UMG 509-PRO · UMG 96-PA · UMG 96-PA-MID · UMG 96-PA-MID+
- Last updated
Janitza templates
7 via Modbus RTU, 4 via Modbus TCP
- Janitza UMG-96 Modbus TCPMonitors power quality and energy consumption via Modbus TCP on a Janitza UMG-96 meter.Modbus TCP14 read, 0 write
Janitza UMG 806-EC1 Modbus TCPMonitors energy quantities via a multifunctional energy analyzer over Modbus TCP.Modbus TCP14 read, 0 write

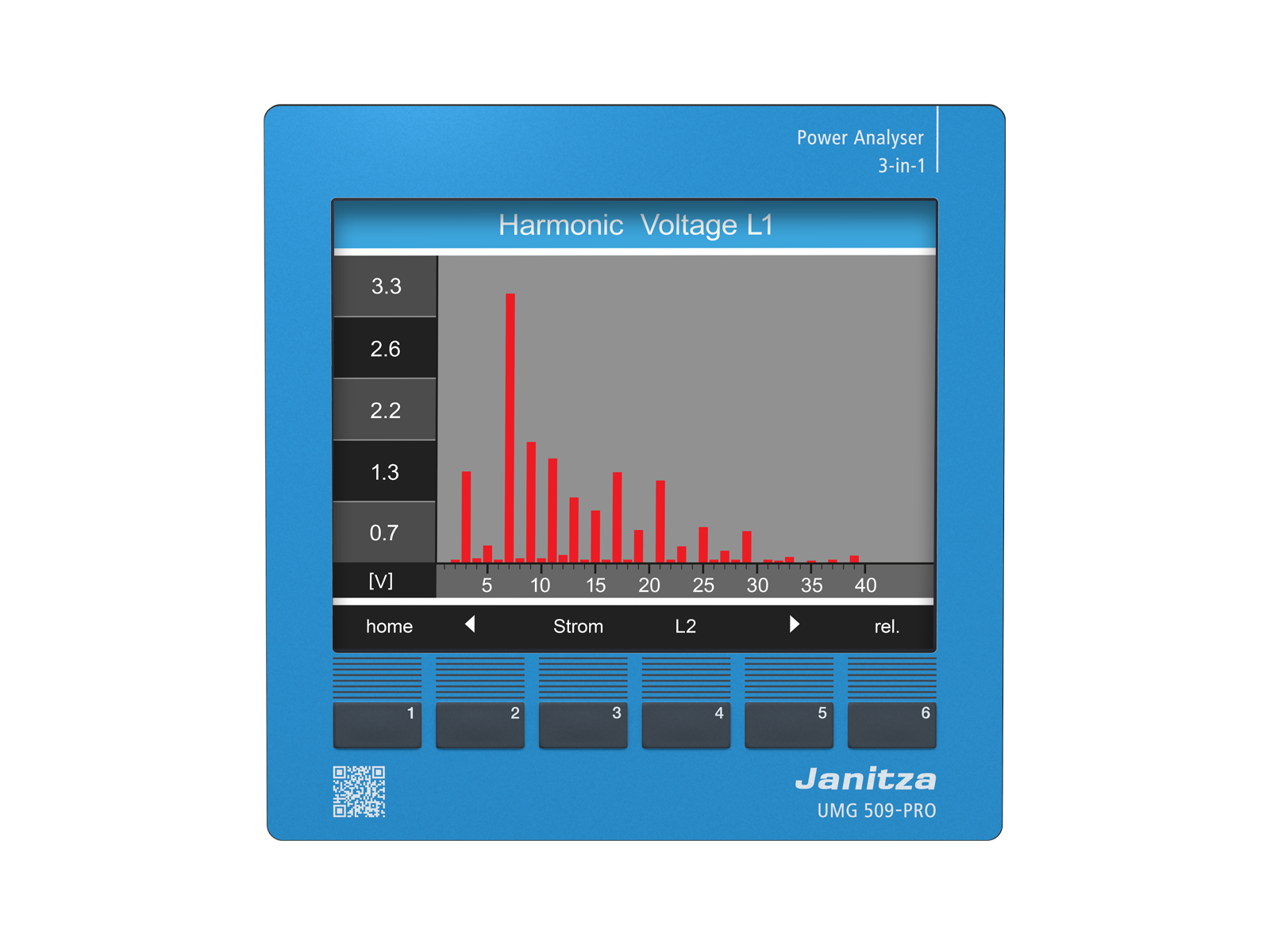

Janitza UMG 509-PROPower quality analyser for voltage, current, power, energy and harmonics on four channels.Modbus RTU915 read, 168 write

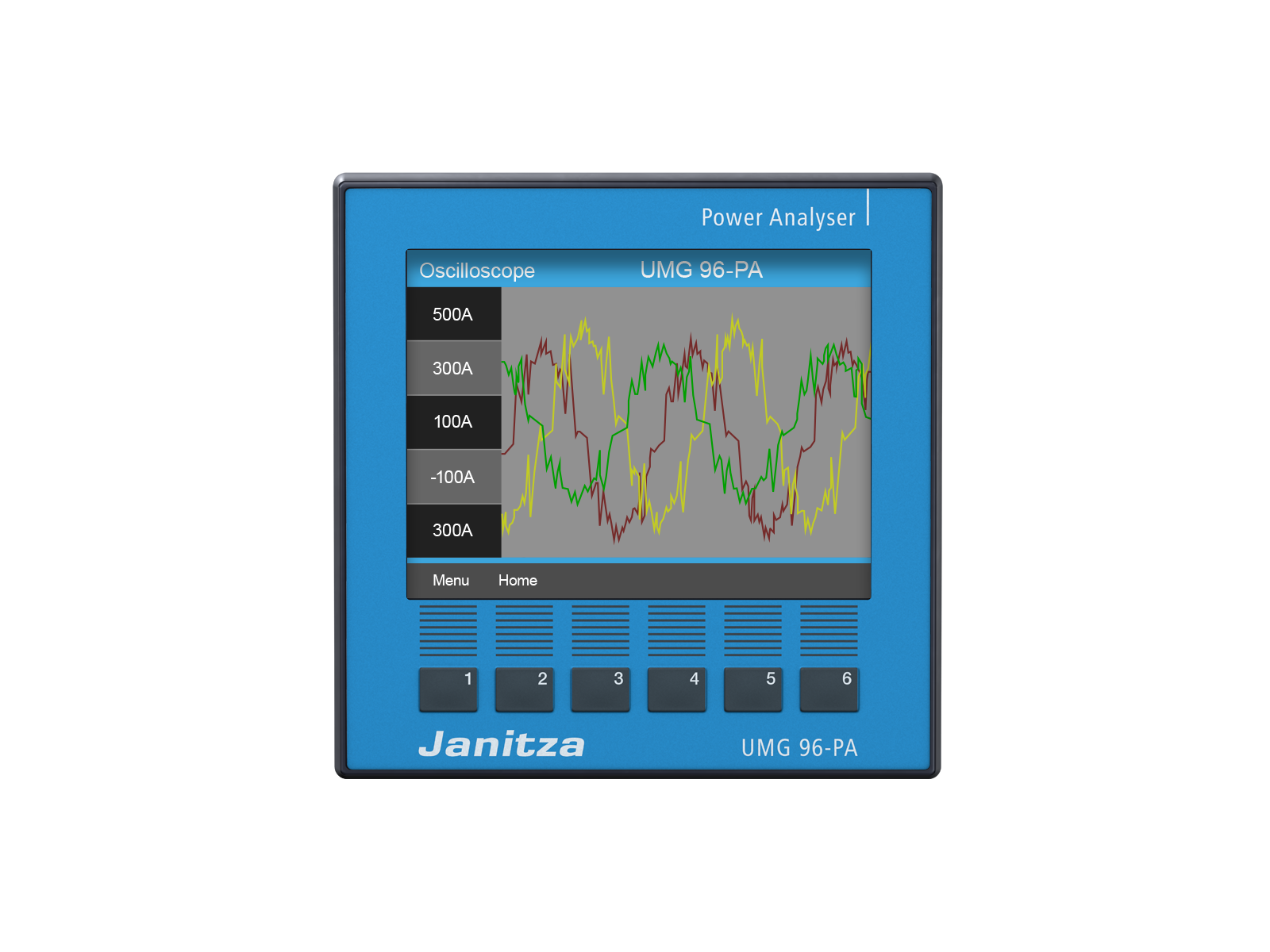

Janitza UMG 96-PAPower analyzer for distribution boards: voltage, current, power, energy and power quality per phase.Modbus RTU1118 read, 62 write
Janitza UMG 96-PA HarmonicsHarmonic analysis of the UMG 96-PA: odd voltage and current harmonics up to the 25th per phase.Modbus RTU546 read, 0 write

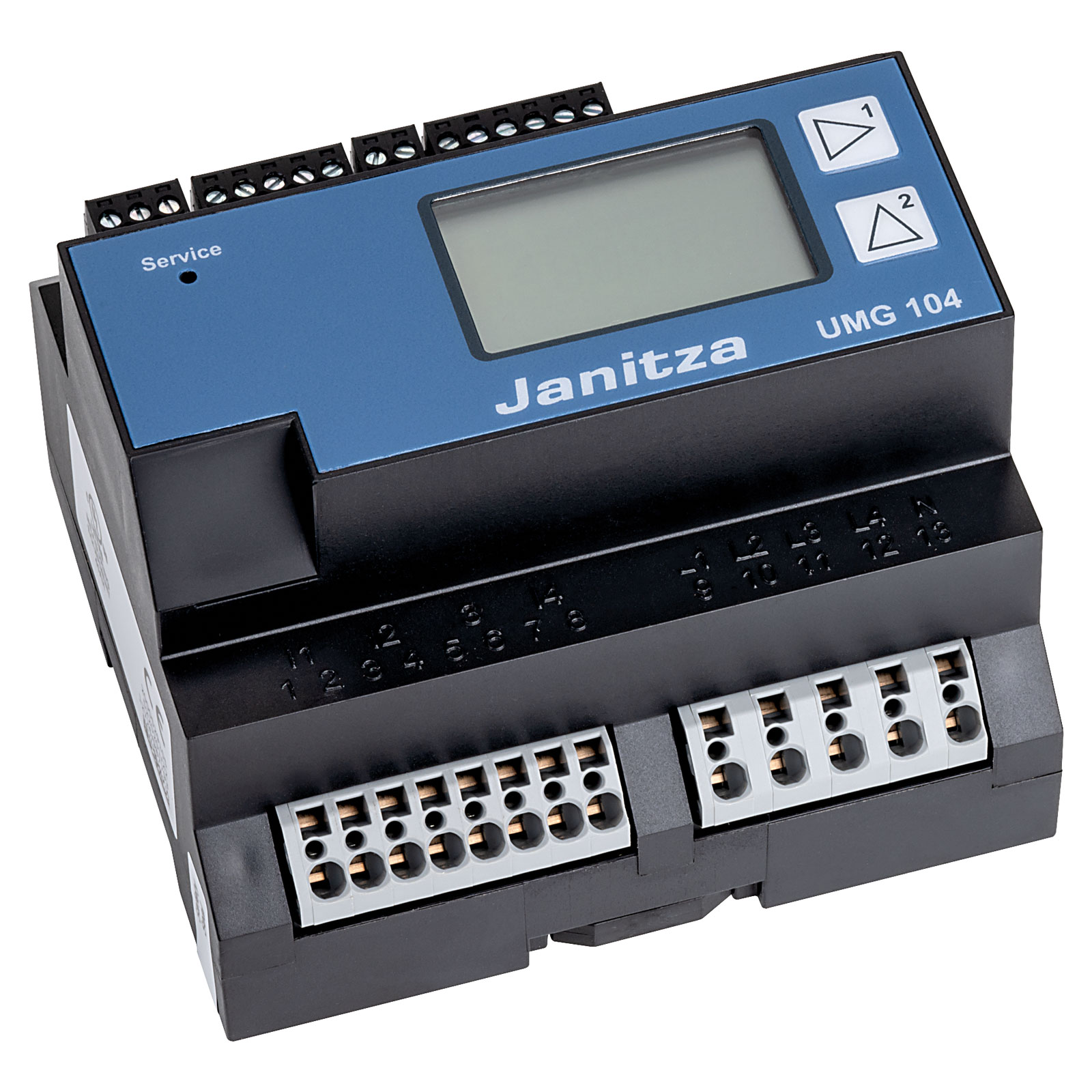

Janitza UMG104Modbus RTU19 read, 0 write

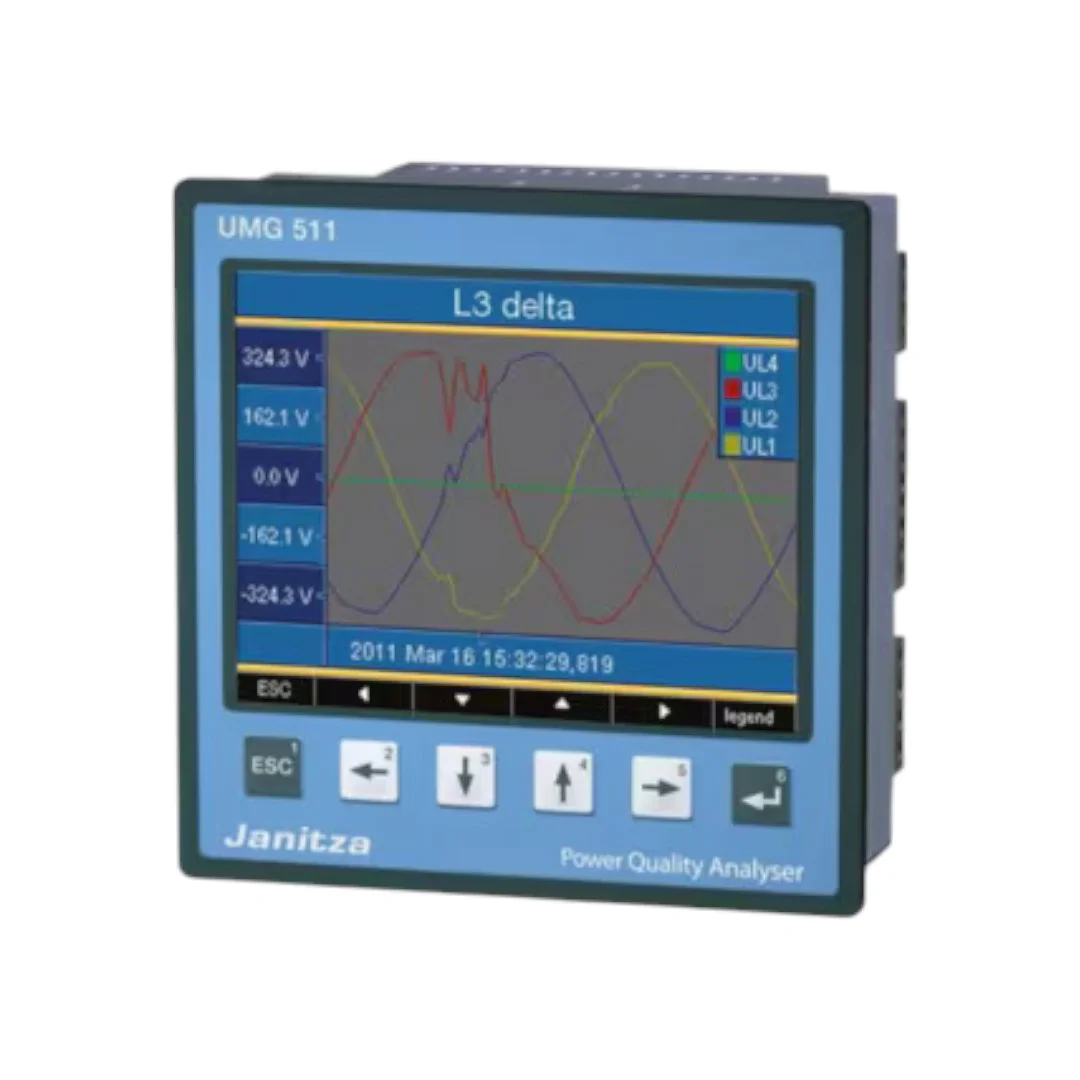

Janitza UMG511Modbus RTU17 read, 0 write

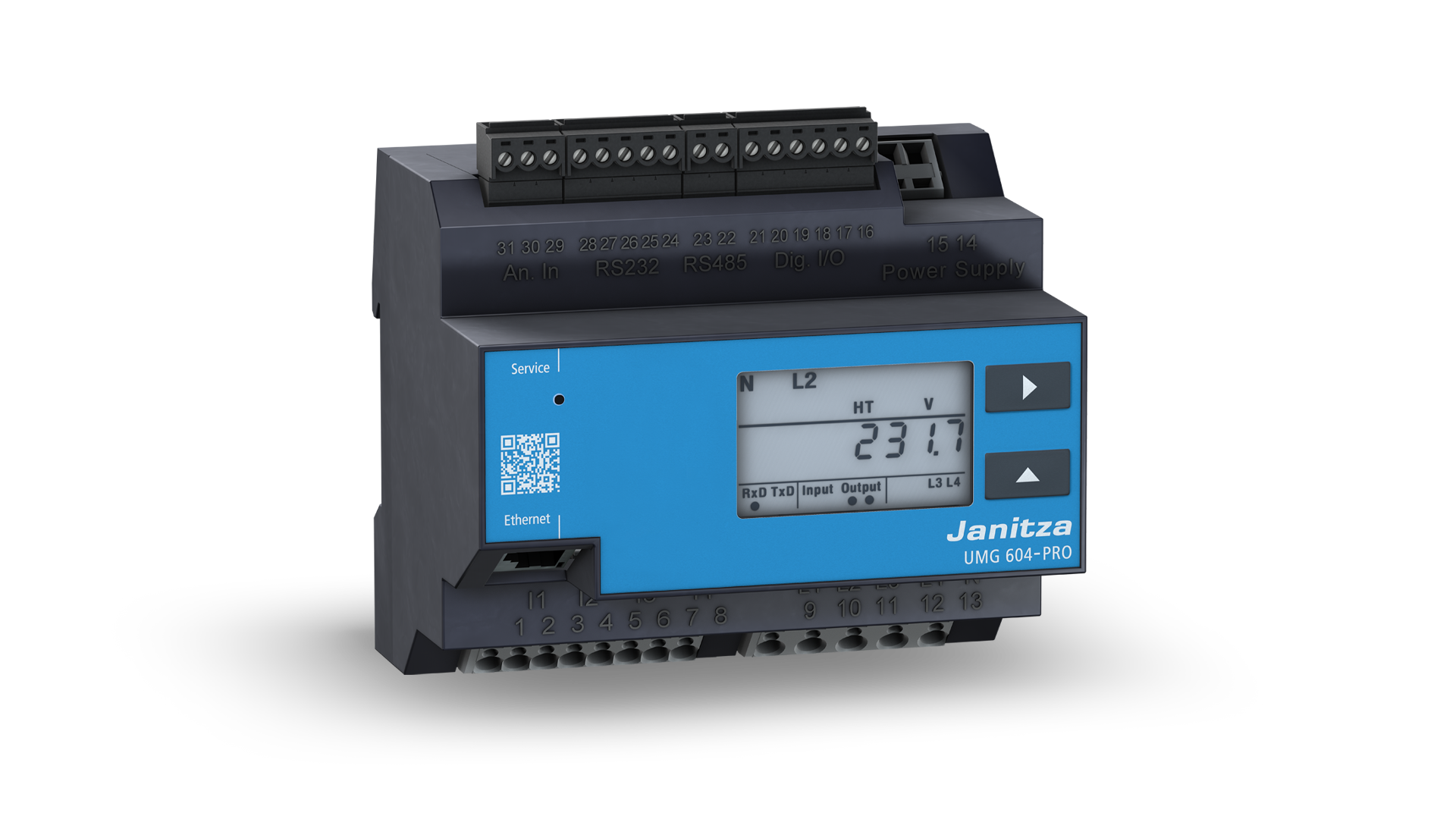

Janitza UMG604Modbus TCP17 read, 0 write

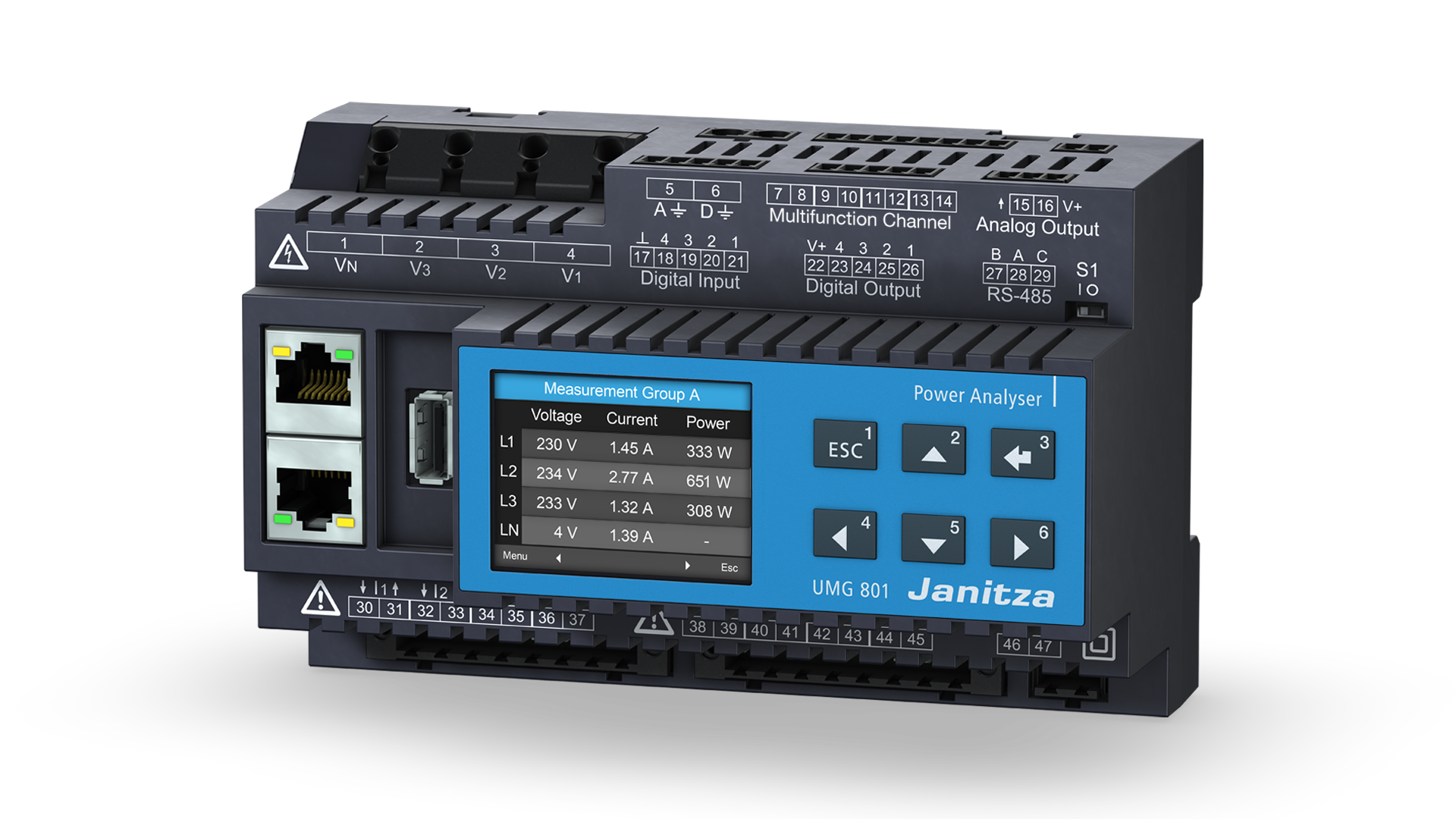

Janitza UMG801Modbus TCP3 read, 0 write

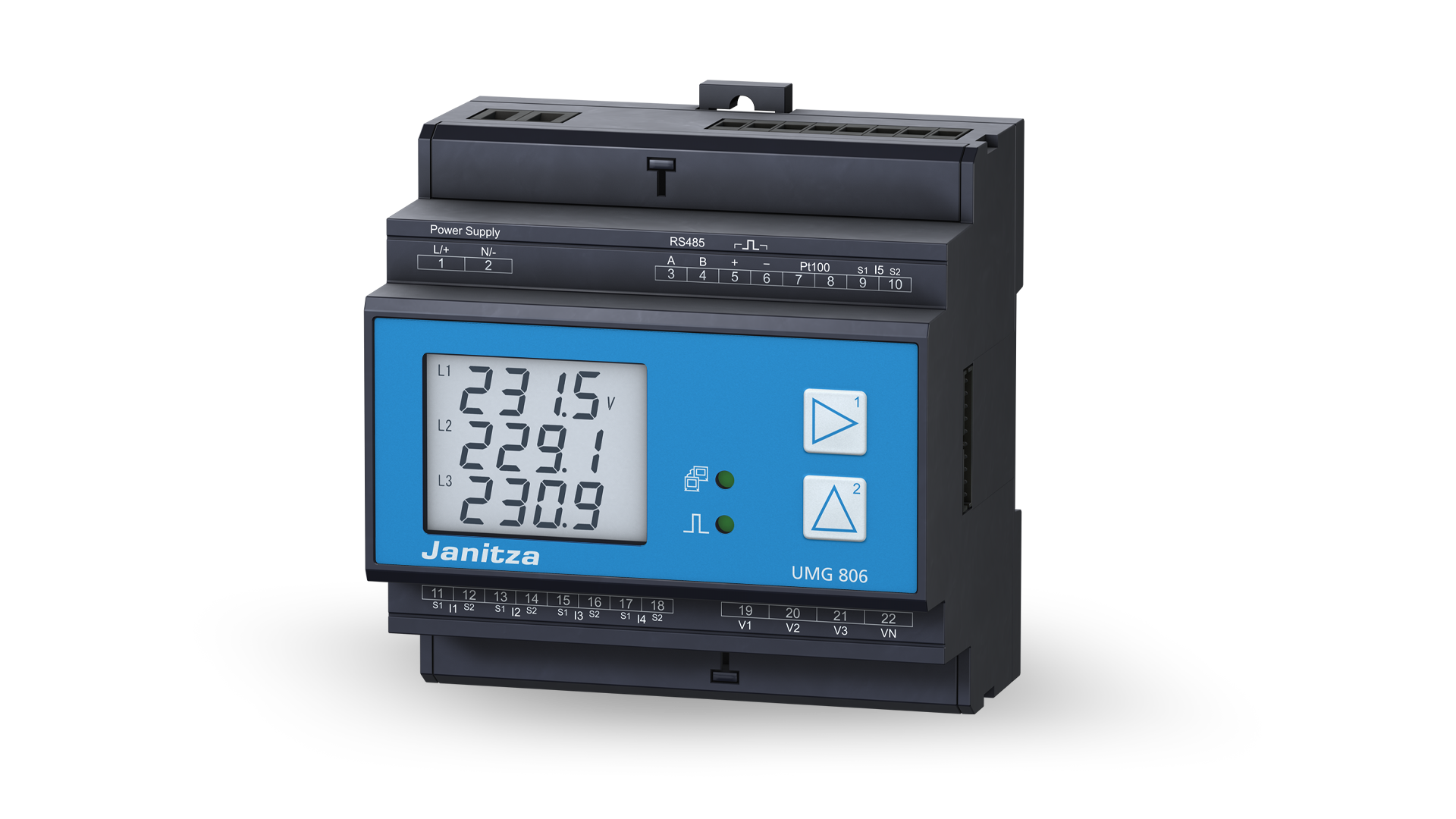

Janitza UMG806Modbus RTU17 read, 0 write
Janitza UMG96RMEModbus RTU18 read, 0 write
The scan recognises these devices
Connect them to RS485 or the network and start a scan in the portal.
Gateway
Portal
Incl. 4G data up to 30 MB per month
Excl. VAT. White label customer portal included. All prices
Order your first gateway100-day money-back guaranteeIf the gateway fails to connect to a Modbus device from our template library, you get your money back.
Janitza builds multifunctional energy analyzers and power-quality meters — the UMG-96, UMG 806-EC1, UMG801, UMG806, UMG96RME, UMG104, UMG511, and UMG604. They sit in main distribution boards and sub-panels where facility managers, industrial electricians, and building owners need more than a simple kWh reading: voltage quality, harmonics, phase balance, and sub-metering per feeder. If you design or maintain electrical infrastructure in factories, offices, or data rooms, a UMG is often already on the rail.
Modbuscloud ships eight Janitza templates covering the UMG analyzer range over Modbus TCP. Each one maps the register tables so you can pull phase voltages and currents, active and reactive power, power factor, frequency, total energy, and power-quality indicators into your dashboard. The ModbusCloud Gateway sits on the same network as the meter, and the template takes care of the register layout — no PDF lookup, no manual scaling.
All eight Janitza templates are free to browse. Import one into your Janitza estate and read live values within minutes.
What you can read out
- Phase voltages and currents
- Active and reactive power
- Power factor and frequency
- Total and per-feeder energy consumption
- Power-quality indicators
Typical installations
- Main distribution boards in factories with per-feeder energy sub-metering
- Office and retail buildings where facility teams track power quality
- Data-room and utility panels with Janitza UMG meters on Modbus TCP
