ABB Modbus templates
All 14 available ABB templates for ModbusCloud.
- Templates
- 14
- Connection
- Modbus RTU
- Registers
- 11 to 1491 per template
- Compatible models
- ABB B23 · ABB Terra AC · ACH580-01 · ACH580-04 · ACH580-07 · ACH580-31 · ACH580-34 · ACQ580 · ABB ACQ580-01 · ABB ACQ580-31 · ABB ACQ580-34 · ACS310-01E · ACS310-01U · ACS310-03E · ACS310-03U · ACS355-01E · ACS355-03E · ACS355-01U · ACS355-03U · ACS480-04 · ACS580-01 · ACS580-04 · ACS580-07 · ACS880 single drives with primary control program 3.1x or later (embedded fieldbus on XD2D) · ACS880 single drives with primary control program 3.1x or later, with FIO-01, FIO-11, FDIO-01, FAIO-01, FEN-xx or FDCO/RDCO options · M4M 30 Modbus · M4M 30 I/O · M4M 30 Rogowski · M4M 30 Ethernet · PSTX30 to PSTX1250 softstarters with built-in Modbus RTU · UMC100.3 with MRP31.0 · WaterMaster FEX100-MB · WaterMaster FEV11 · WaterMaster FEV12 · WaterMaster FEW11 · WaterMaster FEW12 · WaterMaster FEW31 · WaterMaster FEW32 · WaterMaster FEF12 · WaterMaster FER111 · WaterMaster FER121 · WaterMaster FET10 · WaterMaster FET12
- Last updated
ABB templates
14 via Modbus RTU
Energy meter ABB B23Reads energy values from a 3-phase ABB B23 energy meter via Modbus RTU.Modbus RTU13 read, 0 write
ABB Terra ACMonitors and controls ABB Terra AC Wallbox charging via Modbus RTUModbus RTU9 read, 2 write
ABB ACH580HVAC frequency converter for fans and pumps with speed, power, energy, faults and all parameters over Modbus RTU.Modbus RTU1491 read, 1202 write

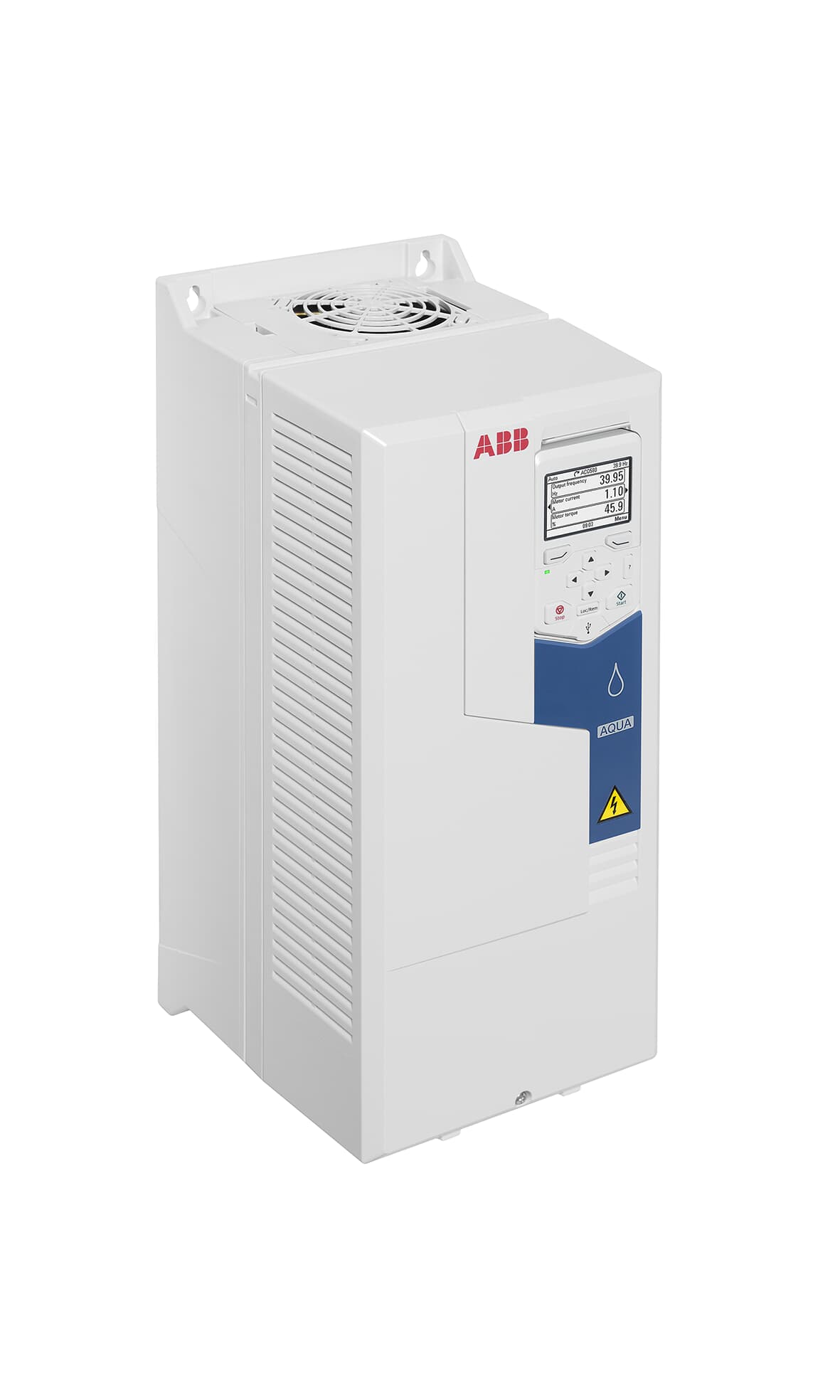

ABB ACQ580Pump drive for water and wastewater with speed, power, energy, faults and all pump control parameters.Modbus RTU1271 read, 1036 write

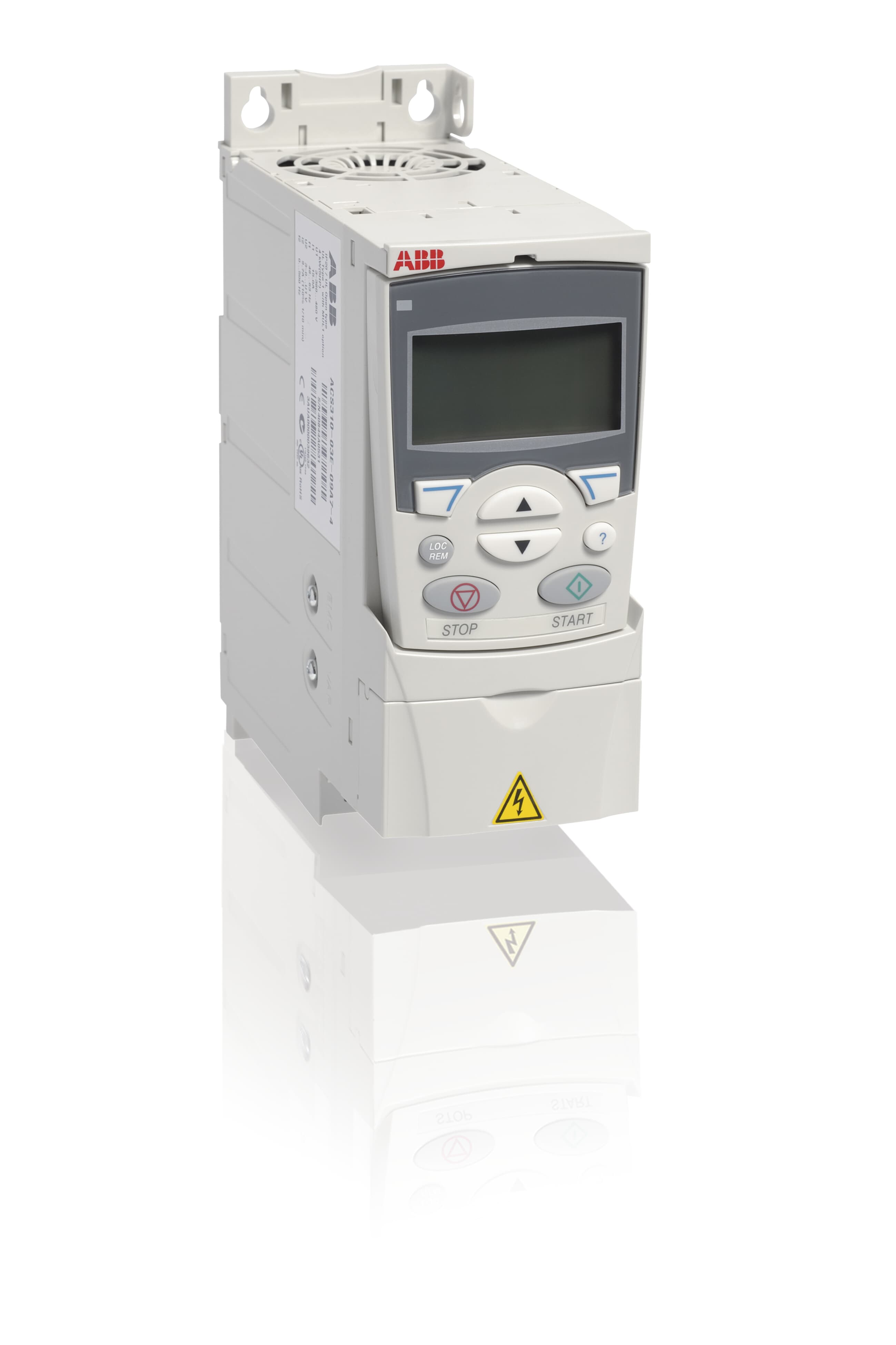

ABB ACS310Pump and fan frequency converter with built-in PID and multi-pump control, over embedded Modbus RTU.Modbus RTU639 read, 515 write

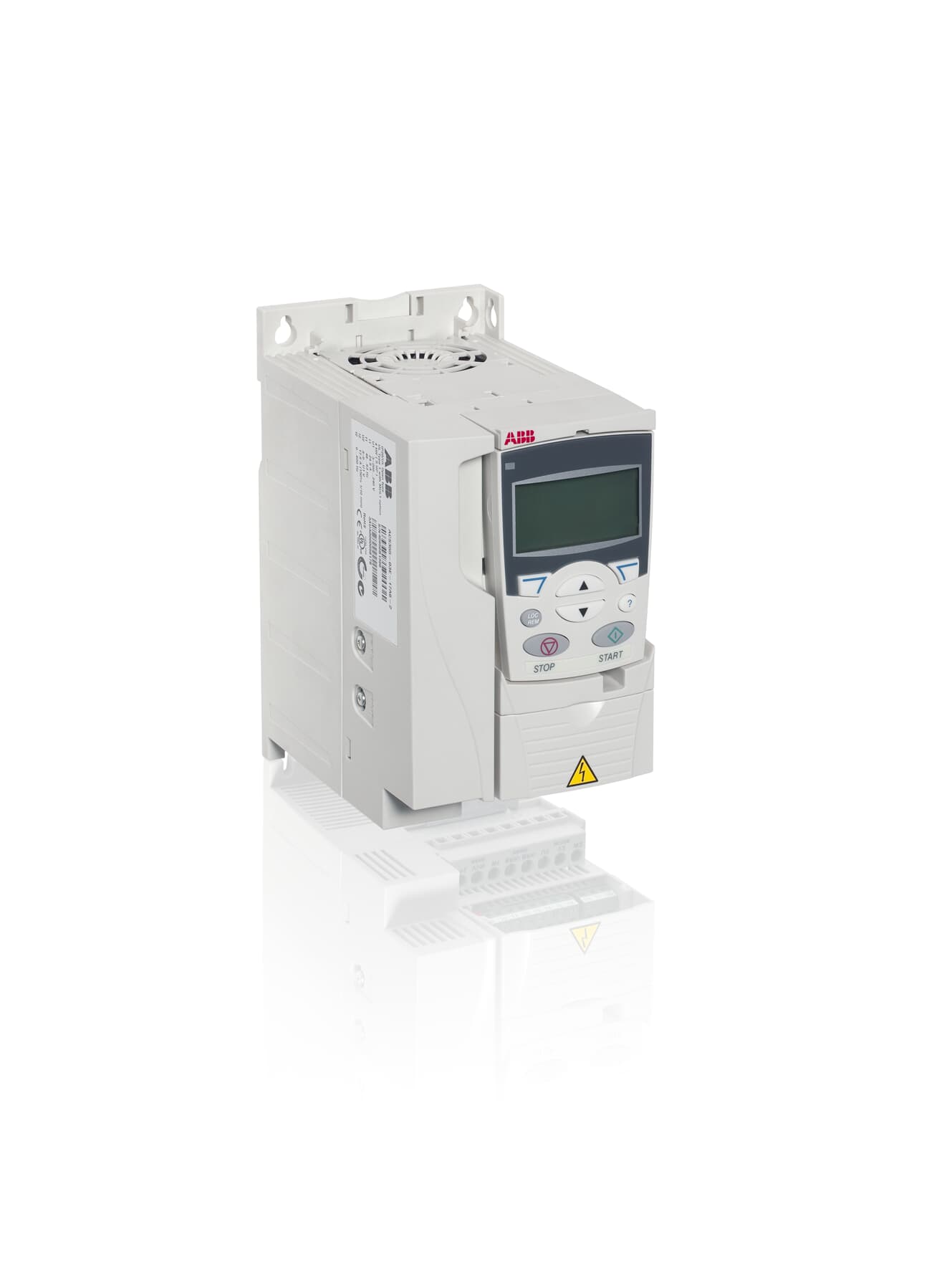

ABB ACS355Compact frequency converter: speed, current, power and faults, with control word and all parameters.Modbus RTU623 read, 524 write

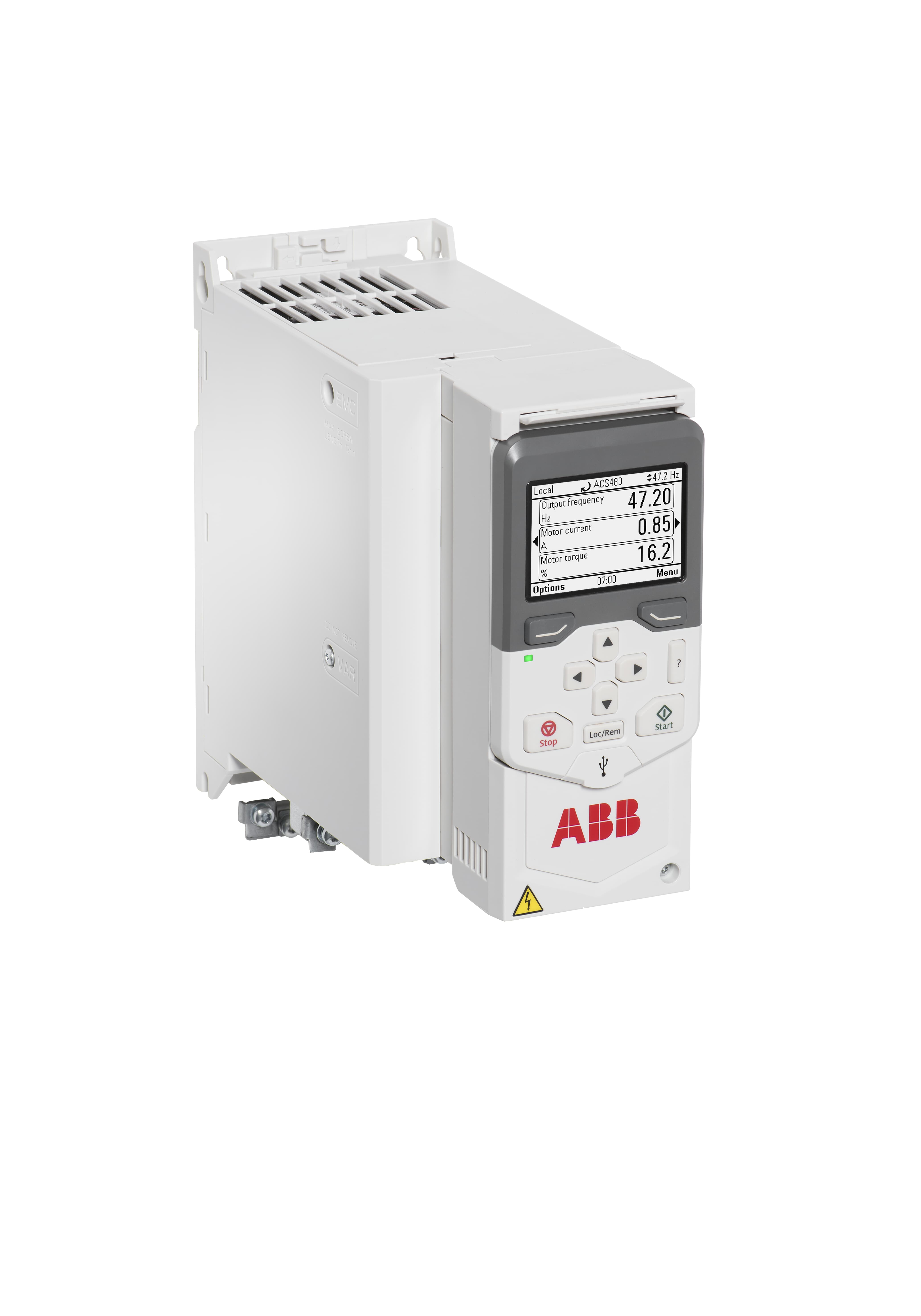

ABB ACS480Compact frequency converter: motor readings, energy, faults, start and stop, speed reference and settings.Modbus RTU1181 read, 962 write
ABB ACS580General purpose frequency converter: motor readings, energy, faults, start and stop, speed reference and settings.Modbus RTU978 read, 789 write

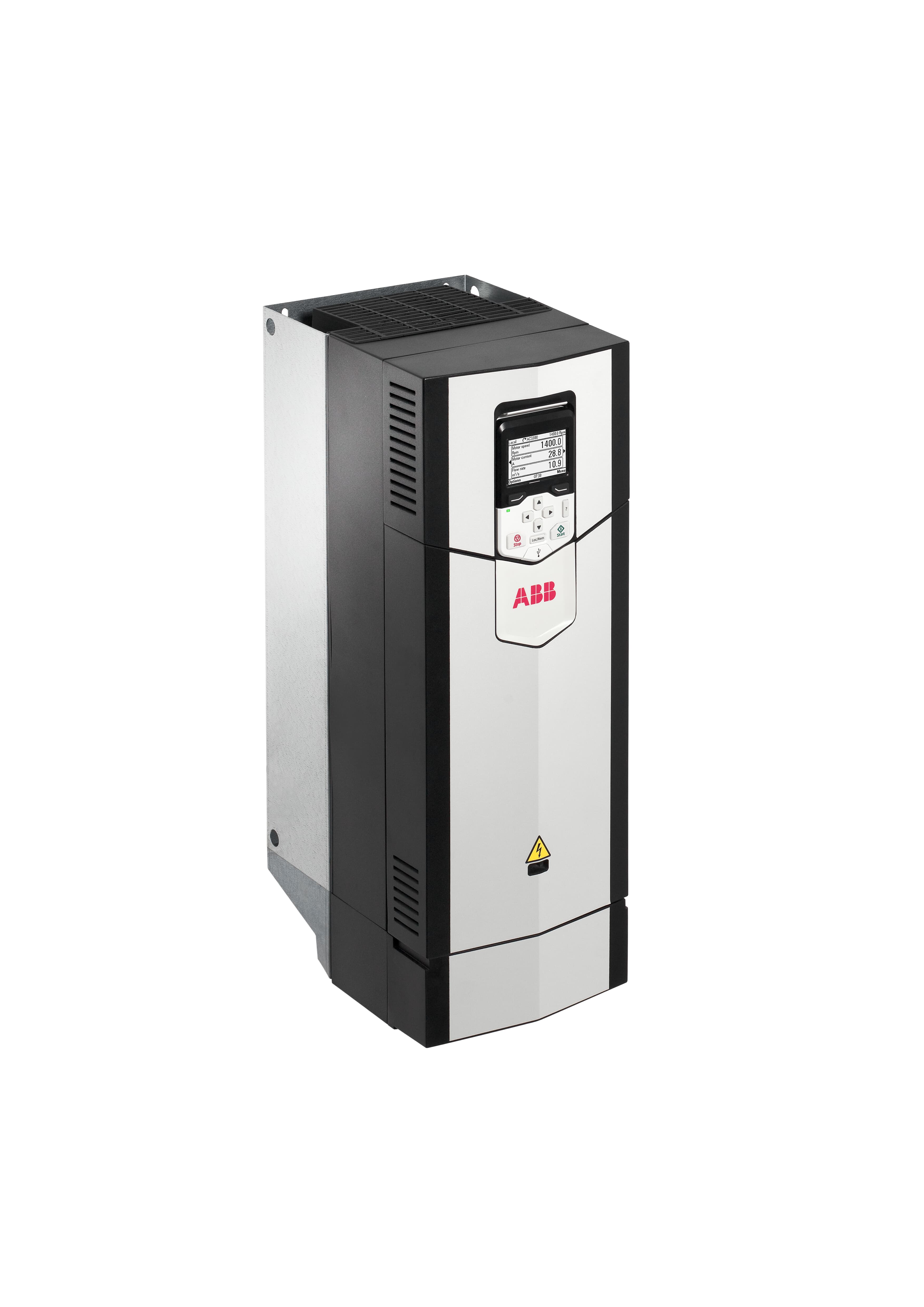

ABB ACS880Industrial frequency converter: speed, current, power, faults, control word and drive parameters over Modbus RTU.Modbus RTU1386 read, 1053 write
ABB ACS880 Option ModulesOption module parameters of the ABB ACS880: extra I/O, master/follower link and encoder interfaces.Modbus RTU436 read, 374 write
ABB M4M 30Network analyzer for switchboards: voltage, current, power, energy and harmonics per phase.Modbus RTU876 read, 102 write

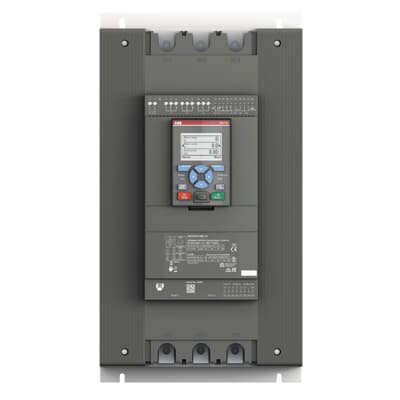

ABB PSTXSoftstarter for three-phase motors: start and stop, currents, temperatures and protection events.Modbus RTU28 read, 32 write
ABB UMC100.3Motor controller for MCCs: motor current, thermal load, trips and run commands.Modbus RTU26 read, 20 write

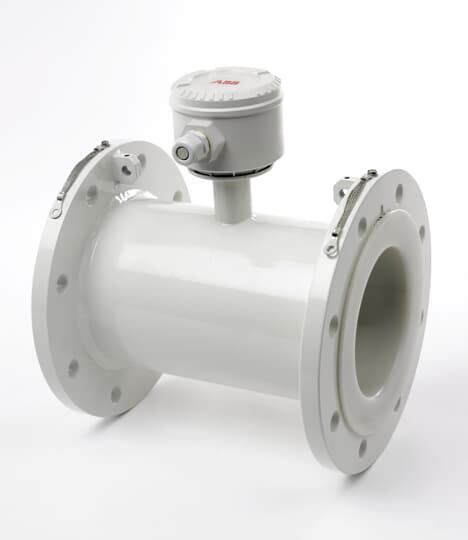

ABB WaterMasterElectromagnetic water flowmeter with flow, forward and reverse totals, alarms and diagnostics.Modbus RTU407 read, 89 write
The scan recognises these devices
Connect them to RS485 or the network and start a scan in the portal.
Gateway
€295one-off
Portal
€149per year
Incl. 4G data up to 30 MB per month
€495one-off
Excl. VAT. White label customer portal included. All prices
Order your first gateway100-day money-back guaranteeIf the gateway fails to connect to a Modbus device from our template library, you get your money back.
