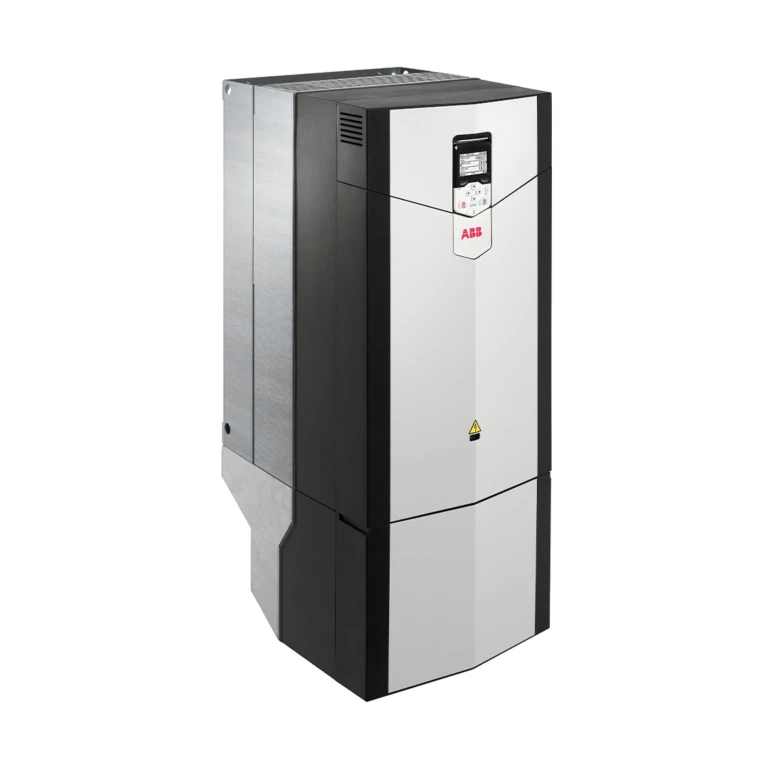

ABB ACS880
Industrial frequency converter: speed, current, power, faults, control word and drive parameters over Modbus RTU.
The ABB ACS880 is an industrial frequency converter that controls motors for pumps, fans, compressors, conveyors and other heavy machinery. This Modbus RTU template reads speed, current, torque, power, energy, temperatures and fault codes, and lets you write the control word, references, limits, ramps and other drive parameters from ModbusCloud.
- Protocol
- Modbus RTU
- Connection
- RS485, 19200 baud
- Registers
- 1386, read and write
- Brand
- ABB
- Key readings
- Motor speed · Output frequency · Motor current · Motor torque · Output power · DC link voltage · Energy counters · Fault and warning codes
- Available commands
- Control word · Speed or frequency reference · Fault reset · Speed limits and ramps · Process PID setpoints · Motor data
- Compatible models
- ACS880 single drives with primary control program 3.1x or later (embedded fieldbus on XD2D)
- Last updated
Registers (1386)
1386 read, 1053 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Motor Speed | rpm | Read | 20201 | FC03 | int32 |
| Output Frequency | Hz | Read | 20211 | FC03 | int32 |
| Motor Current | A | Read | 20213 | FC03 | int32 |
| Motor Current Percent | % | Read | 20215 | FC03 | int32 |
| Motor Torque | % | Read | 20219 | FC03 | int32 |
| DC Voltage | V | Read | |||
| Output Voltage | V | Read | |||
| Output Power | kW | Read | |||
| Output Power Percent | % | Read | |||
| Motor Shaft Power | kW | Read | |||
| Inverter Energy Motoring GWh | MWh | Read | |||
| Inverter Energy Motoring MWh | MWh | Read | |||
| Inverter Energy Motoring kWh | kWh | Read | |||
| Power Factor | Read | ||||
| Inverter Temperature | % | Read | |||
| Tripping Fault | Read | ||||
| Active Fault 2 | Read | ||||
| Active Fault 3 | Read | ||||
| Active Fault 4 | Read | ||||
| Active Fault 5 | Read | ||||
| Active Warning 1 | Read | ||||
| Latest Fault | Read | ||||
| Latest Warning | Read | ||||
| On-Time Counter | d | Read | |||
| Run-Time Counter | d | Read | |||
| Fan On-Time Counter | d | Read | |||
| Motor Speed Estimated | rpm | Read | |||
| Motor Speed % | % | Read | |||
| Encoder 1 Speed Filtered | rpm | Read | |||
| Encoder 2 Speed Filtered | rpm | Read | |||
| U-phase Current | A | Read | |||
| V-phase Current | A | Read | |||
| W-phase Current | A | Read | |||
| Flux Actual % | % | Read | |||
| Speed Change Rate | Read | ||||
| Nominal Torque Scale | Read | ||||
| Ambient Temperature | Read | ||||
| Inverter GWh Regenerating | Read | ||||
| Inverter MWh Regenerating | MWh | Read | |||
| Inverter KWh Regenerating | kWh | Read | |||
| Mot - Regen Energy GWh | Read | ||||
| Mot - Regen Energy MWh | MWh | Read | |||
| Mot - Regen Energy KWh | kWh | Read | |||
| Abs Motor Speed Used | rpm | Read | |||
| Abs Motor Speed % | % | Read | |||
| Abs Output Frequency | Hz | Read | |||
| Abs Motor Torque | % | Read | |||
| Abs Output Power | kW | Read | |||
| Abs Output Power % Motor Nom | % | Read | |||
| Abs Motor Shaft Power | kW | Read | |||
| Ambient Temperature % | % | Read | |||
| Step-up Motor Current | A | Read | |||
| U-phase RMS Current | A | Read | |||
| V-phase RMS Current | A | Read | |||
| W-phase RMS Current | A | Read | |||
| Active Warning 2 | Read | ||||
| Active Warning 3 | Read | ||||
| Active Warning 4 | Read | ||||
| Active Warning 5 | Read | ||||
| 2nd Latest Fault | Read | ||||
| 3rd Latest Fault | Read | ||||
| 4th Latest Fault | Read | ||||
| 5th Latest Fault | Read | ||||
| 2nd Latest Warning | Read | ||||
| 3rd Latest Warning | Read | ||||
| 4th Latest Warning | Read | ||||
| 5th Latest Warning | Read | ||||
| Fault Word 1 | Read | ||||
| Fault Word 2 | Read | ||||
| Faulted Modules | Read | ||||
| Warning Word 1 | Read | ||||
| Warning Word 2 | Read | ||||
| Event Word 1 | Read | ||||
| Event Word 1 Bit 0 Code | Read | ||||
| Event Word 1 Bit 0 Aux Code | Read | ||||
| Event Word 1 Bit 1 Code | Read | ||||
| Event Word 1 Bit 1 Aux Code | Read | ||||
| Event Word 1 Bit 2 Code | Read | ||||
| Event Word 1 Bit 2 Aux Code | Read | ||||
| Event Word 1 Bit 3 Code | Read | ||||
| Event Word 1 Bit 3 Aux Code | Read | ||||
| Event Word 1 Bit 4 Code | Read | ||||
| Event Word 1 Bit 4 Aux Code | Read | ||||
| Event Word 1 Bit 5 Code | Read | ||||
| Event Word 1 Bit 5 Aux Code | Read | ||||
| Event Word 1 Bit 6 Code | Read | ||||
| Event Word 1 Bit 6 Aux Code | Read | ||||
| Event Word 1 Bit 7 Code | Read | ||||
| Event Word 1 Bit 7 Aux Code | Read | ||||
| Event Word 1 Bit 8 Code | Read | ||||
| Event Word 1 Bit 8 Aux Code | Read | ||||
| Event Word 1 Bit 9 Code | Read | ||||
| Event Word 1 Bit 9 Aux Code | Read | ||||
| Event Word 1 Bit 10 Code | Read | ||||
| Event Word 1 Bit 10 Aux Code | Read | ||||
| Event Word 1 Bit 11 Code | Read | ||||
| Event Word 1 Bit 11 Aux Code | Read | ||||
| Event Word 1 Bit 12 Code | Read | ||||
| Event Word 1 Bit 12 Aux Code | Read | ||||
| Event Word 1 Bit 13 Code | Read | ||||
| Event Word 1 Bit 13 Aux Code | Read | ||||
| Event Word 1 Bit 14 Code | Read | ||||
| Event Word 1 Bit 14 Aux Code | Read | ||||
| Event Word 1 Bit 15 Code | Read | ||||
| Event Word 1 Bit 15 Aux Code | Read | ||||
| Time from Power-up | Read | ||||
| Diagnostic Word 3 | Read | ||||
| Main Fan Service Counter | % | Read | |||
| Aux. Fan Service Counter | % | Read | |||
| Main Control Word | Read | ||||
| Application Control Word | Read | ||||
| FBA A Transparent Control Word | Read | ||||
| FBA B Transparent Control Word | Read | ||||
| EFB Transparent Control Word | Read | ||||
| Main Status Word | Read | ||||
| Drive Status Word 1 | Read | ||||
| Drive Status Word 2 | Read | ||||
| Start Inhibit Status Word | Read and write | ||||
| Speed Control Status Word | Read | ||||
| Constant Speed Status Word | Read | ||||
| Drive Status Word 3 | Read | ||||
| Drive Inhibit Status Word 2 | Read | ||||
| MSW Bit 10 Sel | Read and write | ||||
| MSW Bit 11 Sel | Read and write | ||||
| MSW Bit 12 Sel | Read and write | ||||
| MSW Bit 13 Sel | Read and write | ||||
| MSW Bit 14 Sel | Read and write | ||||
| LSU Status Word | Read | ||||
| Internal State Machine LSU CW | Read | ||||
| LSU CW User Bit 0 Selection | Read and write | ||||
| LSU CW User Bit 1 Selection | Read and write | ||||
| LSU CW User Bit 2 Selection | Read and write | ||||
| LSU CW User Bit 3 Selection | Read and write | ||||
| Follower CW User Bit 0 Selection | Read and write | ||||
| Follower CW User Bit 1 Selection | Read and write | ||||
| Follower CW User Bit 2 Selection | Read and write | ||||
| Follower CW User Bit 3 Selection | Read and write | ||||
| User Status Word 1 | Read | ||||
| User Status Word 1 Bit 0 Sel | Read and write | ||||
| User Status Word 1 Bit 1 Sel | Read and write | ||||
| User Status Word 1 Bit 2 Sel | Read and write | ||||
| User Status Word 1 Bit 3 Sel | Read and write | ||||
| User Status Word 1 Bit 4 Sel | Read and write | ||||
| User Status Word 1 Bit 5 Sel | Read and write | ||||
| User Status Word 1 Bit 6 Sel | Read and write | ||||
| User Status Word 1 Bit 7 Sel | Read and write | ||||
| User Status Word 1 Bit 8 Sel | Read and write | ||||
| User Status Word 1 Bit 9 Sel | Read and write | ||||
| User Status Word 1 Bit 10 Sel | Read and write | ||||
| User Status Word 1 Bit 11 Sel | Read and write | ||||
| User Status Word 1 Bit 12 Sel | Read and write | ||||
| User Status Word 1 Bit 13 Sel | Read and write | ||||
| User Status Word 1 Bit 14 Sel | Read and write | ||||
| User Status Word 1 Bit 15 Sel | Read and write | ||||
| Modbus Control Word | Read and write | ||||
| Modbus Reference 1 | Read and write | ||||
| Modbus Reference 2 | Read and write | ||||
| Modbus Status Word | Read | ||||
| Modbus Actual Value 1 | Read | ||||
| Modbus Actual Value 2 | Read | ||||
| Modbus Data I/O 7 | Read and write | ||||
| Modbus Data I/O 8 | Read and write | ||||
| Modbus Data I/O 9 | Read and write | ||||
| Modbus Data I/O 10 | Read and write | ||||
| Modbus Data I/O 11 | Read and write | ||||
| Modbus Data I/O 12 | Read and write | ||||
| Modbus Data I/O 13 | Read and write | ||||
| Modbus Data I/O 14 | Read and write | ||||
| Modbus Data I/O 15 | Read and write | ||||
| Modbus Data I/O 16 | Read and write | ||||
| Modbus Data I/O 17 | Read and write | ||||
| Modbus Data I/O 18 | Read and write | ||||
| Modbus Data I/O 19 | Read and write | ||||
| Modbus Data I/O 20 | Read and write | ||||
| Modbus Data I/O 21 | Read and write | ||||
| Modbus Data I/O 22 | Read and write | ||||
| Modbus Data I/O 23 | Read and write | ||||
| Modbus Data I/O 24 | Read and write | ||||
| Off1 Control | Read and write | ||||
| Off2 Control | Read and write | ||||
| Off3 Control | Read and write | ||||
| Inhibit Operation | Read and write | ||||
| Ramp Out Zero | Read and write | ||||
| Ramp Hold | Read and write | ||||
| Ramp In Zero | Read and write | ||||
| Reset | Read and write | ||||
| Jogging 1 | Read and write | ||||
| Jogging 2 | Read and write | ||||
| Remote Command | Read and write | ||||
| External Control Location | Read and write | ||||
| Control Word User Bit 12 | Read and write | ||||
| Control Word User Bit 13 | Read and write | ||||
| Control Word User Bit 14 | Read and write | ||||
| Control Word User Bit 15 | Read and write | ||||
| RO/DIO Control Word Bit 0 | Read and write | ||||
| RO/DIO Control Word Bit 1 | Read and write | ||||
| RO/DIO Control Word Bit 2 | Read and write | ||||
| RO/DIO Control Word Bit 3 | Read and write | ||||
| RO/DIO Control Word Bit 4 | Read and write | ||||
| RO/DIO Control Word Bit 5 | Read and write | ||||
| RO/DIO Control Word Bit 6 | Read and write | ||||
| RO/DIO Control Word Bit 7 | Read and write | ||||
| RO/DIO Control Word Bit 8 | Read and write | ||||
| RO/DIO Control Word Bit 9 | Read and write | ||||
| Ready On | Read | ||||
| Ready Run | Read | ||||
| Ready Reference | Read | ||||
| Tripped | Read | ||||
| Off2 Inactive | Read | ||||
| Off3 Inactive | Read | ||||
| Switch-On Inhibited | Read | ||||
| Warning Active | Read | ||||
| At Setpoint | Read | ||||
| Remote | Read | ||||
| Above Limit | Read | ||||
| Status Word User Bit 11 | Read | ||||
| Status Word User Bit 12 | Read | ||||
| Status Word User Bit 13 | Read | ||||
| Status Word User Bit 14 | Read | ||||
| DI Delayed Status Bit 0 | Read | ||||
| DI Delayed Status Bit 1 | Read | ||||
| DI Delayed Status Bit 2 | Read | ||||
| DI Delayed Status Bit 3 | Read | ||||
| DI Delayed Status Bit 4 | Read | ||||
| DI Delayed Status Bit 5 | Read | ||||
| DI Delayed Status Bit 6 | Read | ||||
| DI Delayed Status Bit 7 | Read | ||||
| DI Delayed Status Bit 8 | Read | ||||
| DI Delayed Status Bit 9 | Read | ||||
| DI Delayed Status Bit 10 | Read | ||||
| DI Delayed Status Bit 11 | Read | ||||
| DI Delayed Status Bit 12 | Read | ||||
| DI Delayed Status Bit 13 | Read | ||||
| DI Delayed Status Bit 14 | Read | ||||
| DI Delayed Status Bit 15 | Read | ||||
| Panel Reference | Read | ||||
| Panel Reference 2 | Read | ||||
| FB A Reference 1 | Read | ||||
| FB A Reference 2 | Read | ||||
| FB B Reference 1 | Read | ||||
| FB B Reference 2 | Read | ||||
| EFB Reference 1 | Read | ||||
| EFB Reference 2 | Read | ||||
| DDCS Controller Ref 1 | Read | ||||
| DDCS Controller Ref 2 | Read | ||||
| M/F or D2D Ref1 | Read | ||||
| M/F or D2D Ref2 | Read | ||||
| FB A Reference 1 Int32 | Read | ||||
| FB A Reference 2 Int32 | Read | ||||
| IEC Application Panel Reference | Read | ||||
| DI Status | Read | ||||
| DI Delayed Status | Read | ||||
| DI Force Selection | Read and write | ||||
| DI Force Data | Read and write | ||||
| DI1 ON Delay | s | Read and write | |||
| DI1 OFF Delay | s | Read and write | |||
| DI2 ON Delay | s | Read and write | |||
| DI2 OFF Delay | s | Read and write | |||
| DI3 ON Delay | s | Read and write | |||
| DI3 OFF Delay | s | Read and write | |||
| DI4 ON Delay | s | Read and write | |||
| DI4 OFF Delay | s | Read and write | |||
| DI5 ON Delay | s | Read and write | |||
| DI5 OFF Delay | s | Read and write | |||
| DI6 ON Delay | s | Read and write | |||
| DI6 OFF Delay | s | Read and write | |||
| RO Status | Read and write | ||||
| RO1 Source | Read and write | ||||
| RO1 ON Delay | s | Read and write | |||
| RO1 OFF Delay | s | Read and write | |||
| RO2 Source | Read and write | ||||
| RO2 ON Delay | s | Read and write | |||
| RO2 OFF Delay | s | Read and write | |||
| RO3 Source | Read and write | ||||
| RO3 ON Delay | s | Read and write | |||
| RO3 OFF Delay | s | Read and write | |||
| DI Filter Time | ms | Read and write | |||
| RO/DIO Control Word | Read and write | ||||
| DIO Status | Read | ||||
| DIO Delayed Status | Read | ||||
| DIO1 Function | Read and write | ||||
| DIO1 Output Source | Read and write | ||||
| DIO1 ON Delay | s | Read and write | |||
| DIO1 OFF Delay | s | Read and write | |||
| DIO2 Function | Read and write | ||||
| DIO2 Output Source | Read and write | ||||
| DIO2 ON Delay | s | Read and write | |||
| DIO2 OFF Delay | s | Read and write | |||
| Freq in 1 Actual Value | Hz | Read and write | |||
| Freq in 1 Scaled | Read | ||||
| Freq in 1 Min | Hz | Read | |||
| Freq in 1 Max | Hz | Read and write | |||
| Freq in 1 at Scaled Min | Read and write | ||||
| Freq in 1 at Scaled Max | Read and write | ||||
| Freq Out 1 Actual Value | Hz | Read | |||
| Freq Out 1 Source | Read and write | ||||
| Freq Out 1 Src Min | Read and write | ||||
| Freq Out 1 Src Max | Read and write | ||||
| Freq Out 1 at Src Min | Hz | Read and write | |||
| Freq Out 1 at Src Max | Hz | Read and write | |||
| DIO Filter Time | ms | Read and write | |||
| AI Tune | Read and write | ||||
| AI Supervision Function | Read and write | ||||
| AI Supervision Selection | Read and write | ||||
| AI Supervision Force | Read and write | ||||
| AI1 Actual Value | Read | ||||
| AI1 Scaled Value | Read | ||||
| AI1 Unit Selection | Read and write | ||||
| AI1 Filter Time | s | Read and write | |||
| AI1 Min | Read and write | ||||
| AI1 Max | Read and write | ||||
| AI1 Scaled at AI1 Min | Read and write | ||||
| AI1 Scaled at AI1 Max | Read and write | ||||
| AI2 Actual Value | Read | ||||
| AI2 Scaled Value | Read | ||||
| AI2 Unit Selection | Read and write | ||||
| AI2 Filter Time | s | Read and write | |||
| AI2 Min | Read and write | ||||
| AI2 Max | Read and write | ||||
| AI2 Scaled at AI2 Min | Read and write | ||||
| AI2 Scaled at AI2 Max | Read and write | ||||
| AO1 Actual Value | mA | Read | |||
| AO1 Source | Read and write | ||||
| AO1 Filter Time | s | Read and write | |||
| AO1 Source Min | Read and write | ||||
| AO1 Source Max | Read and write | ||||
| AO1 Out at AO1 Src Min | mA | Read and write | |||
| AO1 Out at AO1 Src Max | mA | Read and write | |||
| AO2 Actual Value | mA | Read | |||
| AO2 Source | Read and write | ||||
| AO2 Filter Time | s | Read and write | |||
| AO2 Source Min | Read and write | ||||
| AO2 Source Max | Read and write | ||||
| AO2 Out at AO2 Src Min | mA | Read and write | |||
| AO2 Out at AO2 Src Max | mA | Read and write | |||
| AO1 Data Storage | Read and write | ||||
| AO2 Data Storage | Read and write | ||||
| Actual Operation Mode | Read | ||||
| Ext1/Ext2 Selection | Read and write | ||||
| Ext1 Control Mode | Read and write | ||||
| Ext2 Control Mode | Read and write | ||||
| Local Control Mode | Read and write | ||||
| Local Control Disable | Read and write | ||||
| Scalar Control Reference Unit | Read and write | ||||
| Ext1 Commands | Read and write | ||||
| Ext1 Start Trigger Type | Read and write | ||||
| Ext1 In1 Source | Read and write | ||||
| Ext1 In2 Source | Read and write | ||||
| Ext1 In3 Source | Read and write | ||||
| Ext2 Commands | Read and write | ||||
| Ext2 Start Trigger Type | Read and write | ||||
| Ext2 In1 Source | Read and write | ||||
| Ext2 In2 Source | Read and write | ||||
| Ext2 In3 Source | Read and write | ||||
| Run Enable Stop Mode | Read and write | ||||
| Run Enable 1 Source | Read and write | ||||
| Enable Start Command | Read and write | ||||
| Positive Speed Enable | Read and write | ||||
| Negative Speed Enable | Read and write | ||||
| Jogging Enable | Read and write | ||||
| Jogging 1 Start Source | Read and write | ||||
| Jogging 2 Start Source | Read and write | ||||
| Local Start Trigger Type | Read and write | ||||
| Enable Signals Warning Function | Read and write | ||||
| Start Mode | Read and write | ||||
| Magnetization Time | ms | Read and write | |||
| Stop Mode | Read and write | ||||
| Emergency Stop Mode | Read and write | ||||
| Emergency Stop Source | Read and write | ||||
| Zero Speed Limit | rpm | Read and write | |||
| Zero Speed Delay | ms | Read and write | |||
| DC Current Control | Read and write | ||||
| DC Hold Speed | rpm | Read and write | |||
| DC Current Reference | % | Read and write | |||
| Post Magnetization Time | s | Read and write | |||
| Continuous Magnetization Command | Read and write | ||||
| Autophasing Mode | Read and write | ||||
| Pre-heating Input Source | Read and write | ||||
| Pre-heating Current | % | Read and write | |||
| Auto Restart Time | s | Read and write | |||
| Scalar Start Mode | Read and write | ||||
| Follower Force Ramp Stop | Read and write | ||||
| Speed Ref Unlimited | rpm | Read | |||
| Speed Ref1 Source | Read and write | ||||
| Speed Ref2 Source | Read and write | ||||
| Speed Ref1 Function | Read and write | ||||
| Speed Ref1/2 Selection | Read and write | ||||
| Speed Additive 1 Source | Read and write | ||||
| Speed Share | Read and write | ||||
| Speed Additive 2 Source | Read and write | ||||
| Constant Speed Function | Read and write | ||||
| Constant Speed Sel1 | Read and write | ||||
| Constant Speed Sel2 | Read and write | ||||
| Constant Speed Sel3 | Read and write | ||||
| Constant Speed 1 | rpm | Read and write | |||
| Constant Speed 2 | rpm | Read and write | |||
| Constant Speed 3 | rpm | Read and write | |||
| Constant Speed 4 | rpm | Read and write | |||
| Constant Speed 5 | rpm | Read and write | |||
| Constant Speed 6 | rpm | Read and write | |||
| Constant Speed 7 | rpm | Read and write | |||
| Speed Ref Safe | rpm | Read and write | |||
| Jogging 1 Ref | rpm | Read and write | |||
| Jogging 2 Ref | rpm | Read and write | |||
| Critical Speed Function | Read and write | ||||
| Critical Speed 1 Low | rpm | Read and write | |||
| Critical Speed 1 High | rpm | Read and write | |||
| Critical Speed 2 Low | rpm | Read and write | |||
| Critical Speed 2 High | rpm | Read and write | |||
| Critical Speed 3 Low | rpm | Read and write | |||
| Critical Speed 3 High | rpm | Read and write | |||
| Motor Potentiometer Function | Read and write | ||||
| Motor Potentiometer Initial Value | Read and write | ||||
| Motor Potentiometer Up Source | Read and write | ||||
| Motor Potentiometer Down Source | Read and write | ||||
| Motor Potentiometer Ramp Time | s | Read and write | |||
| Motor Potentiometer Min Value | Read and write | ||||
| Motor Potentiometer Max Value | Read and write | ||||
| Motor Potentiometer Ref Act | Read | ||||
| Speed Reference Act 1 | rpm | Read | |||
| Speed Reference Act 2 | rpm | Read | |||
| Speed Reference Act 3 | rpm | Read | |||
| Speed Reference Act 4 | rpm | Read | |||
| Speed Reference Act 5 | rpm | Read | |||
| Speed Reference Act 6 | rpm | Read | |||
| Speed Reference Act 7 | rpm | Read | |||
| Speed Ref Ramp Input | rpm | Read | |||
| Speed Ref Ramp Output | rpm | Read | |||
| Ramp Set Selection | Read and write | ||||
| Acceleration Time 1 | s | Read and write | |||
| Deceleration Time 1 | s | Read and write | |||
| Acceleration Time 2 | s | Read and write | |||
| Deceleration Time 2 | s | Read and write | |||
| Shape Time Acc 1 | s | Read and write | |||
| Shape Time Acc 2 | s | Read and write | |||
| Shape Time Dec 1 | s | Read and write | |||
| Shape Time Dec 2 | s | Read and write | |||
| Acc Time Jogging | s | Read and write | |||
| Dec Time Jogging | s | Read and write | |||
| Emergency Stop Time | s | Read and write | |||
| Speed Ramp in Zero Source | Read and write | ||||
| Ramp Out Balancing Enable | Read and write | ||||
| Ramp Out Balancing Ref | rpm | Read and write | |||
| Variable Slope Enable | Read and write | ||||
| Variable Slope Rate | ms | Read and write | |||
| Follower Speed Correction Out | rpm | Read | |||
| Follower Speed Correction Enable | Read and write | ||||
| Follower Speed Correction Gain | % | Read and write | |||
| Follower Speed Corr Torq Source | Read and write | ||||
| Used Speed Reference | rpm | Read | |||
| Used Speed Feedback | rpm | Read | |||
| Speed Error Filtered | rpm | Read | |||
| Speed Error Inverted | rpm | Read | |||
| Speed Correction | rpm | Read and write | |||
| Speed Error Filter Time | ms | Read and write | |||
| RFE Speed Filter | Read and write | ||||
| Frequency of Zero | Hz | Read and write | |||
| Damping of Zero | Read and write | ||||
| Frequency of Pole | Hz | Read and write | |||
| Damping of Pole | Read and write | ||||
| Speed Error Window Control Enable | Read and write | ||||
| Speed Window Control Mode | Read and write | ||||
| Speed Error Window High | rpm | Read and write | |||
| Speed Error Window Low | rpm | Read and write | |||
| Speed Error Step | rpm | Read and write | |||
| Torque Reference Speed Control | % | Read | |||
| Speed Proportional Gain | Read and write | ||||
| Speed Integration Time | s | Read and write | |||
| Speed Derivation Time | s | Read and write | |||
| Derivation Filter Time | ms | Read and write | |||
| Acc Comp Derivation Time | s | Read and write | |||
| Acc Comp Filter Time | ms | Read and write | |||
| Drooping Rate | % | Read and write | |||
| Speed Ctrl Balancing Enable | Read and write | ||||
| Speed Ctrl Balancing Ref | % | Read and write | |||
| Speed Control Min Torque | % | Read and write | |||
| Speed Control Max Torque | % | Read and write | |||
| Min Torq Sp Ctrl Em Stop | % | Read and write | |||
| Max Torq Sp Ctrl Em Stop | % | Read and write | |||
| Proportional Gain Em Stop | Read and write | ||||
| Speed Adapt Min Limit | rpm | Read and write | |||
| Speed Adapt Max Limit | rpm | Read and write | |||
| Kp Adapt Coef at Min Speed | Read and write | ||||
| Ti Adapt Coef at Min Speed | Read and write | ||||
| Torque Adapt Max Limit | % | Read and write | |||
| Torque Adapt Filt Time | s | Read and write | |||
| Kp Adapt Coef at Min Torque | Read and write | ||||
| Flux Adaption Enable | Read and write | ||||
| Speed Controller Autotune | Read and write | ||||
| Speed Controller Autotune Mode | Read and write | ||||
| Mechanical Time Constant | s | Read and write | |||
| Autotune Torque Step | % | Read and write | |||
| Autotune Speed Step | % | Read and write | |||
| Autotune Repeat Times | Read and write | ||||
| Torque Reference Autotune2 | % | Read and write | |||
| Integral Term Enable | Read and write | ||||
| Torque Prop Reference | % | Read | |||
| Torque Integral Reference | % | Read | |||
| Torque Deriv Reference | % | Read | |||
| Torque Acc Compensation | % | Read | |||
| Torque Reference Unbalanced | % | Read | |||
| Torque Reference to TC | % | Read | |||
| Torque Reference Used | % | Read | |||
| Minimum Torque Ref | % | Read and write | |||
| Maximum Torque Ref | % | Read and write | |||
| Torque Ref1 Source | Read and write | ||||
| Torque Ref2 Source | Read and write | ||||
| Torque Ref1 Function | Read and write | ||||
| Torque Ref1/2 Selection | Read and write | ||||
| Load Share | Read and write | ||||
| Torque Additive 1 Source | Read and write | ||||
| Torque Ref Filter Time | s | Read and write | |||
| Torque Ramp Up Time | s | Read and write | |||
| Torque Ramp Down Time | s | Read and write | |||
| Torque Additive 2 Source | Read and write | ||||
| Force Torque Ref Add 2 Zero | Read and write | ||||
| Torque Step | % | Read and write | |||
| Torque Step Enable | Read and write | ||||
| Torque Step Pointer Enable | Read and write | ||||
| Torque Step Source | Read and write | ||||
| Oscillation Damping | Read and write | ||||
| Oscillation Damping Out Enable | Read and write | ||||
| Oscillation Compensation Input | Read and write | ||||
| Oscillation Damping Frequency | Hz | Read and write | |||
| Oscillation Damping Phase | Read and write | ||||
| Oscillation Damping Gain | % | Read and write | |||
| Oscillation Damping Output | % | Read | |||
| Torque Reference Act 1 | % | Read | |||
| Torque Reference Act 2 | % | Read | |||
| Torque Reference Act 3 | % | Read | |||
| Torque Reference Act 4 | % | Read | |||
| Torque Ref Ramp Out | % | Read | |||
| Torque Reference Act 5 | % | Read | |||
| Torque Reference Act 6 | % | Read | |||
| Torque Ref Add A Actual | % | Read | |||
| Torque Ref Add B Actual | % | Read | |||
| Rush Control Gain | Read and write | ||||
| Rush Control Integration Time | s | Read and write | |||
| Frequency Ref Ramp Input | Hz | Read | |||
| Frequency Ref Ramp Output | Hz | Read | |||
| Frequency Ref1 Source | Read and write | ||||
| Frequency Ref2 Source | Read and write | ||||
| Frequency Ref1 Function | Read and write | ||||
| Frequency Ref1/2 Selection | Read and write | ||||
| Constant Frequency Function | Read and write | ||||
| Constant Frequency Sel1 | Read and write | ||||
| Constant Frequency Sel2 | Read and write | ||||
| Constant Frequency Sel3 | Read and write | ||||
| Constant Frequency 1 | Hz | Read and write | |||
| Constant Frequency 2 | Hz | Read and write | |||
| Constant Frequency 3 | Hz | Read and write | |||
| Constant Frequency 4 | Hz | Read and write | |||
| Constant Frequency 5 | Hz | Read and write | |||
| Constant Frequency 6 | Hz | Read and write | |||
| Constant Frequency 7 | Hz | Read and write | |||
| Frequency Ref Safe | Hz | Read and write | |||
| Critical Frequency Function | Read and write | ||||
| Critical Frequency 1 Low | Hz | Read and write | |||
| Critical Frequency 1 High | Hz | Read and write | |||
| Critical Frequency 2 Low | Hz | Read and write | |||
| Critical Frequency 2 High | Hz | Read and write | |||
| Critical Frequency 3 Low | Hz | Read and write | |||
| Critical Frequency 3 High | Hz | Read and write | |||
| Freq Ramp Set Selection | Read and write | ||||
| Freq Acceleration Time 1 | s | Read and write | |||
| Freq Deceleration Time 1 | s | Read and write | |||
| Freq Acceleration Time 2 | s | Read and write | |||
| Freq Deceleration Time 2 | s | Read and write | |||
| Freq Ramp in Zero Source | Read and write | ||||
| Freq Ramp Hold | Read and write | ||||
| Freq Ramp Output Balancing | Hz | Read and write | |||
| Freq Ramp Out Balancing Enable | Read and write | ||||
| Frequency Ref Act 1 | Hz | Read | |||
| Frequency Ref Act 2 | Hz | Read | |||
| Frequency Ref Act 3 | Hz | Read | |||
| Frequency Ref Act 7 | Hz | Read | |||
| Frequency Ref Unlimited | Hz | Read | |||
| Torque Ref DC Voltage Control | % | Read | |||
| DC Voltage Ref | V | Read and write | |||
| DC Voltage Ref Used | V | Read and write | |||
| DC Voltage Ref Ramped | V | Read and write | |||
| Filtered DC Voltage | V | Read and write | |||
| DC Voltage Error | V | Read and write | |||
| Power Reference | % | Read and write | |||
| Minimum DC Voltage Reference | V | Read and write | |||
| Maximum DC Voltage Reference | V | Read and write | |||
| DC Voltage Ref1 Source | Read and write | ||||
| DC Voltage Ref2 Source | Read and write | ||||
| DC Voltage Ref1 Function | Read and write | ||||
| DC Voltage Ref1/2 Selection | Read and write | ||||
| DC Voltage Filter Time | ms | Read and write | |||
| DC Voltage Ramp Down Speed | Read and write | ||||
| DC Voltage Ramp Up Speed | Read and write | ||||
| DC Voltage Proportional Gain | Read and write | ||||
| DC Voltage Integration Time | s | Read and write | |||
| DC Capacitance Source | Read and write | ||||
| Used DC Capacitance | Read and write | ||||
| Speed Data Point 1 | rpm | Read and write | |||
| Torque Data Point 1 | % | Read and write | |||
| Speed Data Point 2 | rpm | Read and write | |||
| Torque Data Point 2 | % | Read and write | |||
| Speed Data Point 3 | rpm | Read and write | |||
| Torque Data Point 3 | % | Read and write | |||
| Speed Data Point 4 | rpm | Read and write | |||
| Torque Data Point 4 | % | Read and write | |||
| Speed Data Point 5 | rpm | Read and write | |||
| Torque Data Point 5 | % | Read and write | |||
| Limit Word 1 | Read | ||||
| Torque Limit Status | Read | ||||
| Minimum Speed | rpm | Read and write | |||
| Maximum Speed | rpm | Read and write | |||
| Minimum Frequency | Hz | Read and write | |||
| Maximum Frequency | Hz | Read and write | |||
| Maximum Start Current Enable | Read and write | ||||
| Maximum Start Current | A | Read and write | |||
| Maximum Current | A | Read and write | |||
| Minimum Torque Sel | Read and write | ||||
| Minimum Torque 1 | % | Read and write | |||
| Maximum Torque 1 | % | Read and write | |||
| Minimum Torque 2 Source | Read and write | ||||
| Maximum Torque 2 Source | Read and write | ||||
| Minimum Torque 2 | % | Read and write | |||
| Maximum Torque 2 | % | Read and write | |||
| Maximum Torque Sel | Read and write | ||||
| Power Motoring Limit | % | Read and write | |||
| Power Generating Limit | % | Read and write | |||
| Overvoltage Control | Read and write | ||||
| Undervoltage Control | Read and write | ||||
| Thermal Current Limitation | Read and write | ||||
| External Event 1 Source | Read and write | ||||
| External Event 1 Type | Read and write | ||||
| External Event 2 Source | Read and write | ||||
| External Event 2 Type | Read and write | ||||
| External Event 3 Source | Read and write | ||||
| External Event 3 Type | Read and write | ||||
| External Event 4 Source | Read and write | ||||
| External Event 4 Type | Read and write | ||||
| External Event 5 Source | Read and write | ||||
| External Event 5 Type | Read and write | ||||
| Fault Reset Selection | Read and write | ||||
| Autoreset Selection | Read and write | ||||
| User Selectable Fault | Read and write | ||||
| Number of Trials | Read and write | ||||
| Total Trials Time | s | Read and write | |||
| Delay Time | s | Read and write | |||
| Motor Phase Loss | Read and write | ||||
| Earth Fault | Read and write | ||||
| STO Indication Run/stop | Read and write | ||||
| Wiring or Earth Fault | Read and write | ||||
| Stall Function | Read and write | ||||
| Stall Current Limit | % | Read and write | |||
| Stall Speed Limit | rpm | Read and write | |||
| Stall Frequency Limit | Hz | Read and write | |||
| Stall Time | s | Read and write | |||
| Overspeed Trip Margin | rpm | Read and write | |||
| Emergency Ramp Supervision | % | Read and write | |||
| Emergency Ramp Supervision Delay | s | Read and write | |||
| Main Fan Fault Function | Read and write | ||||
| Aux Fan Fault Function | Read and write | ||||
| Ramp Stop Supervision | % | Read and write | |||
| Ramp Stop Supervision Delay | s | Read and write | |||
| Disable Warning Messages | Read and write | ||||
| Overcurrent Fault Limit | A | Read and write | |||
| Fault Action | Read and write | ||||
| Ext I/O Comm Loss Event | Read and write | ||||
| Supervision Status | Read and write | ||||
| Supervision 1 Function | Read and write | ||||
| Supervision 1 Action | Read and write | ||||
| Supervision 1 Signal | Read and write | ||||
| Supervision 1 Filter Time | s | Read and write | |||
| Supervision 1 Low | Read and write | ||||
| Supervision 1 High | Read and write | ||||
| Supervision 2 Function | Read and write | ||||
| Supervision 2 Action | Read and write | ||||
| Supervision 2 Signal | Read and write | ||||
| Supervision 2 Filter Time | s | Read and write | |||
| Supervision 2 Low | Read and write | ||||
| Supervision 2 High | Read and write | ||||
| Supervision 3 Function | Read and write | ||||
| Supervision 3 Action | Read and write | ||||
| Supervision 3 Signal | Read and write | ||||
| Supervision 3 Filter Time | s | Read and write | |||
| Supervision 3 Low | Read and write | ||||
| Supervision 3 High | Read and write | ||||
| Counter Status | Read | ||||
| On-time 1 Actual | s | Read and write | |||
| On-time 1 Warn Limit | s | Read and write | |||
| On-time 1 Function | Read and write | ||||
| On-time 1 Source | Read and write | ||||
| On-time 1 Warn Message | Read and write | ||||
| On-time 2 Actual | s | Read and write | |||
| On-time 2 Warn Limit | s | Read and write | |||
| On-time 2 Function | Read and write | ||||
| On-time 2 Source | Read and write | ||||
| On-time 2 Warn Message | Read and write | ||||
| Edge Counter 1 Actual | Read and write | ||||
| Edge Counter 1 Warn Limit | Read and write | ||||
| Edge Counter 1 Function | Read and write | ||||
| Edge Counter 1 Source | Read and write | ||||
| Edge Counter 1 Divider | Read and write | ||||
| Edge Counter 1 Warn Message | Read and write | ||||
| Edge Counter 2 Actual | Read and write | ||||
| Edge Counter 2 Warn Limit | Read and write | ||||
| Edge Counter 2 Function | Read and write | ||||
| Edge Counter 2 Source | Read and write | ||||
| Edge Counter 2 Divider | Read and write | ||||
| Edge Counter 2 Warn Message | Read and write | ||||
| Value Counter 1 Actual | Read and write | ||||
| Value Counter 1 Warn Limit | Read and write | ||||
| Value Counter 1 Function | Read and write | ||||
| Value Counter 1 Source | Read and write | ||||
| Value Counter 1 Divider | Read and write | ||||
| Value Counter 1 Warn Message | Read and write | ||||
| Value Counter 2 Actual | Read and write | ||||
| Value Counter 2 Warn Limit | Read and write | ||||
| Value Counter 2 Function | Read and write | ||||
| Value Counter 2 Source | Read and write | ||||
| Value Counter 2 Divider | Read and write | ||||
| Value Counter 2 Warn Message | Read and write | ||||
| Motor Estimated Temperature | Read | ||||
| Measured Temperature 1 | Read | ||||
| Measured Temperature 2 | Read | ||||
| FPTC Status Word | Read and write | ||||
| Motor Overload Level | % | Read and write | |||
| Temperature 1 Source | Read and write | ||||
| Temperature 1 Fault Limit | Read and write | ||||
| Temperature 1 Warning Limit | Read and write | ||||
| Temperature 1 AI Source | Read and write | ||||
| Temperature 2 Source | Read and write | ||||
| Temperature 2 Fault Limit | Read and write | ||||
| Temperature 2 Warning Limit | Read and write | ||||
| Temperature 2 AI Source | Read and write | ||||
| FPTC Configuration Word | Read | ||||
| Motor Ambient Temperature | Read and write | ||||
| Motor Load Curve | % | Read and write | |||
| Zero Speed Load | % | Read and write | |||
| Break Point | Hz | Read and write | |||
| Motor Nominal Temperature Rise | Read and write | ||||
| Motor Thermal Time Constant | s | Read and write | |||
| Motor Overload Action | Read and write | ||||
| Motor Overload Class | Read and write | ||||
| Cable Temperature | % | Read | |||
| Cable Nominal Current | A | Read and write | |||
| Cable Thermal Rise Time | s | Read and write | |||
| PVL Signal Source | Read and write | ||||
| PVL Filter Time | s | Read and write | |||
| AL2 Signal Source | Read and write | ||||
| AL2 Signal Scaling | Read and write | ||||
| Logger Function | Read and write | ||||
| Reset Loggers | Read and write | ||||
| PVL Peak Value | Read and write | ||||
| PVL Peak Date | Read and write | ||||
| PVL Peak Time | Read and write | ||||
| PVL Current at Peak | A | Read and write | |||
| PVL DC Voltage at Peak | V | Read and write | |||
| PVL Speed at Peak | rpm | Read and write | |||
| PVL Reset Date | Read and write | ||||
| PVL Reset Time | Read and write | ||||
| AL1 Below 10% | % | Read and write | |||
| AL1 10 to 20% | % | Read and write | |||
| AL1 20 to 30% | % | Read and write | |||
| AL1 30 to 40% | % | Read and write | |||
| AL1 40 to 50% | % | Read and write | |||
| AL1 50 to 60% | % | Read and write | |||
| AL1 60 to 70% | % | Read and write | |||
| AL1 70 to 80% | % | Read and write | |||
| AL1 80 to 90% | % | Read and write | |||
| AL1 Over 90% | % | Read and write | |||
| AL2 Below 10% | % | Read and write | |||
| AL2 10 to 20% | % | Read and write | |||
| AL2 20 to 30% | % | Read and write | |||
| AL2 30 to 40% | % | Read and write | |||
| AL2 40 to 50% | % | Read and write | |||
| AL2 50 to 60% | % | Read and write | |||
| AL2 60 to 70% | % | Read and write | |||
| AL2 70 to 80% | % | Read and write | |||
| AL2 80 to 90% | % | Read and write | |||
| AL2 Over 90% | % | Read and write | |||
| AL2 Reset Date | Read and write | ||||
| AL2 Reset Time | Read and write | ||||
| ULC Output Status Word | Read | ||||
| ULC Supervision Signal | Read and write | ||||
| ULC Overload Actions | Read and write | ||||
| ULC Underload Actions | Read and write | ||||
| ULC Speed Table Point 1 | rpm | Read and write | |||
| ULC Speed Table Point 2 | rpm | Read and write | |||
| ULC Speed Table Point 3 | rpm | Read and write | |||
| ULC Speed Table Point 4 | rpm | Read and write | |||
| ULC Speed Table Point 5 | rpm | Read and write | |||
| ULC Frequency Table Point 1 | Hz | Read and write | |||
| ULC Frequency Table Point 2 | Hz | Read and write | |||
| ULC Frequency Table Point 3 | Hz | Read and write | |||
| ULC Frequency Table Point 4 | Hz | Read and write | |||
| ULC Frequency Table Point 5 | Hz | Read and write | |||
| ULC Underload Point 1 | % | Read and write | |||
| ULC Underload Point 2 | % | Read and write | |||
| ULC Underload Point 3 | % | Read and write | |||
| ULC Underload Point 4 | % | Read and write | |||
| ULC Underload Point 5 | % | Read and write | |||
| ULC Overload Point 1 | % | Read and write | |||
| ULC Overload Point 2 | % | Read and write | |||
| ULC Overload Point 3 | % | Read and write | |||
| ULC Overload Point 4 | % | Read and write | |||
| ULC Overload Point 5 | % | Read and write | |||
| ULC Overload Timer | s | Read and write | |||
| ULC Underload Timer | s | Read and write | |||
| Process PID Output Actual | Read | ||||
| Process PID Feedback Actual | Read | ||||
| Process PID Setpoint Actual | Read | ||||
| Process PID Deviation Actual | Read | ||||
| Process PID Trim Output Act | Read | ||||
| Process PID Status Word | Read | ||||
| Set 1 PID Operation Mode | Read and write | ||||
| Set 1 Feedback 1 Source | Read and write | ||||
| Set 1 Feedback 2 Source | Read and write | ||||
| Set 1 Feedback Function | Read and write | ||||
| Set 1 Feedback Filter Time | s | Read and write | |||
| Set 1 Unit Selection | Read and write | ||||
| Set 1 Setpoint Scaling | Read and write | ||||
| Set 1 Output Scaling | Read and write | ||||
| Set 1 Setpoint 1 Source | Read and write | ||||
| Set 1 Setpoint 2 Source | Read and write | ||||
| Set 1 Setpoint Function | Read and write | ||||
| Set 1 Internal Setpoint Sel1 | Read and write | ||||
| Set 1 Internal Setpoint Sel2 | Read and write | ||||
| Set 1 Internal Setpoint 1 | Read and write | ||||
| Set 1 Internal Setpoint 2 | Read and write | ||||
| Set 1 Internal Setpoint 3 | Read and write | ||||
| Set 1 Internal Setpoint 4 | Read and write | ||||
| Set 1 Setpoint Selection | Read and write | ||||
| Set 1 Setpoint Min | Read and write | ||||
| Set 1 Setpoint Max | Read and write | ||||
| Set 1 Setpoint Increase Time | s | Read and write | |||
| Set 1 Setpoint Decrease Time | s | Read and write | |||
| Set 1 Setpoint Freeze Enable | Read and write | ||||
| Set 1 Deviation Inversion | Read and write | ||||
| Set 1 Gain | Read and write | ||||
| Set 1 Integration Time | s | Read and write | |||
| Set 1 Derivation Time | s | Read and write | |||
| Set 1 Derivation Filter Time | s | Read and write | |||
| Set 1 Output Min | Read and write | ||||
| Set 1 Output Max | Read and write | ||||
| Set 1 Output Freeze Enable | Read and write | ||||
| Set 1 Deadband Range | Read and write | ||||
| Set 1 Deadband Delay | s | Read and write | |||
| Set 1 Sleep Mode | Read and write | ||||
| Set 1 Sleep Enable | Read and write | ||||
| Set 1 Sleep Level | Read and write | ||||
| Set 1 Sleep Delay | s | Read and write | |||
| Set 1 Sleep Boost Time | s | Read and write | |||
| Set 1 Sleep Boost Step | Read and write | ||||
| Set 1 Wake-up Deviation | Read and write | ||||
| Set 1 Wake-up Delay | s | Read and write | |||
| Set 1 Tracking Mode | Read and write | ||||
| Set 1 Tracking Ref Selection | Read and write | ||||
| Set 1 Trim Mode | Read and write | ||||
| Set 1 Trim Selection | Read and write | ||||
| Set 1 Trimmed Ref Pointer | Read and write | ||||
| Set 1 Trim Mix | Read and write | ||||
| Set 1 Trim Adjust | Read and write | ||||
| Set 1 Trim Source | Read and write | ||||
| PID Set1/set2 Selection | Read and write | ||||
| Set 1 PID Activation Source | Read and write | ||||
| Feedback Data Storage | Read and write | ||||
| Setpoint Data Storage | Read and write | ||||
| Set 2 PID Operation Mode | Read and write | ||||
| Set 2 Feedback 1 Source | Read and write | ||||
| Set 2 Feedback 2 Source | Read and write | ||||
| Set 2 Feedback Function | Read and write | ||||
| Set 2 Feedback Filter Time | s | Read and write | |||
| Set 2 Unit Selection | Read and write | ||||
| Set 2 Setpoint Scaling | Read and write | ||||
| Set 2 Output Scaling | Read and write | ||||
| Set 2 Setpoint 1 Source | Read and write | ||||
| Set 2 Setpoint 2 Source | Read and write | ||||
| Set 2 Setpoint Function | Read and write | ||||
| Set 2 Internal Setpoint Sel1 | Read and write | ||||
| Set 2 Internal Setpoint Sel2 | Read and write | ||||
| Set 2 Internal Setpoint 1 | Read and write | ||||
| Set 2 Internal Setpoint 2 | Read and write | ||||
| Set 2 Internal Setpoint 3 | Read and write | ||||
| Set 2 Internal Setpoint 4 | Read and write | ||||
| Set 2 Setpoint Selection | Read and write | ||||
| Set 2 Setpoint Min | Read and write | ||||
| Set 2 Setpoint Max | Read and write | ||||
| Set 2 Setpoint Increase Time | s | Read and write | |||
| Set 2 Setpoint Decrease Time | s | Read and write | |||
| Set 2 Setpoint Freeze Enable | Read and write | ||||
| Set 2 Deviation Inversion | Read and write | ||||
| Set 2 Gain | Read and write | ||||
| Set 2 Integration Time | s | Read and write | |||
| Set 2 Derivation Time | s | Read and write | |||
| Set 2 Derivation Filter Time | s | Read and write | |||
| Set 2 Output Min | Read and write | ||||
| Set 2 Output Max | Read and write | ||||
| Set 2 Output Freeze Enable | Read and write | ||||
| Set 2 Deadband Range | Read and write | ||||
| Set 2 Deadband Delay | s | Read and write | |||
| Set 2 Sleep Mode | Read and write | ||||
| Set 2 Sleep Enable | Read and write | ||||
| Set 2 Sleep Level | Read and write | ||||
| Set 2 Sleep Delay | s | Read and write | |||
| Set 2 Sleep Boost Time | s | Read and write | |||
| Set 2 Sleep Boost Step | Read and write | ||||
| Set 2 Wake-up Deviation | Read and write | ||||
| Set 2 Wake-up Delay | s | Read and write | |||
| Set 2 Tracking Mode | Read and write | ||||
| Set 2 Tracking Ref Selection | Read and write | ||||
| Set 2 Trim Mode | Read and write | ||||
| Set 2 Trim Selection | Read and write | ||||
| Set 2 Trimmed Ref Pointer | Read and write | ||||
| Set 2 Trim Mix | Read and write | ||||
| Set 2 Trim Adjust | Read and write | ||||
| Set 2 Trim Source | Read and write | ||||
| Set 2 PID Activation Source | Read and write | ||||
| Braking Resistor Temperature | % | Read | |||
| Brake Chopper Function | Read and write | ||||
| Brake Chopper Run Enable | Read and write | ||||
| Brake Resistor Thermal Tc | s | Read and write | |||
| Brake Resistor Pmax Cont | kW | Read and write | |||
| Brake Resistance | Ω | Read and write | |||
| Brake Resistor Fault Limit | % | Read and write | |||
| Brake Resistor Warning Limit | % | Read and write | |||
| Brake Control Status | Read | ||||
| Brake Torque Memory | % | Read and write | |||
| Brake Open Torque Reference | % | Read | |||
| Brake Control Enable | Read and write | ||||
| Brake Acknowledge Selection | Read and write | ||||
| Brake Open Delay | s | Read and write | |||
| Brake Open Torque Source | Read and write | ||||
| Brake Open Torque | % | Read and write | |||
| Keep Brake Closed | Read and write | ||||
| Brake Close Request | Read and write | ||||
| Brake Close Delay | s | Read and write | |||
| Brake Close Level | rpm | Read and write | |||
| Brake Close Level Delay | s | Read and write | |||
| Brake Reopen Delay | s | Read and write | |||
| Brake Fault Function | Read and write | ||||
| Brake Fault Delay | s | Read and write | |||
| Filter Time Brake Torque Memory | ms | Read and write | |||
| Saved GW Hours | Read | ||||
| Saved MW Hours | MWh | Read | |||
| Saved KW Hours | kWh | Read | |||
| Saved Money X1000 | Read | ||||
| Saved Money | Read | ||||
| CO2 Reduction in Kilotons | Read | ||||
| CO2 Reduction in Tons | Read | ||||
| Energy Optimizer | Read and write | ||||
| Energy Tariff 1 | Read and write | ||||
| Energy Tariff 2 | Read and write | ||||
| Tariff Selection | Read and write | ||||
| Tariff Currency Unit | Read and write | ||||
| CO2 Conversion Factor | Read and write | ||||
| Comparison Power | kW | Read and write | |||
| Energy Calculations Reset | Read and write | ||||
| Speed Scaling | rpm | Read and write | |||
| Frequency Scaling | Hz | Read and write | |||
| Torque Scaling | % | Read and write | |||
| Power Scaling | kW | Read and write | |||
| Current Scaling | A | Read and write | |||
| Speed Ref Zero Scaling | rpm | Read and write | |||
| Frequency Ref Zero Scaling | Hz | Read and write | |||
| Filter Time Motor Speed | ms | Read and write | |||
| Filter Time Output Frequency | ms | Read and write | |||
| Filter Time Motor Torque | ms | Read and write | |||
| Filter Time Power Out | ms | Read and write | |||
| At Speed Hysteresis | rpm | Read and write | |||
| At Frequency Hysteresis | Hz | Read and write | |||
| At Torque Hysteresis | % | Read and write | |||
| Above Speed Limit | rpm | Read and write | |||
| Above Frequency Limit | Hz | Read and write | |||
| Above Torque Limit | % | Read and write | |||
| Torque Decimals | Read and write | ||||
| Data Storage 1 Real32 | Read and write | ||||
| Data Storage 2 Real32 | Read and write | ||||
| Data Storage 3 Real32 | Read and write | ||||
| Data Storage 4 Real32 | Read and write | ||||
| Data Storage 5 Real32 | Read and write | ||||
| Data Storage 6 Real32 | Read and write | ||||
| Data Storage 7 Real32 | Read and write | ||||
| Data Storage 8 Real32 | Read and write | ||||
| Data Storage 1 Int32 | Read and write | ||||
| Data Storage 2 Int32 | Read and write | ||||
| Data Storage 3 Int32 | Read and write | ||||
| Data Storage 4 Int32 | Read and write | ||||
| Data Storage 5 Int32 | Read and write | ||||
| Data Storage 6 Int32 | Read and write | ||||
| Data Storage 7 Int32 | Read and write | ||||
| Data Storage 8 Int32 | Read and write | ||||
| Data Storage 1 Int16 | Read and write | ||||
| Data Storage 2 Int16 | Read and write | ||||
| Data Storage 3 Int16 | Read and write | ||||
| Data Storage 4 Int16 | Read and write | ||||
| Data Storage 5 Int16 | Read and write | ||||
| Data Storage 6 Int16 | Read and write | ||||
| Data Storage 7 Int16 | Read and write | ||||
| Data Storage 8 Int16 | Read and write | ||||
| Data Storage 1 Real32 Type | Read and write | ||||
| Data Storage 2 Real32 Type | Read and write | ||||
| Data Storage 3 Real32 Type | Read and write | ||||
| Data Storage 4 Real32 Type | Read and write | ||||
| Data Storage 5 Real32 Type | Read and write | ||||
| Data Storage 6 Real32 Type | Read and write | ||||
| Data Storage 7 Real32 Type | Read and write | ||||
| Data Storage 8 Real32 Type | Read and write | ||||
| Node ID Number | Read and write | ||||
| Baud Rate | Read and write | ||||
| Communication Loss Time | s | Read and write | |||
| Communication Loss Action | Read and write | ||||
| Refresh Settings | Read and write | ||||
| Panel Comm Supervision Force | Read and write | ||||
| Secondary Comm. Loss Action | Read and write | ||||
| Panel Speed Reference Unit | Read and write | ||||
| Minimum Ext Speed Ref Panel | rpm | Read and write | |||
| Maximum Ext Speed Ref Panel | rpm | Read and write | |||
| Minimum Ext Frequency Ref Panel | Hz | Read and write | |||
| Maximum Ext Frequency Ref Panel | Hz | Read and write | |||
| Panel Actual Source | Read and write | ||||
| FBA A Enable | Read and write | ||||
| FBA A Comm Loss Func | Read and write | ||||
| FBA A Comm Loss T Out | s | Read and write | |||
| FBA A Ref1 Type | Read and write | ||||
| FBA A Ref2 Type | Read and write | ||||
| FBA A Actual 1 Type | Read and write | ||||
| FBA A Actual 2 Type | Read and write | ||||
| FBA A SW Transparent Source | Read and write | ||||
| FBA A Act1 Transparent Source | Read and write | ||||
| FBA A Act2 Transparent Source | Read and write | ||||
| FBA A Debug Mode | Read and write | ||||
| FBA A Control Word | Read | ||||
| FBA A Reference 1 | Read | ||||
| FBA A Reference 2 | Read | ||||
| FBA A Status Word | Read | ||||
| FBA A Actual Value 1 | Read | ||||
| FBA A Actual Value 2 | Read | ||||
| FBA A Timelevel Sel | Read and write | ||||
| FBA A Comm Supervision Force | Read and write | ||||
| FBA B Enable | Read and write | ||||
| FBA B Comm Loss Func | Read and write | ||||
| FBA B Comm Loss Timeout | s | Read and write | |||
| FBA B Ref1 Type | Read and write | ||||
| FBA B Ref2 Type | Read and write | ||||
| FBA B Actual 1 Type | Read and write | ||||
| FBA B Actual 2 Type | Read and write | ||||
| FBA B SW Transparent Source | Read and write | ||||
| FBA B Act1 Transparent Source | Read and write | ||||
| FBA B Act2 Transparent Source | Read and write | ||||
| FBA B Debug Mode | Read and write | ||||
| FBA B Control Word | Read | ||||
| FBA B Reference 1 | Read | ||||
| FBA B Reference 2 | Read | ||||
| FBA B Status Word | Read | ||||
| FBA B Actual Value 1 | Read | ||||
| FBA B Actual Value 2 | Read | ||||
| FBA B Timelevel Sel | Read and write | ||||
| FBA B Comm Supervision Force | Read and write | ||||
| FBA A Type | Read | ||||
| FBA A Par2 | Read and write | ||||
| FBA A Par3 | Read and write | ||||
| FBA A Par4 | Read and write | ||||
| FBA A Par5 | Read and write | ||||
| FBA A Par6 | Read and write | ||||
| FBA A Par7 | Read and write | ||||
| FBA A Par8 | Read and write | ||||
| FBA A Par9 | Read and write | ||||
| FBA A Par10 | Read and write | ||||
| FBA A Par11 | Read and write | ||||
| FBA A Par12 | Read and write | ||||
| FBA A Par13 | Read and write | ||||
| FBA A Par14 | Read and write | ||||
| FBA A Par15 | Read and write | ||||
| FBA A Par16 | Read and write | ||||
| FBA A Par17 | Read and write | ||||
| FBA A Par18 | Read and write | ||||
| FBA A Par19 | Read and write | ||||
| FBA A Par20 | Read and write | ||||
| FBA A Par21 | Read and write | ||||
| FBA A Par22 | Read and write | ||||
| FBA A Par23 | Read and write | ||||
| FBA A Par24 | Read and write | ||||
| FBA A Par25 | Read and write | ||||
| FBA A Par26 | Read and write | ||||
| FBA A Par Refresh | Read and write | ||||
| FBA A Par Table Ver | Read | ||||
| FBA A Drive Type Code | Read | ||||
| FBA A Mapping File Ver | Read | ||||
| D2FBA A Comm Status | Read and write | ||||
| FBA A Comm SW Ver | Read and write | ||||
| FBA A Appl SW Ver | Read and write | ||||
| FBA A Data In1 | Read and write | ||||
| FBA A Data In2 | Read and write | ||||
| FBA A Data In3 | Read and write | ||||
| FBA A Data In4 | Read and write | ||||
| FBA A Data In5 | Read and write | ||||
| FBA A Data In6 | Read and write | ||||
| FBA A Data In7 | Read and write | ||||
| FBA A Data In8 | Read and write | ||||
| FBA A Data In9 | Read and write | ||||
| FBA A Data In10 | Read and write | ||||
| FBA A Data In11 | Read and write | ||||
| FBA A Data In12 | Read and write | ||||
| FBA A Data Out1 | Read and write | ||||
| FBA A Data Out2 | Read and write | ||||
| FBA A Data Out3 | Read and write | ||||
| FBA A Data Out4 | Read and write | ||||
| FBA A Data Out5 | Read and write | ||||
| FBA A Data Out6 | Read and write | ||||
| FBA A Data Out7 | Read and write | ||||
| FBA A Data Out8 | Read and write | ||||
| FBA A Data Out9 | Read and write | ||||
| FBA A Data Out10 | Read and write | ||||
| FBA A Data Out11 | Read and write | ||||
| FBA A Data Out12 | Read and write | ||||
| FBA B Par2 | Read and write | ||||
| FBA B Par3 | Read and write | ||||
| FBA B Par4 | Read and write | ||||
| FBA B Par5 | Read and write | ||||
| FBA B Par6 | Read and write | ||||
| FBA B Par7 | Read and write | ||||
| FBA B Par8 | Read and write | ||||
| FBA B Par9 | Read and write | ||||
| FBA B Par10 | Read and write | ||||
| FBA B Par11 | Read and write | ||||
| FBA B Par12 | Read and write | ||||
| FBA B Par13 | Read and write | ||||
| FBA B Par14 | Read and write | ||||
| FBA B Par15 | Read and write | ||||
| FBA B Par16 | Read and write | ||||
| FBA B Par17 | Read and write | ||||
| FBA B Par18 | Read and write | ||||
| FBA B Par19 | Read and write | ||||
| FBA B Par20 | Read and write | ||||
| FBA B Par21 | Read and write | ||||
| FBA B Par22 | Read and write | ||||
| FBA B Par23 | Read and write | ||||
| FBA B Par24 | Read and write | ||||
| FBA B Par25 | Read and write | ||||
| FBA B Par26 | Read and write | ||||
| FBA B Par Refresh | Read and write | ||||
| FBA B Par Table Ver | Read | ||||
| FBA B Drive Type Code | Read | ||||
| FBA B Mapping File Ver | Read | ||||
| D2FBA B Comm Status | Read and write | ||||
| FBA B Comm SW Ver | Read and write | ||||
| FBA B Appl SW Ver | Read and write | ||||
| FBA B Data In1 | Read and write | ||||
| FBA B Data In2 | Read and write | ||||
| FBA B Data In3 | Read and write | ||||
| FBA B Data In4 | Read and write | ||||
| FBA B Data In5 | Read and write | ||||
| FBA B Data In6 | Read and write | ||||
| FBA B Data In7 | Read and write | ||||
| FBA B Data In8 | Read and write | ||||
| FBA B Data In9 | Read and write | ||||
| FBA B Data In10 | Read and write | ||||
| FBA B Data In11 | Read and write | ||||
| FBA B Data In12 | Read and write | ||||
| FBA B Data Out1 | Read and write | ||||
| FBA B Data Out2 | Read and write | ||||
| FBA B Data Out3 | Read and write | ||||
| FBA B Data Out4 | Read and write | ||||
| FBA B Data Out5 | Read and write | ||||
| FBA B Data Out6 | Read and write | ||||
| FBA B Data Out7 | Read and write | ||||
| FBA B Data Out8 | Read and write | ||||
| FBA B Data Out9 | Read and write | ||||
| FBA B Data Out10 | Read and write | ||||
| FBA B Data Out11 | Read and write | ||||
| FBA B Data Out12 | Read and write | ||||
| Protocol Enable | Read and write | ||||
| Protocol ID | Read | ||||
| Node Address | Read and write | ||||
| EFB Baud Rate | Read and write | ||||
| Parity | Read and write | ||||
| Communication Control | Read and write | ||||
| Communication Diagnostics | Read | ||||
| Received Packets | Read and write | ||||
| Transmitted Packets | Read and write | ||||
| All Packets | Read and write | ||||
| UART Errors | Read and write | ||||
| CRC Errors | Read and write | ||||
| EFB Communication Loss Action | Read and write | ||||
| Communication Loss Mode | Read and write | ||||
| EFB Communication Loss Time | s | Read and write | |||
| Transmit Delay | ms | Read and write | |||
| EFB Control Word | Read | ||||
| EFB Status Word | Read | ||||
| Control Profile | Read and write | ||||
| EFB Ref1 Type | Read and write | ||||
| EFB Ref2 Type | Read and write | ||||
| EFB Act1 Type | Read and write | ||||
| EFB Act2 Type | Read and write | ||||
| EFB Status Word Transparent Source | Read and write | ||||
| EFB Act1 Transparent Source | Read and write | ||||
| EFB Act2 Transparent Source | Read and write | ||||
| Addressing Mode | Read and write | ||||
| Word Order | Read and write | ||||
| EFB Comm Supervision Force | Read and write | ||||
| Motor Speed for Control | rpm | Read and write | |||
| Motor Position | Read | ||||
| Load Speed | rpm | Read | |||
| Load Position | Read | ||||
| Load Position Scaled | Read | ||||
| Motor Position Scaled | Read | ||||
| Load Position Scaled Int | Read | ||||
| Encoder 1 Speed | rpm | Read | |||
| Encoder 1 Position | Read | ||||
| Encoder 1 Multiturn Revolutions | Read | ||||
| Encoder 1 Revolution Extension | Read | ||||
| Encoder 1 Position Raw | Read | ||||
| Encoder 1 Revolutions Raw | Read | ||||
| Encoder 2 Speed | rpm | Read | |||
| Encoder 2 Position | Read | ||||
| Encoder 2 Multiturn Revolutions | Read | ||||
| Encoder 2 Revolution Extension | Read | ||||
| Encoder 2 Position Raw | Read | ||||
| Encoder 2 Revolutions Raw | Read | ||||
| Motor Revolution Extension | Read and write | ||||
| Load Revolution Extension | Read and write | ||||
| Pos Counter Status | Read | ||||
| Pos Counter Decimals | Read and write | ||||
| Motor Feedback Selection | Read | ||||
| Motor Speed Filter Time | ms | Read | |||
| Motor Gear Numerator | Read and write | ||||
| Motor Gear Denominator | Read and write | ||||
| Motor Feedback Fault | Read and write | ||||
| Force Open Loop | Read and write | ||||
| Motor Position Axis Mode | Read and write | ||||
| Motor Position Resolution | Read and write | ||||
| Load Feedback Selection | Read | ||||
| Load Speed Filter Time | ms | Read and write | |||
| Load Gear Numerator | Read and write | ||||
| Load Gear Denominator | Read and write | ||||
| Load Feedback Fault | Read and write | ||||
| Load Position Offset | Read and write | ||||
| Load Position Resolution | Read and write | ||||
| Pos Counter Init Value Int | Read and write | ||||
| Pos Counter Init Value Int Source | Read and write | ||||
| Pos Counter Error and Boot Action | Read and write | ||||
| Gear Numerator | Read and write | ||||
| Gear Denominator | Read and write | ||||
| Feed Constant Numerator | Read and write | ||||
| Feed Constant Denominator | Read and write | ||||
| Pos Counter Init Value | Read and write | ||||
| Pos Counter Init Value Source | Read and write | ||||
| Pos Counter Init Cmd Source | Read and write | ||||
| Disable Pos Counter Initialization | Read and write | ||||
| Reset Pos Counter Init Ready | Read and write | ||||
| LSU Control | Read and write | ||||
| LSU Panel Communication | Read and write | ||||
| INU-LSU Status Word Profile | Read and write | ||||
| LSU Max Charging Time | s | Read and write | |||
| LSU Stop Delay | s | Read and write | |||
| DC Voltage Reference | V | Read | |||
| DC Voltage Ref Source | Read and write | ||||
| User DC Voltage Reference | V | Read and write | |||
| Reactive Power Reference | kvar | Read | |||
| Reactive Power Ref Source | Read and write | ||||
| User Reactive Power Reference | kvar | Read and write | |||
| Power Mot Limit on Net Loss | % | Read and write | |||
| Power Gen Limit on Net Loss | % | Read and write | |||
| Supply Voltage | Read and write | ||||
| Adaptive Voltage Limits | Read and write | ||||
| Control Board Supply | Read and write | ||||
| DC Switch Monitoring | Read and write | ||||
| Switch Fuse Controller | Read and write | ||||
| Reduced Run Mode | Read and write | ||||
| Connected Modules | Read and write | ||||
| Special HW Settings | Read and write | ||||
| Router Mode | Read and write | ||||
| Router Channel Config | Read and write | ||||
| HW Options Word 1 | Read and write | ||||
| HW Options Word 2 | Read and write | ||||
| Parallel Type List Filter | Read and write | ||||
| Parallel Type Configuration | Read and write | ||||
| Transformation Ratio | Read and write | ||||
| Language | Read and write | ||||
| Pass Code | Read and write | ||||
| Access Levels Active | Read | ||||
| Macro Select | Read and write | ||||
| Macro Active | Read and write | ||||
| Parameter Restore | Read and write | ||||
| Parameter Save Manually | Read and write | ||||
| Control Board Boot | Read and write | ||||
| FSO Reboot | Read and write | ||||
| User Set Status | Read | ||||
| User Set Save/load | Read and write | ||||
| User Set I/O Mode In1 | Read and write | ||||
| User Set I/O Mode In2 | Read and write | ||||
| Unit Selection | Read and write | ||||
| Time Sync Primary Source | Read and write | ||||
| M/F and D2D Clock Synchronization | Read and write | ||||
| Full Days Since 1st Jan 1980 | Read and write | ||||
| Time in Minutes Within 24 H | Read and write | ||||
| Time in Ms Within One Minute | Read and write | ||||
| Time Sync Source Status | Read | ||||
| Drive ID Number | Read and write | ||||
| Power Up Event Logging | Read and write | ||||
| Clear Fault and Event Logger | Read and write | ||||
| Actual Checksum | Read and write | ||||
| Checksum Action | Read and write | ||||
| Checksum Control Word | Read and write | ||||
| Approved Checksum 1 | Read and write | ||||
| Approved Checksum 2 | Read and write | ||||
| Approved Checksum 3 | Read and write | ||||
| Approved Checksum 4 | Read and write | ||||
| User Data Logger Status Word | Read | ||||
| User Data Logger Trigger | Read and write | ||||
| User Data Logger Start | Read and write | ||||
| Factory Data Logger Time Level | Read and write | ||||
| Disable Adaptive Program | Read and write | ||||
| Switching Frequency Reference | Read and write | ||||
| Minimum Switching Frequency | Read and write | ||||
| Slip Gain | % | Read and write | |||
| Voltage Reserve | % | Read and write | |||
| Flux Braking | Read and write | ||||
| Flux Reference Select | Read and write | ||||
| User Flux Reference | % | Read and write | |||
| Optimizer Minimum Torque | % | Read and write | |||
| Switching Freq Mode | Read and write | ||||
| Signal Injection | Read and write | ||||
| TR Tuning | % | Read and write | |||
| IR Comp Step-up Frequency | Hz | Read and write | |||
| IR Compensation | % | Read and write | |||
| Motor Model Temperature Adaptation | Read and write | ||||
| Hexagonal Field Weakening | Read and write | ||||
| Hexagonal Field Weakening Point | % | Read and write | |||
| Motor Torque Unfiltered | % | Read | |||
| Speed Estimate Filter Time | ms | Read and write | |||
| User Motor Model Mode | Read and write | ||||
| Rs User | Read and write | ||||
| Rr User | Read and write | ||||
| Lm User | Read and write | ||||
| SigmaL User | Read and write | ||||
| Ld User | Read and write | ||||
| Lq User | Read and write | ||||
| PM Flux User | Read and write | ||||
| Rs User SI | Ω | Read and write | |||
| Rr User SI | Ω | Read and write | |||
| Lm User SI | Read and write | ||||
| SigmaL User SI | Read and write | ||||
| Ld User SI | Read and write | ||||
| Lq User SI | Read and write | ||||
| Position Offset User Electrical | Read and write | ||||
| Motor Type | Read and write | ||||
| Motor Control Mode | Read and write | ||||
| Motor Nominal Current | A | Read and write | |||
| Motor Nominal Voltage | V | Read and write | |||
| Motor Nominal Frequency | Hz | Read and write | |||
| Motor Nominal Speed | rpm | Read and write | |||
| Motor Nominal Power | kW | Read and write | |||
| Motor Nominal Cos Φ | Read and write | ||||
| Motor Nominal Torque | Read and write | ||||
| ID Run Requested | Read and write | ||||
| Last ID Run Performed | Read and write | ||||
| Motor Polepairs Calculated | Read | ||||
| Motor Phase Order | Read and write | ||||
| Sine Filter Inductance | Read and write | ||||
| Sine Filter Capacitance | Read and write | ||||
| Reset Error Registers | Read and write | ||||
| Error Function Code | Read | ||||
| Error Code | Read | ||||
| Failed Register | Read | ||||
| Last Register Written | Read | ||||
| Last Register Read | Read | ||||
| Drive Rating Id | Read | ||||
| Firmware Name | Read | ||||
| Firmware Version | Read | ||||
| Loading Package Name | Read | ||||
| Loading Package Version | Read | ||||
| Bootloader Version | Read | ||||
| Cpu Usage | % | Read | |||
| PU Logic Version Number | Read | ||||
| FPGA Logic Version Number | Read | ||||
| Application Environment Status 1 | Read | ||||
| Application Environment Status 2 | Read | ||||
| Application Name | Read | ||||
| Application Version | Read | ||||
| Customization Package Name | Read | ||||
| Customization Package Version | Read | ||||
| Adaptive Program Status | Read | ||||
| IEC Application Cpu Usage Peak | % | Read | |||
| IEC Application Cpu Load Average | % | Read | |||
| Slot 1 Option Module | Read | ||||
| Slot 2 Option Module | Read | ||||
| Slot 3 Option Module | Read |
Loading registers…

Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Raise an alarm in ModbusCloud as soon as Tripping Fault is not 0, so the service team knows the fault code before driving out.
- Log output power and the energy counters per drive to compare how much energy each pump or fan uses.
- Follow inverter temperature and the cooling fan run time to plan cleaning and fan replacement.
- Change a speed limit, ramp time or PID setpoint remotely from the portal without a visit.
- Show motor speed, current and torque on a dashboard to spot a pump or conveyor that runs heavier than usual.
Installation
Connect terminal XD2D of the drive control unit to the RS485 port of the ModbusCloud Gateway (A, B and shield) and switch on termination at the last device on the line.
On the drive set 58.01 Protocol enable to Modbus RTU, check node address 58.03, baud rate 58.04 and parity 58.05, keep 58.33 at Mode 0 and 58.34 at LO-HI, then validate with 58.06 or reboot the control unit.
In ModbusCloud, add a Modbus device (RTU) with address 1 (or your node address), 19200 baud, 8 data bits, even parity and 1 stop bit, and import this template.
Check that values arrive: DC Voltage should be about 1.35 times the supply voltage and On-Time Counter shows the days the drive has been powered.
Things to watch for
The drive does not answer. What should I check?
Check that 58.01 Protocol enable is Modbus RTU; with None the port stays silent. Changes in group 58 only take effect after 58.06 Communication control = Refresh settings or a reboot of the control unit. Then check 19200 baud, even parity, the node address, A and B, and termination at both ends of the line.
Why do speed and current show huge or nonsense values?
The 32-bit values are sent low word first by default (58.34 = LO-HI). If someone set 58.34 to HI-LO, the words arrive the other way round. Set 58.34 back to LO-HI, or change the byte order of the 32-bit registers to ABCD in the portal.
Why is my written parameter gone after a power cycle?
The ACS880 saves parameter values changed over a fieldbus only when you write 1 to Parameter Save Manually (96.07). Write the new value first, then trigger the save. Writing registers from ModbusCloud is switched on per organisation on request, and a wrong value in limits or motor data can stop or damage the machine, so change one value at a time.
Does reading the drive cause an EFB communication loss fault?
Not with the default 58.14 setting, because the drive only trips when it expects control from the embedded fieldbus. If 58.14 is set to Fault always, a slow master or a broken link trips the drive after 58.16 Communication loss time. For monitoring only, keep 58.14 at its default.
How do I read the fault and warning codes?
ABB lists fault and warning codes in hexadecimal, for example 2310 for overcurrent. The registers return the same number as a decimal value: 8976 is 2310 in hex. Convert the value and look it up in the fault tracing chapter of the firmware manual.
Want to see how it works?
