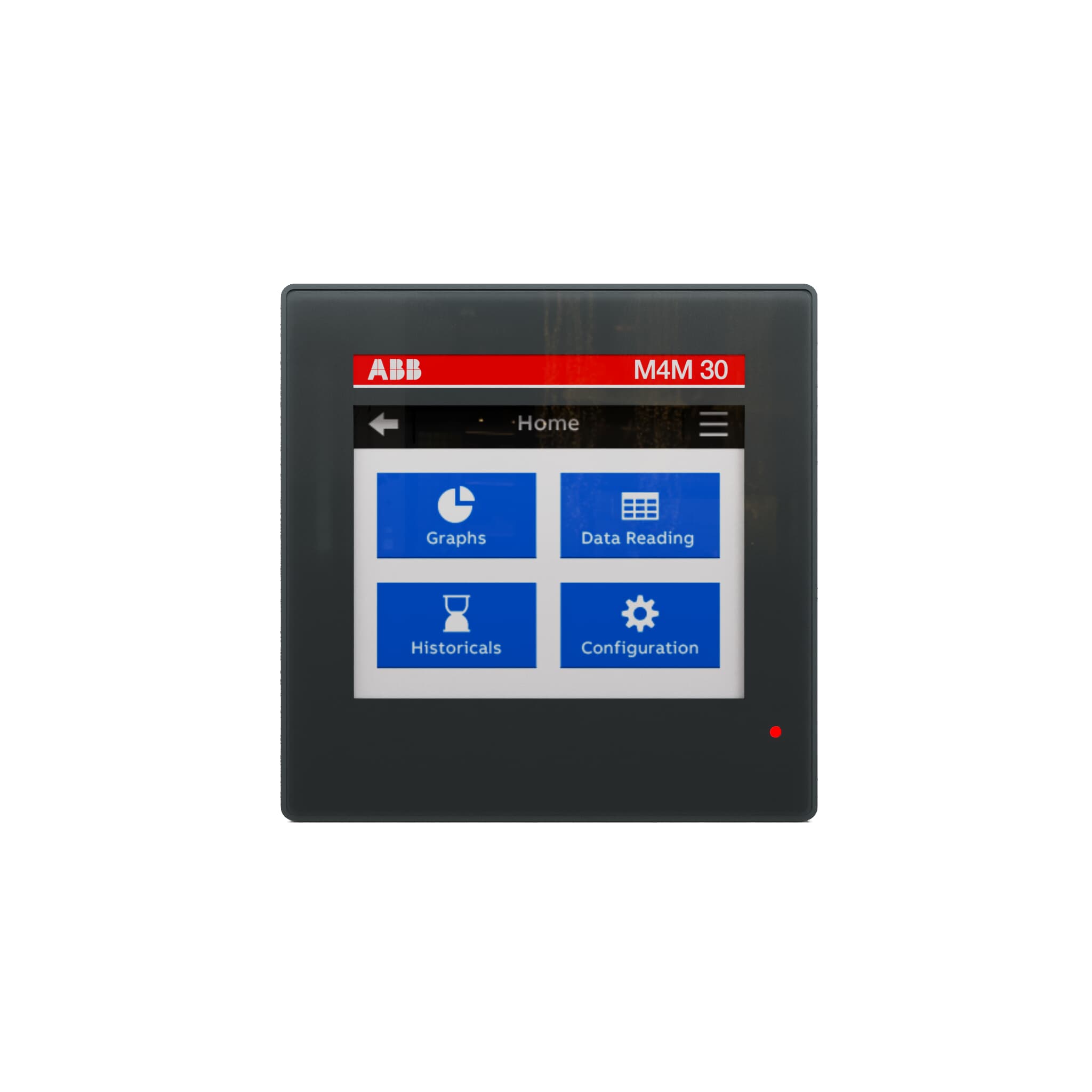

ABB M4M 30
Network analyzer for switchboards: voltage, current, power, energy and harmonics per phase.
The ABB M4M 30 is a network analyzer that measures voltage, current, power, energy and power quality per phase in switchboards. This Modbus RTU template reads all measured, average, minimum and maximum values, energy per phase and tariff and the harmonics, and lets you switch the outputs and change settings from ModbusCloud.
- Protocol
- Modbus RTU
- Connection
- RS485, 19200 baud
- Registers
- 882, read and write
- Brand
- ABB
- Key readings
- Voltage · Current · Active power · Reactive and apparent power · Power factor · Frequency · Energy · Harmonics
- Available commands
- Outputs · Current tariff · Meter settings
- Compatible models
- M4M 30 Modbus · M4M 30 I/O · M4M 30 Rogowski · M4M 30 Ethernet
- Last updated
Registers (882)
876 read, 102 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Active Energy Import Total | kWh | Read | 20480 | FC03 | uint64 |
| Active Energy Export Total | kWh | Read | 20484 | FC03 | uint64 |
| Active Energy Net Total | kWh | Read | 20488 | FC03 | int64 |
| Reactive Energy Import Total | kvarh | Read | 20492 | FC03 | uint64 |
| Reactive Energy Export Total | kvarh | Read | 20496 | FC03 | uint64 |
| Reactive Energy Net Total | kvarh | Read | |||
| Apparent Energy Import Total | kVAh | Read | |||
| Apparent Energy Export Total | kVAh | Read | |||
| Apparent Energy Net Total | kVAh | Read | |||
| CO2 Value Active Energy Import | Read | ||||
| Currency Value Active Energy Import | Read | ||||
| Active Energy Import Tariff 1 | kWh | Read | |||
| Active Energy Import Tariff 2 | kWh | Read | |||
| Active Energy Import Tariff 3 | kWh | Read | |||
| Active Energy Import Tariff 4 | kWh | Read | |||
| Active Energy Import Tariff 5 | kWh | Read | |||
| Active Energy Import Tariff 6 | kWh | Read | |||
| Active Energy Export Tariff 1 | kWh | Read | |||
| Active Energy Export Tariff 2 | kWh | Read | |||
| Active Energy Export Tariff 3 | kWh | Read | |||
| Active Energy Export Tariff 4 | kWh | Read | |||
| Active Energy Export Tariff 5 | kWh | Read | |||
| Active Energy Export Tariff 6 | kWh | Read | |||
| Reactive Energy Import Tariff 1 | kvarh | Read | |||
| Reactive Energy Import Tariff 2 | kvarh | Read | |||
| Reactive Energy Import Tariff 3 | kvarh | Read | |||
| Reactive Energy Import Tariff 4 | kvarh | Read | |||
| Reactive Energy Import Tariff 5 | kvarh | Read | |||
| Reactive Energy Import Tariff 6 | kvarh | Read | |||
| Reactive Energy Export Tariff 1 | kvarh | Read | |||
| Reactive Energy Export Tariff 2 | kvarh | Read | |||
| Reactive Energy Export Tariff 3 | kvarh | Read | |||
| Reactive Energy Export Tariff 4 | kvarh | Read | |||
| Reactive Energy Export Tariff 5 | kvarh | Read | |||
| Reactive Energy Export Tariff 6 | kvarh | Read | |||
| Active Energy Import L1 | kWh | Read | |||
| Active Energy Import L2 | kWh | Read | |||
| Active Energy Import L3 | kWh | Read | |||
| Active Energy Export L1 | kWh | Read | |||
| Active Energy Export L2 | kWh | Read | |||
| Active Energy Export L3 | kWh | Read | |||
| Active Energy Net L1 | kWh | Read | |||
| Active Energy Net L2 | kWh | Read | |||
| Active Energy Net L3 | kWh | Read | |||
| Reactive Energy Import L1 | kvarh | Read | |||
| Reactive Energy Import L2 | kvarh | Read | |||
| Reactive Energy Import L3 | kvarh | Read | |||
| Reactive Energy Export L1 | kvarh | Read | |||
| Reactive Energy Export L2 | kvarh | Read | |||
| Reactive Energy Export L3 | kvarh | Read | |||
| Reactive Energy Net L1 | kvarh | Read | |||
| Reactive Energy Net L2 | kvarh | Read | |||
| Reactive Energy Net L3 | kvarh | Read | |||
| Apparent Energy Import L1 | kVAh | Read | |||
| Apparent Energy Import L2 | kVAh | Read | |||
| Apparent Energy Import L3 | kVAh | Read | |||
| Apparent Energy Export L1 | kVAh | Read | |||
| Apparent Energy Export L2 | kVAh | Read | |||
| Apparent Energy Export L3 | kVAh | Read | |||
| Apparent Energy Net L1 | kVAh | Read | |||
| Apparent Energy Net L2 | kVAh | Read | |||
| Apparent Energy Net L3 | kVAh | Read | |||
| Three Phase System Voltage | V | Read | |||
| Phase Voltage L1 | V | Read | |||
| Phase Voltage L2 | V | Read | |||
| Phase Voltage L3 | V | Read | |||
| Line Voltage L1-L2 | V | Read | |||
| Line Voltage L3-L2 | V | Read | |||
| Line Voltage L1-L3 | V | Read | |||
| Three Phase System Current | A | Read | |||
| Current L1 | A | Read | |||
| Current L2 | A | Read | |||
| Current L3 | A | Read | |||
| Current N | A | Read | |||
| Active Power Total | W | Read | |||
| Active Power L1 | W | Read | |||
| Active Power L2 | W | Read | |||
| Active Power L3 | W | Read | |||
| Reactive Power Total | var | Read | |||
| Reactive Power L1 | var | Read | |||
| Reactive Power L2 | var | Read | |||
| Reactive Power L3 | var | Read | |||
| Apparent Power Total | VA | Read | |||
| Apparent Power L1 | VA | Read | |||
| Apparent Power L2 | VA | Read | |||
| Apparent Power L3 | VA | Read | |||
| Frequency | Hz | Read | |||
| Phase Angle Power Total | Read | ||||
| Phase Angle Power L1 | Read | ||||
| Phase Angle Power L2 | Read | ||||
| Phase Angle Power L3 | Read | ||||
| Phase Angle Voltage L1 | Read | ||||
| Phase Angle Voltage L2 | Read | ||||
| Phase Angle Voltage L3 | Read | ||||
| Phase Angle Current L1 | Read | ||||
| Phase Angle Current L2 | Read | ||||
| Phase Angle Current L3 | Read | ||||
| Current Quadrant Total | Read | ||||
| Current Quadrant L1 | Read | ||||
| Current Quadrant L2 | Read | ||||
| Current Quadrant L3 | Read | ||||
| Power Factor Total | Read | ||||
| Power Factor L1 | Read | ||||
| Power Factor L2 | Read | ||||
| Power Factor L3 | Read | ||||
| Cos Phi Total | Read | ||||
| Cos Phi L1 | Read | ||||
| Cos Phi L2 | Read | ||||
| Cos Phi L3 | Read | ||||
| Average Current L1 | A | Read | |||
| Average Current L2 | A | Read | |||
| Average Current L3 | A | Read | |||
| Average Current N | A | Read | |||
| Average Voltage L1 | V | Read | |||
| Average Voltage L2 | V | Read | |||
| Average Voltage L3 | V | Read | |||
| Average Voltage L1-L2 | V | Read | |||
| Average Voltage L2-L3 | V | Read | |||
| Average Voltage L1-L3 | V | Read | |||
| Average Active Power Total | W | Read | |||
| Average Active Power L1 | W | Read | |||
| Average Active Power L2 | W | Read | |||
| Average Active Power L3 | W | Read | |||
| Average Reactive Power Total | var | Read | |||
| Average Reactive Power L1 | var | Read | |||
| Average Reactive Power L2 | var | Read | |||
| Average Reactive Power L3 | var | Read | |||
| Average Apparent Power Total | VA | Read | |||
| Average Apparent Power L1 | VA | Read | |||
| Average Apparent Power L2 | VA | Read | |||
| Average Apparent Power L3 | VA | Read | |||
| Maximum Current L1 | A | Read | |||
| Maximum Current L2 | A | Read | |||
| Maximum Current L3 | A | Read | |||
| Maximum Current N | A | Read | |||
| Maximum Voltage L1 | V | Read | |||
| Maximum Voltage L2 | V | Read | |||
| Maximum Voltage L3 | V | Read | |||
| Maximum Voltage L1-L2 | V | Read | |||
| Maximum Voltage L2-L3 | V | Read | |||
| Maximum Voltage L1-L3 | V | Read | |||
| Maximum Active Power Total | W | Read | |||
| Maximum Active Power L1 | W | Read | |||
| Maximum Active Power L2 | W | Read | |||
| Maximum Active Power L3 | W | Read | |||
| Maximum Reactive Power Total | var | Read | |||
| Maximum Reactive Power L1 | var | Read | |||
| Maximum Reactive Power L2 | var | Read | |||
| Maximum Reactive Power L3 | var | Read | |||
| Maximum Apparent Power Total | VA | Read | |||
| Maximum Apparent Power L1 | VA | Read | |||
| Maximum Apparent Power L2 | VA | Read | |||
| Maximum Apparent Power L3 | VA | Read | |||
| Maximum Current L1 Timestamp | Read | ||||
| Maximum Current L2 Timestamp | Read | ||||
| Maximum Current L3 Timestamp | Read | ||||
| Maximum Current N Timestamp | Read | ||||
| Maximum Voltage L1 Timestamp | Read | ||||
| Maximum Voltage L2 Timestamp | Read | ||||
| Maximum Voltage L3 Timestamp | Read | ||||
| Maximum Voltage L1-L2 Timestamp | Read | ||||
| Maximum Voltage L2-L3 Timestamp | Read | ||||
| Maximum Voltage L1-L3 Timestamp | Read | ||||
| Maximum Active Power Total Timestamp | Read | ||||
| Maximum Active Power L1 Timestamp | Read | ||||
| Maximum Active Power L2 Timestamp | Read | ||||
| Maximum Active Power L3 Timestamp | Read | ||||
| Maximum Reactive Power Total Timestamp | Read | ||||
| Maximum Reactive Power L1 Timestamp | Read | ||||
| Maximum Reactive Power L2 Timestamp | Read | ||||
| Maximum Reactive Power L3 Timestamp | Read | ||||
| Maximum Apparent Power Total Timestamp | Read | ||||
| Maximum Apparent Power L1 Timestamp | Read | ||||
| Maximum Apparent Power L2 Timestamp | Read | ||||
| Maximum Apparent Power L3 Timestamp | Read | ||||
| Minimum Current L1 | A | Read | |||
| Minimum Current L2 | A | Read | |||
| Minimum Current L3 | A | Read | |||
| Minimum Current N | A | Read | |||
| Minimum Voltage L1 | V | Read | |||
| Minimum Voltage L2 | V | Read | |||
| Minimum Voltage L3 | V | Read | |||
| Minimum Voltage L1-L2 | V | Read | |||
| Minimum Voltage L2-L3 | V | Read | |||
| Minimum Voltage L1-L3 | V | Read | |||
| Minimum Active Power Total | W | Read | |||
| Minimum Active Power L1 | W | Read | |||
| Minimum Active Power L2 | W | Read | |||
| Minimum Active Power L3 | W | Read | |||
| Minimum Reactive Power Total | var | Read | |||
| Minimum Reactive Power L1 | var | Read | |||
| Minimum Reactive Power L2 | var | Read | |||
| Minimum Reactive Power L3 | var | Read | |||
| Minimum Apparent Power Total | VA | Read | |||
| Minimum Apparent Power L1 | VA | Read | |||
| Minimum Apparent Power L2 | VA | Read | |||
| Minimum Apparent Power L3 | VA | Read | |||
| Minimum Current L1 Timestamp | Read | ||||
| Minimum Current L2 Timestamp | Read | ||||
| Minimum Current L3 Timestamp | Read | ||||
| Minimum Current N Timestamp | Read | ||||
| Minimum Voltage L1 Timestamp | Read | ||||
| Minimum Voltage L2 Timestamp | Read | ||||
| Minimum Voltage L3 Timestamp | Read | ||||
| Minimum Voltage L1-L2 Timestamp | Read | ||||
| Minimum Voltage L2-L3 Timestamp | Read | ||||
| Minimum Voltage L1-L3 Timestamp | Read | ||||
| Minimum Active Power Total Timestamp | Read | ||||
| Minimum Active Power L1 Timestamp | Read | ||||
| Minimum Active Power L2 Timestamp | Read | ||||
| Minimum Active Power L3 Timestamp | Read | ||||
| Minimum Reactive Power Total Timestamp | Read | ||||
| Minimum Reactive Power L1 Timestamp | Read | ||||
| Minimum Reactive Power L2 Timestamp | Read | ||||
| Minimum Reactive Power L3 Timestamp | Read | ||||
| Minimum Apparent Power Total Timestamp | Read | ||||
| Minimum Apparent Power L1 Timestamp | Read | ||||
| Minimum Apparent Power L2 Timestamp | Read | ||||
| Minimum Apparent Power L3 Timestamp | Read | ||||
| Voltage THD L1 | % | Read | |||
| Voltage Harmonic 2 L1 | % | Read | |||
| Voltage Harmonic 3 L1 | % | Read | |||
| Voltage Harmonic 4 L1 | % | Read | |||
| Voltage Harmonic 5 L1 | % | Read | |||
| Voltage Harmonic 6 L1 | % | Read | |||
| Voltage Harmonic 7 L1 | % | Read | |||
| Voltage Harmonic 8 L1 | % | Read | |||
| Voltage Harmonic 9 L1 | % | Read | |||
| Voltage Harmonic 10 L1 | % | Read | |||
| Voltage Harmonic 11 L1 | % | Read | |||
| Voltage Harmonic 12 L1 | % | Read | |||
| Voltage Harmonic 13 L1 | % | Read | |||
| Voltage Harmonic 14 L1 | % | Read | |||
| Voltage Harmonic 15 L1 | % | Read | |||
| Voltage Harmonic 16 L1 | % | Read | |||
| Voltage Harmonic 17 L1 | % | Read | |||
| Voltage Harmonic 18 L1 | % | Read | |||
| Voltage Harmonic 19 L1 | % | Read | |||
| Voltage Harmonic 20 L1 | % | Read | |||
| Voltage Harmonic 21 L1 | % | Read | |||
| Voltage Harmonic 22 L1 | % | Read | |||
| Voltage Harmonic 23 L1 | % | Read | |||
| Voltage Harmonic 24 L1 | % | Read | |||
| Voltage Harmonic 25 L1 | % | Read | |||
| Voltage Harmonic 26 L1 | % | Read | |||
| Voltage Harmonic 27 L1 | % | Read | |||
| Voltage Harmonic 28 L1 | % | Read | |||
| Voltage Harmonic 29 L1 | % | Read | |||
| Voltage Harmonic 30 L1 | % | Read | |||
| Voltage Harmonic 31 L1 | % | Read | |||
| Voltage Harmonic 32 L1 | % | Read | |||
| Voltage Harmonic 33 L1 | % | Read | |||
| Voltage Harmonic 34 L1 | % | Read | |||
| Voltage Harmonic 35 L1 | % | Read | |||
| Voltage Harmonic 36 L1 | % | Read | |||
| Voltage Harmonic 37 L1 | % | Read | |||
| Voltage Harmonic 38 L1 | % | Read | |||
| Voltage Harmonic 39 L1 | % | Read | |||
| Voltage Harmonic 40 L1 | % | Read | |||
| Voltage THD L2 | % | Read | |||
| Voltage Harmonic 2 L2 | % | Read | |||
| Voltage Harmonic 3 L2 | % | Read | |||
| Voltage Harmonic 4 L2 | % | Read | |||
| Voltage Harmonic 5 L2 | % | Read | |||
| Voltage Harmonic 6 L2 | % | Read | |||
| Voltage Harmonic 7 L2 | % | Read | |||
| Voltage Harmonic 8 L2 | % | Read | |||
| Voltage Harmonic 9 L2 | % | Read | |||
| Voltage Harmonic 10 L2 | % | Read | |||
| Voltage Harmonic 11 L2 | % | Read | |||
| Voltage Harmonic 12 L2 | % | Read | |||
| Voltage Harmonic 13 L2 | % | Read | |||
| Voltage Harmonic 14 L2 | % | Read | |||
| Voltage Harmonic 15 L2 | % | Read | |||
| Voltage Harmonic 16 L2 | % | Read | |||
| Voltage Harmonic 17 L2 | % | Read | |||
| Voltage Harmonic 18 L2 | % | Read | |||
| Voltage Harmonic 19 L2 | % | Read | |||
| Voltage Harmonic 20 L2 | % | Read | |||
| Voltage Harmonic 21 L2 | % | Read | |||
| Voltage Harmonic 22 L2 | % | Read | |||
| Voltage Harmonic 23 L2 | % | Read | |||
| Voltage Harmonic 24 L2 | % | Read | |||
| Voltage Harmonic 25 L2 | % | Read | |||
| Voltage Harmonic 26 L2 | % | Read | |||
| Voltage Harmonic 27 L2 | % | Read | |||
| Voltage Harmonic 28 L2 | % | Read | |||
| Voltage Harmonic 29 L2 | % | Read | |||
| Voltage Harmonic 30 L2 | % | Read | |||
| Voltage Harmonic 31 L2 | % | Read | |||
| Voltage Harmonic 32 L2 | % | Read | |||
| Voltage Harmonic 33 L2 | % | Read | |||
| Voltage Harmonic 34 L2 | % | Read | |||
| Voltage Harmonic 35 L2 | % | Read | |||
| Voltage Harmonic 36 L2 | % | Read | |||
| Voltage Harmonic 37 L2 | % | Read | |||
| Voltage Harmonic 38 L2 | % | Read | |||
| Voltage Harmonic 39 L2 | % | Read | |||
| Voltage Harmonic 40 L2 | % | Read | |||
| Voltage THD L3 | % | Read | |||
| Voltage Harmonic 2 L3 | % | Read | |||
| Voltage Harmonic 3 L3 | % | Read | |||
| Voltage Harmonic 4 L3 | % | Read | |||
| Voltage Harmonic 5 L3 | % | Read | |||
| Voltage Harmonic 6 L3 | % | Read | |||
| Voltage Harmonic 7 L3 | % | Read | |||
| Voltage Harmonic 8 L3 | % | Read | |||
| Voltage Harmonic 9 L3 | % | Read | |||
| Voltage Harmonic 10 L3 | % | Read | |||
| Voltage Harmonic 11 L3 | % | Read | |||
| Voltage Harmonic 12 L3 | % | Read | |||
| Voltage Harmonic 13 L3 | % | Read | |||
| Voltage Harmonic 14 L3 | % | Read | |||
| Voltage Harmonic 15 L3 | % | Read | |||
| Voltage Harmonic 16 L3 | % | Read | |||
| Voltage Harmonic 17 L3 | % | Read | |||
| Voltage Harmonic 18 L3 | % | Read | |||
| Voltage Harmonic 19 L3 | % | Read | |||
| Voltage Harmonic 20 L3 | % | Read | |||
| Voltage Harmonic 21 L3 | % | Read | |||
| Voltage Harmonic 22 L3 | % | Read | |||
| Voltage Harmonic 23 L3 | % | Read | |||
| Voltage Harmonic 24 L3 | % | Read | |||
| Voltage Harmonic 25 L3 | % | Read | |||
| Voltage Harmonic 26 L3 | % | Read | |||
| Voltage Harmonic 27 L3 | % | Read | |||
| Voltage Harmonic 28 L3 | % | Read | |||
| Voltage Harmonic 29 L3 | % | Read | |||
| Voltage Harmonic 30 L3 | % | Read | |||
| Voltage Harmonic 31 L3 | % | Read | |||
| Voltage Harmonic 32 L3 | % | Read | |||
| Voltage Harmonic 33 L3 | % | Read | |||
| Voltage Harmonic 34 L3 | % | Read | |||
| Voltage Harmonic 35 L3 | % | Read | |||
| Voltage Harmonic 36 L3 | % | Read | |||
| Voltage Harmonic 37 L3 | % | Read | |||
| Voltage Harmonic 38 L3 | % | Read | |||
| Voltage Harmonic 39 L3 | % | Read | |||
| Voltage Harmonic 40 L3 | % | Read | |||
| Voltage THD L1-L2 | % | Read | |||
| Voltage Harmonic 2 L1-L2 | % | Read | |||
| Voltage Harmonic 3 L1-L2 | % | Read | |||
| Voltage Harmonic 4 L1-L2 | % | Read | |||
| Voltage Harmonic 5 L1-L2 | % | Read | |||
| Voltage Harmonic 6 L1-L2 | % | Read | |||
| Voltage Harmonic 7 L1-L2 | % | Read | |||
| Voltage Harmonic 8 L1-L2 | % | Read | |||
| Voltage Harmonic 9 L1-L2 | % | Read | |||
| Voltage Harmonic 10 L1-L2 | % | Read | |||
| Voltage Harmonic 11 L1-L2 | % | Read | |||
| Voltage Harmonic 12 L1-L2 | % | Read | |||
| Voltage Harmonic 13 L1-L2 | % | Read | |||
| Voltage Harmonic 14 L1-L2 | % | Read | |||
| Voltage Harmonic 15 L1-L2 | % | Read | |||
| Voltage Harmonic 16 L1-L2 | % | Read | |||
| Voltage Harmonic 17 L1-L2 | % | Read | |||
| Voltage Harmonic 18 L1-L2 | % | Read | |||
| Voltage Harmonic 19 L1-L2 | % | Read | |||
| Voltage Harmonic 20 L1-L2 | % | Read | |||
| Voltage Harmonic 21 L1-L2 | % | Read | |||
| Voltage Harmonic 22 L1-L2 | % | Read | |||
| Voltage Harmonic 23 L1-L2 | % | Read | |||
| Voltage Harmonic 24 L1-L2 | % | Read | |||
| Voltage Harmonic 25 L1-L2 | % | Read | |||
| Voltage Harmonic 26 L1-L2 | % | Read | |||
| Voltage Harmonic 27 L1-L2 | % | Read | |||
| Voltage Harmonic 28 L1-L2 | % | Read | |||
| Voltage Harmonic 29 L1-L2 | % | Read | |||
| Voltage Harmonic 30 L1-L2 | % | Read | |||
| Voltage Harmonic 31 L1-L2 | % | Read | |||
| Voltage Harmonic 32 L1-L2 | % | Read | |||
| Voltage Harmonic 33 L1-L2 | % | Read | |||
| Voltage Harmonic 34 L1-L2 | % | Read | |||
| Voltage Harmonic 35 L1-L2 | % | Read | |||
| Voltage Harmonic 36 L1-L2 | % | Read | |||
| Voltage Harmonic 37 L1-L2 | % | Read | |||
| Voltage Harmonic 38 L1-L2 | % | Read | |||
| Voltage Harmonic 39 L1-L2 | % | Read | |||
| Voltage Harmonic 40 L1-L2 | % | Read | |||
| Voltage THD L3-L2 | % | Read | |||
| Voltage Harmonic 2 L3-L2 | % | Read | |||
| Voltage Harmonic 3 L3-L2 | % | Read | |||
| Voltage Harmonic 4 L3-L2 | % | Read | |||
| Voltage Harmonic 5 L3-L2 | % | Read | |||
| Voltage Harmonic 6 L3-L2 | % | Read | |||
| Voltage Harmonic 7 L3-L2 | % | Read | |||
| Voltage Harmonic 8 L3-L2 | % | Read | |||
| Voltage Harmonic 9 L3-L2 | % | Read | |||
| Voltage Harmonic 10 L3-L2 | % | Read | |||
| Voltage Harmonic 11 L3-L2 | % | Read | |||
| Voltage Harmonic 12 L3-L2 | % | Read | |||
| Voltage Harmonic 13 L3-L2 | % | Read | |||
| Voltage Harmonic 14 L3-L2 | % | Read | |||
| Voltage Harmonic 15 L3-L2 | % | Read | |||
| Voltage Harmonic 16 L3-L2 | % | Read | |||
| Voltage Harmonic 17 L3-L2 | % | Read | |||
| Voltage Harmonic 18 L3-L2 | % | Read | |||
| Voltage Harmonic 19 L3-L2 | % | Read | |||
| Voltage Harmonic 20 L3-L2 | % | Read | |||
| Voltage Harmonic 21 L3-L2 | % | Read | |||
| Voltage Harmonic 22 L3-L2 | % | Read | |||
| Voltage Harmonic 23 L3-L2 | % | Read | |||
| Voltage Harmonic 24 L3-L2 | % | Read | |||
| Voltage Harmonic 25 L3-L2 | % | Read | |||
| Voltage Harmonic 26 L3-L2 | % | Read | |||
| Voltage Harmonic 27 L3-L2 | % | Read | |||
| Voltage Harmonic 28 L3-L2 | % | Read | |||
| Voltage Harmonic 29 L3-L2 | % | Read | |||
| Voltage Harmonic 30 L3-L2 | % | Read | |||
| Voltage Harmonic 31 L3-L2 | % | Read | |||
| Voltage Harmonic 32 L3-L2 | % | Read | |||
| Voltage Harmonic 33 L3-L2 | % | Read | |||
| Voltage Harmonic 34 L3-L2 | % | Read | |||
| Voltage Harmonic 35 L3-L2 | % | Read | |||
| Voltage Harmonic 36 L3-L2 | % | Read | |||
| Voltage Harmonic 37 L3-L2 | % | Read | |||
| Voltage Harmonic 38 L3-L2 | % | Read | |||
| Voltage Harmonic 39 L3-L2 | % | Read | |||
| Voltage Harmonic 40 L3-L2 | % | Read | |||
| Voltage THD L1-L3 | % | Read | |||
| Voltage Harmonic 2 L1-L3 | % | Read | |||
| Voltage Harmonic 3 L1-L3 | % | Read | |||
| Voltage Harmonic 4 L1-L3 | % | Read | |||
| Voltage Harmonic 5 L1-L3 | % | Read | |||
| Voltage Harmonic 6 L1-L3 | % | Read | |||
| Voltage Harmonic 7 L1-L3 | % | Read | |||
| Voltage Harmonic 8 L1-L3 | % | Read | |||
| Voltage Harmonic 9 L1-L3 | % | Read | |||
| Voltage Harmonic 10 L1-L3 | % | Read | |||
| Voltage Harmonic 11 L1-L3 | % | Read | |||
| Voltage Harmonic 12 L1-L3 | % | Read | |||
| Voltage Harmonic 13 L1-L3 | % | Read | |||
| Voltage Harmonic 14 L1-L3 | % | Read | |||
| Voltage Harmonic 15 L1-L3 | % | Read | |||
| Voltage Harmonic 16 L1-L3 | % | Read | |||
| Voltage Harmonic 17 L1-L3 | % | Read | |||
| Voltage Harmonic 18 L1-L3 | % | Read | |||
| Voltage Harmonic 19 L1-L3 | % | Read | |||
| Voltage Harmonic 20 L1-L3 | % | Read | |||
| Voltage Harmonic 21 L1-L3 | % | Read | |||
| Voltage Harmonic 22 L1-L3 | % | Read | |||
| Voltage Harmonic 23 L1-L3 | % | Read | |||
| Voltage Harmonic 24 L1-L3 | % | Read | |||
| Voltage Harmonic 25 L1-L3 | % | Read | |||
| Voltage Harmonic 26 L1-L3 | % | Read | |||
| Voltage Harmonic 27 L1-L3 | % | Read | |||
| Voltage Harmonic 28 L1-L3 | % | Read | |||
| Voltage Harmonic 29 L1-L3 | % | Read | |||
| Voltage Harmonic 30 L1-L3 | % | Read | |||
| Voltage Harmonic 31 L1-L3 | % | Read | |||
| Voltage Harmonic 32 L1-L3 | % | Read | |||
| Voltage Harmonic 33 L1-L3 | % | Read | |||
| Voltage Harmonic 34 L1-L3 | % | Read | |||
| Voltage Harmonic 35 L1-L3 | % | Read | |||
| Voltage Harmonic 36 L1-L3 | % | Read | |||
| Voltage Harmonic 37 L1-L3 | % | Read | |||
| Voltage Harmonic 38 L1-L3 | % | Read | |||
| Voltage Harmonic 39 L1-L3 | % | Read | |||
| Voltage Harmonic 40 L1-L3 | % | Read | |||
| Current THD L1 | % | Read | |||
| Current Harmonic 2 L1 | % | Read | |||
| Current Harmonic 3 L1 | % | Read | |||
| Current Harmonic 4 L1 | % | Read | |||
| Current Harmonic 5 L1 | % | Read | |||
| Current Harmonic 6 L1 | % | Read | |||
| Current Harmonic 7 L1 | % | Read | |||
| Current Harmonic 8 L1 | % | Read | |||
| Current Harmonic 9 L1 | % | Read | |||
| Current Harmonic 10 L1 | % | Read | |||
| Current Harmonic 11 L1 | % | Read | |||
| Current Harmonic 12 L1 | % | Read | |||
| Current Harmonic 13 L1 | % | Read | |||
| Current Harmonic 14 L1 | % | Read | |||
| Current Harmonic 15 L1 | % | Read | |||
| Current Harmonic 16 L1 | % | Read | |||
| Current Harmonic 17 L1 | % | Read | |||
| Current Harmonic 18 L1 | % | Read | |||
| Current Harmonic 19 L1 | % | Read | |||
| Current Harmonic 20 L1 | % | Read | |||
| Current Harmonic 21 L1 | % | Read | |||
| Current Harmonic 22 L1 | % | Read | |||
| Current Harmonic 23 L1 | % | Read | |||
| Current Harmonic 24 L1 | % | Read | |||
| Current Harmonic 25 L1 | % | Read | |||
| Current Harmonic 26 L1 | % | Read | |||
| Current Harmonic 27 L1 | % | Read | |||
| Current Harmonic 28 L1 | % | Read | |||
| Current Harmonic 29 L1 | % | Read | |||
| Current Harmonic 30 L1 | % | Read | |||
| Current Harmonic 31 L1 | % | Read | |||
| Current Harmonic 32 L1 | % | Read | |||
| Current Harmonic 33 L1 | % | Read | |||
| Current Harmonic 34 L1 | % | Read | |||
| Current Harmonic 35 L1 | % | Read | |||
| Current Harmonic 36 L1 | % | Read | |||
| Current Harmonic 37 L1 | % | Read | |||
| Current Harmonic 38 L1 | % | Read | |||
| Current Harmonic 39 L1 | % | Read | |||
| Current Harmonic 40 L1 | % | Read | |||
| Current THD L2 | % | Read | |||
| Current Harmonic 2 L2 | % | Read | |||
| Current Harmonic 3 L2 | % | Read | |||
| Current Harmonic 4 L2 | % | Read | |||
| Current Harmonic 5 L2 | % | Read | |||
| Current Harmonic 6 L2 | % | Read | |||
| Current Harmonic 7 L2 | % | Read | |||
| Current Harmonic 8 L2 | % | Read | |||
| Current Harmonic 9 L2 | % | Read | |||
| Current Harmonic 10 L2 | % | Read | |||
| Current Harmonic 11 L2 | % | Read | |||
| Current Harmonic 12 L2 | % | Read | |||
| Current Harmonic 13 L2 | % | Read | |||
| Current Harmonic 14 L2 | % | Read | |||
| Current Harmonic 15 L2 | % | Read | |||
| Current Harmonic 16 L2 | % | Read | |||
| Current Harmonic 17 L2 | % | Read | |||
| Current Harmonic 18 L2 | % | Read | |||
| Current Harmonic 19 L2 | % | Read | |||
| Current Harmonic 20 L2 | % | Read | |||
| Current Harmonic 21 L2 | % | Read | |||
| Current Harmonic 22 L2 | % | Read | |||
| Current Harmonic 23 L2 | % | Read | |||
| Current Harmonic 24 L2 | % | Read | |||
| Current Harmonic 25 L2 | % | Read | |||
| Current Harmonic 26 L2 | % | Read | |||
| Current Harmonic 27 L2 | % | Read | |||
| Current Harmonic 28 L2 | % | Read | |||
| Current Harmonic 29 L2 | % | Read | |||
| Current Harmonic 30 L2 | % | Read | |||
| Current Harmonic 31 L2 | % | Read | |||
| Current Harmonic 32 L2 | % | Read | |||
| Current Harmonic 33 L2 | % | Read | |||
| Current Harmonic 34 L2 | % | Read | |||
| Current Harmonic 35 L2 | % | Read | |||
| Current Harmonic 36 L2 | % | Read | |||
| Current Harmonic 37 L2 | % | Read | |||
| Current Harmonic 38 L2 | % | Read | |||
| Current Harmonic 39 L2 | % | Read | |||
| Current Harmonic 40 L2 | % | Read | |||
| Current THD L3 | % | Read | |||
| Current Harmonic 2 L3 | % | Read | |||
| Current Harmonic 3 L3 | % | Read | |||
| Current Harmonic 4 L3 | % | Read | |||
| Current Harmonic 5 L3 | % | Read | |||
| Current Harmonic 6 L3 | % | Read | |||
| Current Harmonic 7 L3 | % | Read | |||
| Current Harmonic 8 L3 | % | Read | |||
| Current Harmonic 9 L3 | % | Read | |||
| Current Harmonic 10 L3 | % | Read | |||
| Current Harmonic 11 L3 | % | Read | |||
| Current Harmonic 12 L3 | % | Read | |||
| Current Harmonic 13 L3 | % | Read | |||
| Current Harmonic 14 L3 | % | Read | |||
| Current Harmonic 15 L3 | % | Read | |||
| Current Harmonic 16 L3 | % | Read | |||
| Current Harmonic 17 L3 | % | Read | |||
| Current Harmonic 18 L3 | % | Read | |||
| Current Harmonic 19 L3 | % | Read | |||
| Current Harmonic 20 L3 | % | Read | |||
| Current Harmonic 21 L3 | % | Read | |||
| Current Harmonic 22 L3 | % | Read | |||
| Current Harmonic 23 L3 | % | Read | |||
| Current Harmonic 24 L3 | % | Read | |||
| Current Harmonic 25 L3 | % | Read | |||
| Current Harmonic 26 L3 | % | Read | |||
| Current Harmonic 27 L3 | % | Read | |||
| Current Harmonic 28 L3 | % | Read | |||
| Current Harmonic 29 L3 | % | Read | |||
| Current Harmonic 30 L3 | % | Read | |||
| Current Harmonic 31 L3 | % | Read | |||
| Current Harmonic 32 L3 | % | Read | |||
| Current Harmonic 33 L3 | % | Read | |||
| Current Harmonic 34 L3 | % | Read | |||
| Current Harmonic 35 L3 | % | Read | |||
| Current Harmonic 36 L3 | % | Read | |||
| Current Harmonic 37 L3 | % | Read | |||
| Current Harmonic 38 L3 | % | Read | |||
| Current Harmonic 39 L3 | % | Read | |||
| Current Harmonic 40 L3 | % | Read | |||
| Current THD N | % | Read | |||
| Current Harmonic 2 N | % | Read | |||
| Current Harmonic 3 N | % | Read | |||
| Current Harmonic 4 N | % | Read | |||
| Current Harmonic 5 N | % | Read | |||
| Current Harmonic 6 N | % | Read | |||
| Current Harmonic 7 N | % | Read | |||
| Current Harmonic 8 N | % | Read | |||
| Current Harmonic 9 N | % | Read | |||
| Current Harmonic 10 N | % | Read | |||
| Current Harmonic 11 N | % | Read | |||
| Current Harmonic 12 N | % | Read | |||
| Current Harmonic 13 N | % | Read | |||
| Current Harmonic 14 N | % | Read | |||
| Current Harmonic 15 N | % | Read | |||
| Current Harmonic 16 N | % | Read | |||
| Current Harmonic 17 N | % | Read | |||
| Current Harmonic 18 N | % | Read | |||
| Current Harmonic 19 N | % | Read | |||
| Current Harmonic 20 N | % | Read | |||
| Current Harmonic 21 N | % | Read | |||
| Current Harmonic 22 N | % | Read | |||
| Current Harmonic 23 N | % | Read | |||
| Current Harmonic 24 N | % | Read | |||
| Current Harmonic 25 N | % | Read | |||
| Current Harmonic 26 N | % | Read | |||
| Current Harmonic 27 N | % | Read | |||
| Current Harmonic 28 N | % | Read | |||
| Current Harmonic 29 N | % | Read | |||
| Current Harmonic 30 N | % | Read | |||
| Current Harmonic 31 N | % | Read | |||
| Current Harmonic 32 N | % | Read | |||
| Current Harmonic 33 N | % | Read | |||
| Current Harmonic 34 N | % | Read | |||
| Current Harmonic 35 N | % | Read | |||
| Current Harmonic 36 N | % | Read | |||
| Current Harmonic 37 N | % | Read | |||
| Current Harmonic 38 N | % | Read | |||
| Current Harmonic 39 N | % | Read | |||
| Current Harmonic 40 N | % | Read | |||
| Unbalance Line Voltage | % | Read | |||
| Unbalance Phase Voltage | % | Read | |||
| Unbalance Current | % | Read | |||
| Output 1 | Read and write | ||||
| Output 2 | Read and write | ||||
| Output 3 | Read and write | ||||
| Output 4 | Read and write | ||||
| Output 5 | Read and write | ||||
| Output 6 | Read and write | ||||
| Input 1 | Read | ||||
| Input 2 | Read | ||||
| Input 3 | Read | ||||
| Input 4 | Read | ||||
| Input 5 | Read | ||||
| Input 6 | Read | ||||
| Input Counter 1 | Read | ||||
| Input Counter 2 | Read | ||||
| Input Counter 3 | Read | ||||
| Input Counter 4 | Read | ||||
| Input Counter 5 | Read | ||||
| Input Counter 6 | Read | ||||
| Serial Number | Read | ||||
| Firmware Version | Read | ||||
| Product Type ID | Read | ||||
| Slave ID | Read | ||||
| Product Tag Name | Read and write | ||||
| Type Designation | Read | ||||
| Product Name | Read | ||||
| Date Time Word 1 | Read and write | ||||
| Date Time Word 2 | Read and write | ||||
| Date Time Word 3 | Read and write | ||||
| Day Of Week | Read | ||||
| Active Day Type | Read | ||||
| Active Season | Read | ||||
| Current Tariff | Read and write | ||||
| Error Flags | Read | ||||
| Information Flags | Read | ||||
| Warning Flags | Read | ||||
| Alarm Flags | Read | ||||
| CT Ratio Numerator | Read and write | ||||
| CT Ratio Denominator | Read and write | ||||
| VT Ratio Numerator | Read and write | ||||
| VT Ratio Denominator | Read and write | ||||
| CT Neutral Ratio Numerator | Read and write | ||||
| CT Neutral Ratio Denominator | Read and write | ||||
| IO Port 1 Function | Read and write | ||||
| IO Port 2 Function | Read and write | ||||
| IO Port 3 Function | Read and write | ||||
| IO Port 4 Function | Read and write | ||||
| IO Port 5 Function | Read and write | ||||
| IO Port 6 Function | Read and write | ||||
| Pulse Instance | Read and write | ||||
| Pulse Output Port Number | Read and write | ||||
| Pulse Output Energy OBIS Word 1 | Read and write | ||||
| Pulse Output Energy OBIS Word 2 | Read and write | ||||
| Pulse Output Energy OBIS Word 3 | Read and write | ||||
| Pulse Frequency Active Energy | Read and write | ||||
| Pulse Frequency Reactive Energy | Read and write | ||||
| Pulse Length | ms | Read and write | |||
| Turn Off Pulse Output | Read and write | ||||
| Load Profile Channel Number | Read and write | ||||
| Load Profile Parameter OBIS Word 1 | Read and write | ||||
| Load Profile Parameter OBIS Word 2 | Read and write | ||||
| Load Profile Parameter OBIS Word 3 | Read and write | ||||
| Load Profile Interval | min | Read and write | |||
| Load Profile Max Snapshots | Read and write | ||||
| Demand Number Of Quantities | Read and write | ||||
| Demand Parameter Number | Read | ||||
| Demand Parameter OBIS Word 1 | Read and write | ||||
| Demand Parameter OBIS Word 2 | Read and write | ||||
| Demand Parameter OBIS Word 3 | Read and write | ||||
| Demand Level OBIS Word 1 | Read and write | ||||
| Demand Level OBIS Word 2 | Read and write | ||||
| Demand Level OBIS Word 3 | Read and write | ||||
| Demand Number Of Levels | Read and write | ||||
| Demand Interval | min | Read and write | |||
| Demand Sub Interval | min | Read and write | |||
| Demand Period | Read and write | ||||
| Snapshot Number Of Channels | Read and write | ||||
| Snapshot Channel Number | Read | ||||
| Snapshot Quantity OBIS Word 1 | Read and write | ||||
| Snapshot Quantity OBIS Word 2 | Read and write | ||||
| Snapshot Quantity OBIS Word 3 | Read and write | ||||
| Snapshot Period | Read and write | ||||
| Alarm Channel Number | Read and write | ||||
| Alarm Quantity OBIS Word 1 | Read and write | ||||
| Alarm Quantity OBIS Word 2 | Read and write | ||||
| Alarm Quantity OBIS Word 3 | Read and write | ||||
| Alarm Threshold | Read and write | ||||
| Alarm Hysteresis | % | Read and write | |||
| Alarm Delay | s | Read and write | |||
| Alarm Type | Read and write | ||||
| Alarm Action | Read and write | ||||
| Complex Alarm Channel Number | Read and write | ||||
| Complex Alarm Component 1 | Read and write | ||||
| Complex Alarm Component 2 | Read and write | ||||
| Complex Alarm Component 3 | Read and write | ||||
| Complex Alarm Component 4 | Read and write | ||||
| Complex Alarm Operators | Read and write | ||||
| Complex Alarm Action | Read and write | ||||
| Tariff Source | Read and write | ||||
| Tariff Input Configuration | Read and write | ||||
| Tariff Number Of Day Profiles | Read and write | ||||
| Tariff Day Profile Number | Read | ||||
| Tariff Number Of Actions | Read and write | ||||
| Tariff Action Number | Read | ||||
| Tariff Action | Read and write | ||||
| CO2 Conversion Factor | Read and write | ||||
| Currency Conversion Factor | Read and write | ||||
| LED Source | Read and write | ||||
| Wires | Read and write | ||||
| DST Start | Read and write | ||||
| DST End | Read and write | ||||
| DST Enabled | Read and write | ||||
| Modbus RTU Address | Read and write | ||||
| Modbus RTU Baud Rate | Read and write | ||||
| Modbus RTU Parity | Read and write | ||||
| Modbus TCP DHCP | Read and write | ||||
| Modbus TCP IP Address | Read and write | ||||
| Modbus TCP Subnet Mask | Read and write | ||||
| Modbus TCP Gateway | Read and write | ||||
| Modbus TCP Port | Read and write | ||||
| Up Counter | Read | ||||
| Down Counter | Read | ||||
| Down Counter Reset Value | Read and write | ||||
| Display Brightness | Read and write | ||||
| Display Language | Read and write | ||||
| Bluetooth Enable | Read and write | ||||
| Pulse Input Ratio | Read and write | ||||
| Pulse Input Unit | Read and write | ||||
| Reset Logs | Write | ||||
| Reset Historicals | Write | ||||
| Reset Timer | Write | ||||
| Reset Energy | Write | ||||
| Reset Factory Settings | Write | ||||
| Reset Max Min Average | Write | ||||
| Active Power Total (1 W Resolution) | W | Read | |||
| Active Power L1 (1 W Resolution) | W | Read | |||
| Active Power L2 (1 W Resolution) | W | Read | |||
| Active Power L3 (1 W Resolution) | W | Read | |||
| Reactive Power Total (1 var Resolution) | var | Read | |||
| Reactive Power L1 (1 var Resolution) | var | Read | |||
| Reactive Power L2 (1 var Resolution) | var | Read | |||
| Reactive Power L3 (1 var Resolution) | var | Read | |||
| Apparent Power Total (1 VA Resolution) | VA | Read | |||
| Apparent Power L1 (1 VA Resolution) | VA | Read | |||
| Apparent Power L2 (1 VA Resolution) | VA | Read | |||
| Apparent Power L3 (1 VA Resolution) | VA | Read | |||
| Average Active Power Total (1 W Resolution) | W | Read | |||
| Average Active Power L1 (1 W Resolution) | W | Read | |||
| Average Active Power L2 (1 W Resolution) | W | Read | |||
| Average Active Power L3 (1 W Resolution) | W | Read | |||
| Average Reactive Power Total (1 var Resolution) | var | Read | |||
| Average Reactive Power L1 (1 var Resolution) | var | Read | |||
| Average Reactive Power L2 (1 var Resolution) | var | Read | |||
| Average Reactive Power L3 (1 var Resolution) | var | Read | |||
| Average Apparent Power Total (1 VA Resolution) | VA | Read | |||
| Average Apparent Power L1 (1 VA Resolution) | VA | Read | |||
| Average Apparent Power L2 (1 VA Resolution) | VA | Read | |||
| Average Apparent Power L3 (1 VA Resolution) | VA | Read | |||
| Maximum Active Power Total (1 W Resolution) | W | Read | |||
| Maximum Active Power L1 (1 W Resolution) | W | Read | |||
| Maximum Active Power L2 (1 W Resolution) | W | Read | |||
| Maximum Active Power L3 (1 W Resolution) | W | Read | |||
| Maximum Reactive Power Total (1 var Resolution) | var | Read | |||
| Maximum Reactive Power L1 (1 var Resolution) | var | Read | |||
| Maximum Reactive Power L2 (1 var Resolution) | var | Read | |||
| Maximum Reactive Power L3 (1 var Resolution) | var | Read | |||
| Maximum Apparent Power Total (1 VA Resolution) | VA | Read | |||
| Maximum Apparent Power L1 (1 VA Resolution) | VA | Read | |||
| Maximum Apparent Power L2 (1 VA Resolution) | VA | Read | |||
| Maximum Apparent Power L3 (1 VA Resolution) | VA | Read | |||
| Minimum Active Power Total (1 W Resolution) | W | Read | |||
| Minimum Active Power L1 (1 W Resolution) | W | Read | |||
| Minimum Active Power L2 (1 W Resolution) | W | Read | |||
| Minimum Active Power L3 (1 W Resolution) | W | Read | |||
| Minimum Reactive Power Total (1 var Resolution) | var | Read | |||
| Minimum Reactive Power L1 (1 var Resolution) | var | Read | |||
| Minimum Reactive Power L2 (1 var Resolution) | var | Read | |||
| Minimum Reactive Power L3 (1 var Resolution) | var | Read | |||
| Minimum Apparent Power Total (1 VA Resolution) | VA | Read | |||
| Minimum Apparent Power L1 (1 VA Resolution) | VA | Read | |||
| Minimum Apparent Power L2 (1 VA Resolution) | VA | Read | |||
| Minimum Apparent Power L3 (1 VA Resolution) | VA | Read | |||
| 3-Phase System Voltage (M2M) | V | Read | |||
| Phase Voltage L1 (M2M) | V | Read | |||
| Phase Voltage L2 (M2M) | V | Read | |||
| Phase Voltage L3 (M2M) | V | Read | |||
| Line Voltage L1-L2 (M2M) | V | Read | |||
| Line Voltage L2-L3 (M2M) | V | Read | |||
| Line Voltage L3-L1 (M2M) | V | Read | |||
| 3-Phase System Current (M2M) | A | Read | |||
| Line Current L1 (M2M) | A | Read | |||
| Line Current L2 (M2M) | A | Read | |||
| Line Current L3 (M2M) | A | Read | |||
| 3-Phase System Power Factor (M2M) | Read | ||||
| Power Factor L1 (M2M) | Read | ||||
| Power Factor L2 (M2M) | Read | ||||
| Power Factor L3 (M2M) | Read | ||||
| 3-Phase System Cos Phi (M2M) | Read | ||||
| Phase Cos Phi L1 (M2M) | Read | ||||
| Phase Cos Phi L2 (M2M) | Read | ||||
| Phase Cos Phi L3 (M2M) | Read | ||||
| 3-Phase System Apparent Power (M2M) | VA | Read | |||
| Apparent Power L1 (M2M) | VA | Read | |||
| Apparent Power L2 (M2M) | VA | Read | |||
| Apparent Power L3 (M2M) | VA | Read | |||
| 3-Phase System Active Power (M2M) | W | Read | |||
| Active Power L1 (M2M) | W | Read | |||
| Active Power L2 (M2M) | W | Read | |||
| Active Power L3 (M2M) | W | Read | |||
| 3-Phase System Reactive Power (M2M) | var | Read | |||
| Reactive Power L1 (M2M) | var | Read | |||
| Reactive Power L2 (M2M) | var | Read | |||
| Reactive Power L3 (M2M) | var | Read | |||
| Active Energy | kWh | Read | |||
| Reactive Energy | kvarh | Read | |||
| Frequency (M2M) | Hz | Read | |||
| Max Line Current L1 (M2M) | A | Read | |||
| Max Line Current L2 (M2M) | A | Read | |||
| Max Line Current L3 (M2M) | A | Read | |||
| Max 3-Phase System Active Power (M2M) | W | Read | |||
| Max 3-Phase System Apparent Power (M2M) | VA | Read | |||
| 3-Phase System Active Power 15 Min Average (M2M) | W | Read | |||
| 3-Phase System Apparent Power 15 Min Average (M2M) | VA | Read | |||
| Active Energy L1 (M2M) | kWh | Read | |||
| Active Energy L2 (M2M) | kWh | Read | |||
| Active Energy L3 (M2M) | kWh | Read | |||
| Reactive Energy L1 (M2M) | kvarh | Read | |||
| Reactive Energy L2 (M2M) | kvarh | Read | |||
| Reactive Energy L3 (M2M) | kvarh | Read | |||
| Max 3-Phase System Active Power 15 Min Average (M2M) | W | Read | |||
| Voltage THD L1 (M2M) | % | Read | |||
| Voltage THD L2 (M2M) | % | Read | |||
| Voltage THD L3 (M2M) | % | Read | |||
| Current THD L1 (M2M) | % | Read | |||
| Current THD L2 (M2M) | % | Read | |||
| Current THD L3 (M2M) | % | Read | |||
| Max Active Power 15 Min Average L1 (M2M) | W | Read | |||
| Max Active Power 15 Min Average L2 (M2M) | W | Read | |||
| Max Active Power 15 Min Average L3 (M2M) | W | Read | |||
| Max 3-Phase System Apparent Power 15 Min Average (M2M) | VA | Read | |||
| Max Apparent Power 15 Min Average L1 (M2M) | VA | Read | |||
| Max Apparent Power 15 Min Average L2 (M2M) | VA | Read | |||
| Max Apparent Power 15 Min Average L3 (M2M) | VA | Read | |||
| 3-Phase System Apparent Energy (M2M) | kVAh | Read | |||
| Apparent Energy L1 (M2M) | kVAh | Read | |||
| Apparent Energy L2 (M2M) | kVAh | Read | |||
| Apparent Energy L3 (M2M) | kVAh | Read | |||
| 3-Phase System Generated Active Energy (M2M) | kWh | Read | |||
| Generated Active Energy L1 (M2M) | kWh | Read | |||
| Generated Active Energy L2 (M2M) | kWh | Read | |||
| Generated Active Energy L3 (M2M) | kWh | Read | |||
| 3-Phase System Generated Reactive Energy (M2M) | kvarh | Read | |||
| Generated Reactive Energy L1 (M2M) | kvarh | Read | |||
| Generated Reactive Energy L2 (M2M) | kvarh | Read | |||
| Generated Reactive Energy L3 (M2M) | kvarh | Read | |||
| 3-Phase System Generated Apparent Energy (M2M) | kVAh | Read | |||
| Generated Apparent Energy L1 (M2M) | kVAh | Read | |||
| Generated Apparent Energy L2 (M2M) | kVAh | Read | |||
| Generated Apparent Energy L3 (M2M) | kVAh | Read | |||
| Current Transformer Primary (CT) (M2M) | Read | ||||
| Voltage Transformer Primary (VT) (M2M) | Read |
Loading registers…

Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Build a dashboard per switchboard with voltage, current and power per phase.
- Get an alarm when the neutral current rises above a limit, a sign of unbalanced single-phase loads.
- Report monthly consumption per tariff and per phase from the energy counters.
- Track voltage and current harmonics per phase to see the effect of drives and LED lighting.
- Check the highest current and power of the past period before you add a new load.
- Switch an output of the meter from ModbusCloud, for example to drop a load during a peak.
Installation
Connect A and B of the M4M 30 RS485 plug to the RS485 port of your ModbusCloud Gateway with twisted pair cable, and C to the data common if you have a spare wire. Terminate both bus ends with 120 ohm.
On the M4M 30 open Menu, Communication, Modbus RTU and set address 1, baud rate 19200 and even parity, or note the values already set there.
In ModbusCloud, add a Modbus device (RTU) with the same address, baud rate and parity, 8 data bits and 1 stop bit, and import this template.
Check that the phase voltages show the mains voltage and the frequency is about 50 Hz.
Things to watch for
The M4M 30 does not answer. What should I check?
Compare address, baud rate and parity in Menu, Communication, Modbus RTU with the settings in ModbusCloud. Then swap A and B and check the 120 ohm termination at both ends of the bus. Keep stubs short.
Some values read 65535 or 32767. What does that mean?
The meter returns these values for a quantity it does not measure, for example a phase that is not used in the selected network type. Check the network type and wiring on the meter.
Why are some values missing on my meter?
Not every value exists on every version. The extra inputs and outputs are only on the I/O version, the neutral transformer ratio is not on the Rogowski version, and some values need recent firmware. Values the meter does not have stay empty or show an error.
Several meters share one RS485 bus. Anything special?
Give each M4M its own address from 1 to 247 and the same baud rate and parity. Use line topology with termination at both ends only, keep power cables away from the bus cable, and make sure the ModbusCloud Gateway is the only master on the line.
What should I watch out for when writing?
Writing changes the meter directly. A new address, baud rate or parity ends communication until ModbusCloud uses the same setting. The reset registers clear energy, logs or min and max values and cannot be undone, so only write them when you are sure.
Want to see how it works?
