Condair RS II
Resistive steam humidifier with status, errors, steam output and humidity setpoints over Modbus RTU.

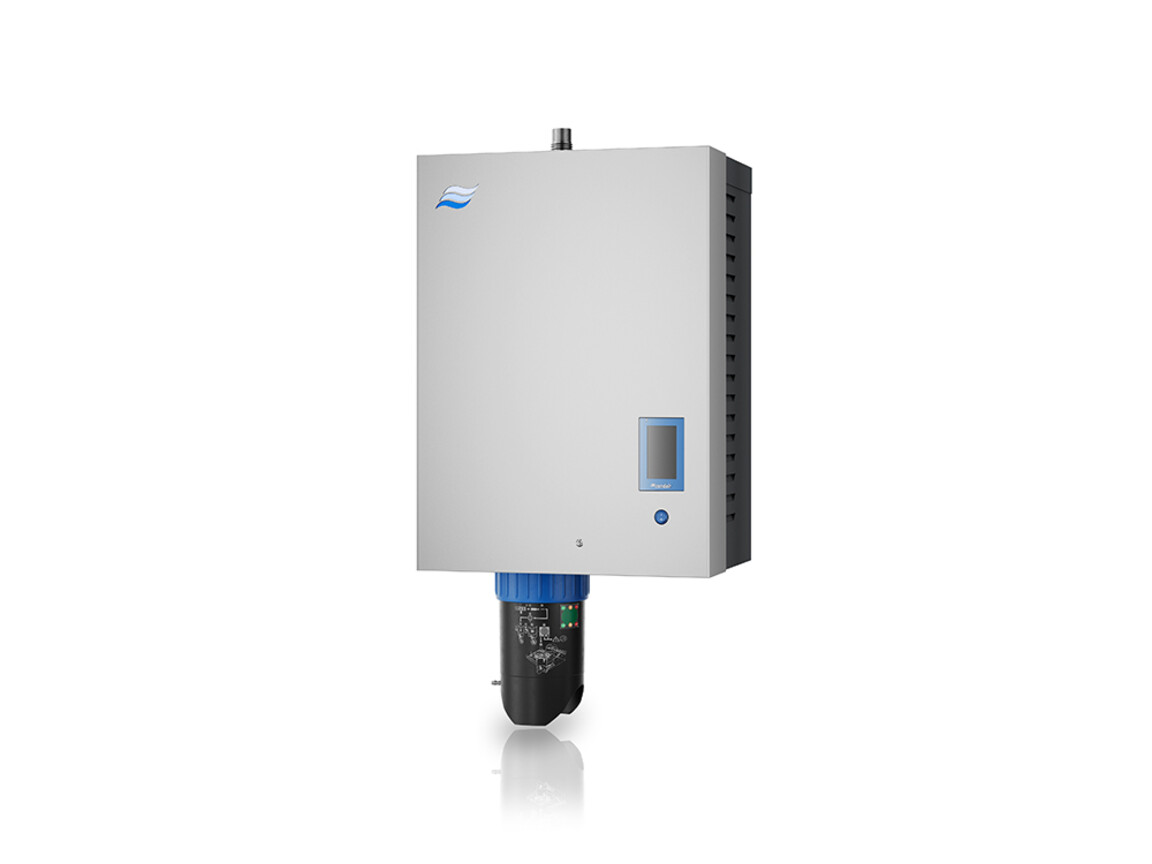

The Condair RS II is a resistive steam humidifier that adds steam to air handling units and rooms where exact humidity matters. This Modbus RTU template reads cylinder status, errors, steam output, demand and maintenance hours, and lets you change humidity setpoints, capacity limitation and drain commands from ModbusCloud.
- Protocol
- Modbus RTU
- Connection
- RS485, 19200 baud
- Registers
- 59, read and write
- Brand
- Condair
- Key readings
- Cylinder status · Error code · Steam output · System demand · Water level · Operating hours · Hours to next maintenance
- Available commands
- Humidity setpoint · Proportional band · Integral time · Capacity limitation · Demand via Modbus · Remote drain
- Compatible models
- Condair RS II
- Last updated
Registers (59)
59 read, 12 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Actual Humidification Capacity | Read | 2047 | FC04 | float32 | |
| Actual Capacity Cylinder A | Read | 2049 | FC04 | float32 | |
| Actual Capacity Cylinder B | Read | 2051 | FC04 | float32 | |
| System Demand | % | Read | 2057 | FC04 | float32 |
| Control Signal CH1 | % | Read | 2053 | FC04 | float32 |
| Control Signal CH2 | % | Read | |||
| Device Status Cylinder A | Read | ||||
| Device Status Cylinder B | Read | ||||
| Maintenance and Error Status | Read | ||||
| Error Warning Code | Read | ||||
| Overheat Switch Cylinder A | Read | ||||
| Overheat Switch Cylinder B | Read | ||||
| External Safety Loop Cylinder A | Read | ||||
| External Safety Loop Cylinder B | Read | ||||
| Security Floater Cylinder A | Read | ||||
| Security Floater Cylinder B | Read | ||||
| Heating Voltage Cylinder A | Read | ||||
| Heating Voltage Cylinder B | Read | ||||
| Blower Pack Cylinder A | Read | ||||
| Blower Pack Cylinder B | Read | ||||
| Main Contactor Cylinder A | Read | ||||
| Main Contactor Cylinder B | Read | ||||
| Relay Pump Cylinder A | Read | ||||
| Relay Pump Cylinder B | Read | ||||
| Inlet Valve 1 Cylinder A | Read | ||||
| Inlet Valve 1 Cylinder B | Read | ||||
| Inlet Valve 2 Cylinder A | Read | ||||
| Inlet Valve 2 Cylinder B | Read | ||||
| Drain Cooling Valve Cylinder A | Read | ||||
| Drain Cooling Valve Cylinder B | Read | ||||
| Complete Drain Valve Cylinder A | Read | ||||
| Complete Drain Valve Cylinder B | Read | ||||
| Leakage Sensor | Read | ||||
| Furnace Fan or Ext Pipe Flush | Read | ||||
| Level Cylinder A | Read | ||||
| Level Cylinder B | Read | ||||
| Nominal Voltage | Read | ||||
| Max Humidification Capacity | Read | ||||
| Max Capacity Cylinder A | Read | ||||
| Max Capacity Cylinder B | Read | ||||
| Operating Hours | h | Read | |||
| Operating Hours Cylinder A | h | Read | |||
| Operating Hours Cylinder B | h | Read | |||
| Next Small Maintenance Cylinder A | h | Read | |||
| Next Small Maintenance Cylinder B | h | Read | |||
| Next Extended Maintenance Cylinder A | h | Read | |||
| Next Extended Maintenance Cylinder B | h | Read | |||
| Setpoint CH1 | % | Read and write | |||
| Setpoint CH2 | % | Read and write | |||
| P-Band CH1 | % | Read and write | |||
| P-Band CH2 | % | Read and write | |||
| I-Time CH1 | min | Read and write | |||
| I-Time CH2 | min | Read and write | |||
| Capacity Limitation | % | Read and write | |||
| Humidity or Demand via Modbus CH1 | % | Read and write | |||
| Humidity or Demand via Modbus CH2 | % | Read and write | |||
| Remote Drain | Read and write | ||||
| Remote Drain Cylinder A | Read and write | ||||
| Remote Drain Cylinder B | Read and write |
Loading registers…

Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Get an alert when the maintenance and error status reaches error or the error code is not 0.
- Plan maintenance from the hours to the next small and extended maintenance per cylinder.
- Log steam output and system demand to see how hard the humidifier works through the seasons.
- Change the humidity setpoint or capacity limitation remotely from ModbusCloud.
- Check the safety chain, such as overheat switches and floaters, when the unit stops.
Installation
Connect Data+, Data- and GND of the Integrated Controller to RS485 A, B and GND of the ModbusCloud Gateway; terminate the line at both ends.
Check the Modbus settings on the controller: address 10, 19200 baud and even parity by default. Restart the controller after a change.
In ModbusCloud, add a Modbus device (RTU) with the same address and settings, then import this template.
Check that the cylinder status and steam output show plausible values while the unit humidifies.
Read the current setpoints before you change them, and write one value at a time.
Things to watch for
The humidifier does not answer on the bus. What should I check?
Compare address, baud rate and parity with the controller (10, 19200, even by default) and restart the controller after changing them. Swap Data+ and Data- if nothing answers. The interface is not galvanically isolated, so connect GND as well, and terminate the line at both ends.
Steam output shows 0 to 160, but in which unit?
The controller reports steam capacity in kg/h with the metric setting and in lb/hr with the imperial setting. The template shows the number as the controller sends it; check the unit setting on the display.
The floats show strange, very large or tiny numbers. Why?
The template expects the register sequence MSR first, the factory setting. If the controller is set to LSR first, the two halves of every float are swapped. Set it back to MSR first in the Modbus settings.
The unit stops with a warning after I sent the demand over Modbus.
When the signal source is Modbus, the controller expects a new humidity or demand value within the signal timeout, 300 seconds by default. ModbusCloud writes at most once per minute through an automation, so set the timeout long enough or keep the signal on the analog input.
What happens when I write to the remote drain registers?
Writing 1 starts draining the cylinder or both cylinders and stops humidification; writing 0 stops draining. While draining the register shows the progress in %, and 100 means off. Only use it when nobody depends on the humidification at that moment.
