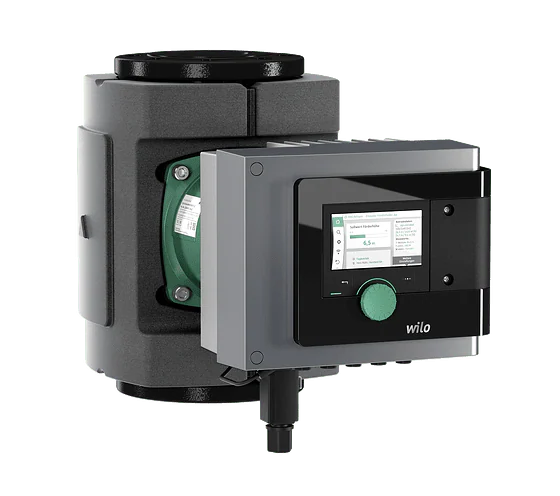

Wilo Stratos MAXO
Smart circulator pump: pressure, flow, power, temperatures, heat energy and errors.
The Wilo Stratos MAXO is a smart circulator pump that moves water in heating, cooling and drinking water systems in buildings. This Modbus RTU template reads pressure, flow, power, temperatures, energy and error codes, and lets you switch the pump, choose the control mode and set the setpoint from ModbusCloud.
- Protocol
- Modbus RTU
- Connection
- RS485, 9600 baud
- Registers
- 85, read and write
- Brand
- Wilo
- Key readings
- Pressure · Flow · Power input · Speed · Fluid temperature · Heating and cooling energy · Error code
- Available commands
- Pump on and off · Control mode · Setpoint · Preset values · PID parameters
- Compatible models
- Stratos MAXO · Stratos MAXO-D · Stratos MAXO-Z
- Last updated
Registers (85)
85 read, 20 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Duty Point Setpoint | % | Read and write | 1 | FC03 / FC06 | int16 |
| Pump Command | Read and write | 40 | FC03 / FC06 | uint16 | |
| Control Function Setpoint | Read and write | 42 | FC03 / FC06 | uint16 | |
| Dp-c f(T) Tmin | K | Read and write | 44 | FC03 / FC06 | uint16 |
| Dp-c f(T) Tmax | K | Read and write | 45 | FC03 / FC06 | uint16 |
| Dp-c f(T) Dp at Tmin | Read and write | ||||
| Dp-c f(T) Dp at Tmax | Read and write | ||||
| Bus Command Timer | Read and write | ||||
| Temperature Reference T1 | K | Read and write | |||
| Temperature Reference T2 | K | Read and write | |||
| Sensor Signal | Read and write | ||||
| Bus Command Timer Timeout | s | Read and write | |||
| Setpoint Signal Source Setpoint | Read and write | ||||
| Duty Point Preset | % | Read and write | |||
| Control Function Preset | Read and write | ||||
| Pump Command Preset | Read and write | ||||
| Setpoint Signal Source Preset | Read and write | ||||
| PID Kp | Read and write | ||||
| PID Ti | s | Read and write | |||
| PID Td | s | Read and write | |||
| Pressure | Read | ||||
| Flow | m³/h | Read | |||
| Energy Consumption | kWh | Read | |||
| Power Input | W | Read | |||
| Operation Time | h | Read | |||
| Speed | rpm | Read | |||
| Fluid Temperature | K | Read | |||
| Operating Hours Twin Pump | h | Read | |||
| Control Function | Read | ||||
| Pump Module | Read | ||||
| Pump Type | Read | ||||
| Speed Max | rpm | Read | |||
| Speed Min | rpm | Read | |||
| Pressure Max Dp-c | Read | ||||
| Pressure Min Dp-c | Read | ||||
| Pressure Max Dp-v | Read | ||||
| Pressure Min Dp-v | Read | ||||
| Flow Max | m³/h | Read | |||
| Flow Min | m³/h | Read | |||
| Supported Errors | Read | ||||
| Supported Service Messages | Read | ||||
| Power Input Max | W | Read | |||
| Service Message | Read | ||||
| Error Type | Read | ||||
| Error Message | Read | ||||
| Pump Status | Read | ||||
| State Diagnostics | Read | ||||
| Slave Pressure | Read | ||||
| Slave Flow | m³/h | Read | |||
| Slave Energy Consumption | kWh | Read | |||
| Slave Power Input | W | Read | |||
| Slave Operation Time | h | Read | |||
| Slave Speed | rpm | Read | |||
| Slave Pump Module | Read | ||||
| Slave Pump Type | Read | ||||
| Slave Error Type | Read | ||||
| Slave Pump Status | Read | ||||
| Duty Point | % | Read | |||
| Duty Point Max | % | Read | |||
| Duty Point Min | % | Read | |||
| Duty Point 100 Percent Value | Read | ||||
| Duty Point Units | Read | ||||
| Setpoint Signal Source | Read | ||||
| Heating Power | W | Read | |||
| Cooling Power | W | Read | |||
| Heating Energy Resettable | kWh | Read | |||
| Cooling Energy Resettable | kWh | Read | |||
| Heating Energy Total | kWh | Read | |||
| Cooling Energy Total | kWh | Read | |||
| Flow Temperature | K | Read | |||
| Return Temperature | K | Read | |||
| Voltage Input | V | Read | |||
| Analog In 1 Value | Read | ||||
| Analog In 2 Value | Read | ||||
| Duty Point Effective | % | Read | |||
| Effective Pump Command | Read | ||||
| Operation Status | Read | ||||
| Override Status | Read | ||||
| Heartbeat Count | Read | ||||
| System Time | s | Read | |||
| CIF Firmware Version | Read | ||||
| Vendor ID | Read | ||||
| Pump Type CAN | Read | ||||
| Slave Pump Type CAN | Read | ||||
| User Trouble Code | Read |
Loading registers…

Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Show pressure, flow and power of every circulator pump in a building on one dashboard.
- Get an email when the error code is not 0 or the pump reports a motor or supply voltage error.
- Track heating and cooling energy per circuit from the heat meter values and keep 365 days of history.
- Change the setpoint or switch the pump to night mode remotely with an automation on a schedule.
- Compare operating hours of both pumps of a twin pump to plan maintenance.
Installation
Plug the Wilo CIF-Module Modbus RTU into the module slot of the Stratos MAXO.
Connect A and B of the module to the RS485 port of the ModbusCloud Gateway and switch on the termination at the end of the bus.
In the pump menu, set the Modbus address, baud rate and data frame, for example address 1, 9600 baud, 8N1.
In ModbusCloud, add a Modbus device (RTU) with the same settings and import this template.
Check that pressure, speed and the CIF firmware version show plausible values.
Things to watch for
The pump does not answer. What should I check?
Check that the CIF module is fitted and that address, baud rate and data frame in the pump menu match the device in ModbusCloud. Swap A and B if nothing answers, and switch on the 120 ohm termination only at the ends of the bus.
Why are the heat meter values or the error code always 0?
Heating and cooling power and energy, flow and return temperatures and the display error code need CIF module firmware 3.00 or later and, for the heat meter, the matching temperature sensors. Read the CIF firmware version to check.
Why do the temperatures look 273 degrees too high?
The pump reports temperatures in kelvin. Subtract 273.15 to get °C, or set your dashboard and alarm thresholds in kelvin.
What should I keep in mind when writing to the pump?
The pump follows the bus only while the bus command timer is set; after the timeout it falls back to the preset values. Write the pump command, control mode and setpoint together, check the effective values afterwards, and do not override a building management system that also controls the pump.
