Hager Modbus templates
All 10 available Hager templates for ModbusCloud.
Monitor Hager ECA and ECR DIN-rail energy meters, single-phase and three-phase, via Modbus RTU.
- Templates
- 10
- Connection
- Modbus RTU and TCP
- Registers
- 1 to 231 per template
- Compatible models
- ECR310D · Hager ECA380D · ECA180D · ECR140D · ECR180D · ECR300C · ECR301C · ECR302C
- Last updated
Hager templates
6 via Modbus RTU, 4 via Modbus TCP
- Hager ECR310D Three-phase energy meterMonitors three-phase energy consumption and production via Modbus RTU.Modbus TCP11 read, 0 write
Hager ECA380D Three-phase energy meterMonitors three-phase energy consumption and power quality via Modbus RTU.Modbus RTU25 read, 0 write
Hager ECA180D One-phase energy meterMonitors single-phase energy consumption via Modbus RTUModbus RTU8 read, 0 write

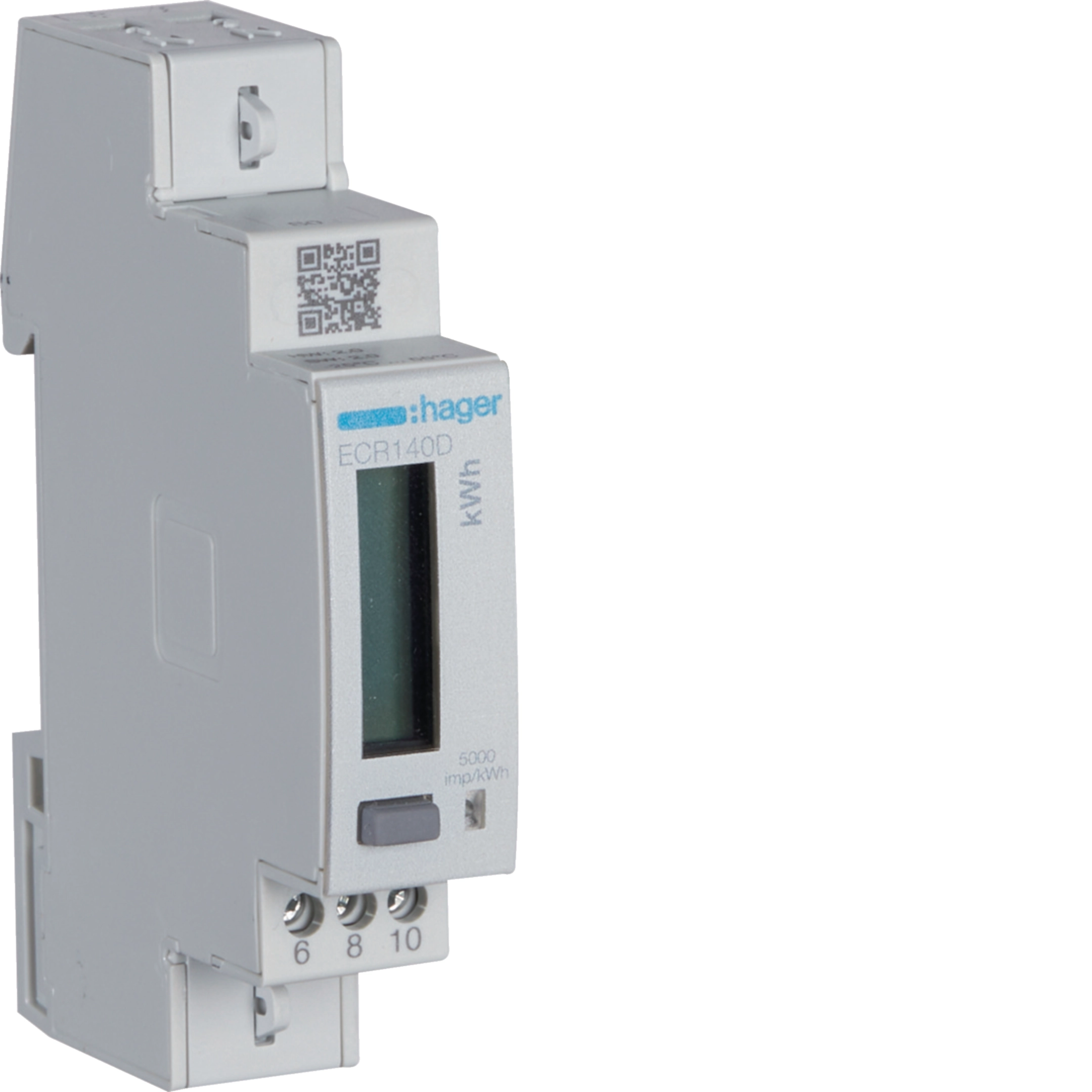

Hager ECR140DSingle-phase 40 A MID kWh meter with eight tariffs, read and switched over RS485.Modbus RTU79 read, 3 write

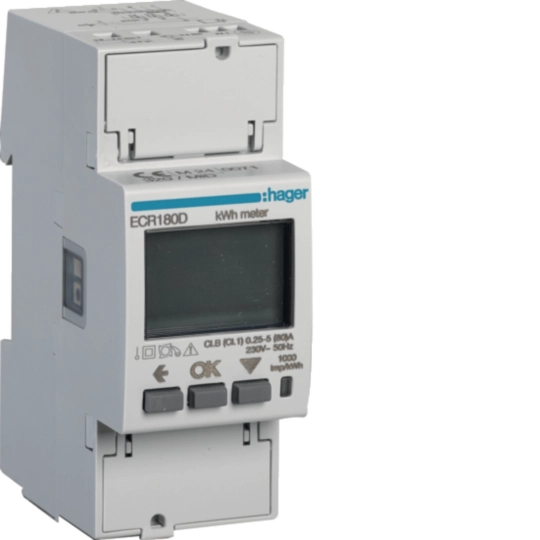

Hager ECR180DSingle-phase 80 A MID energy meter that counts import and export on up to 8 tariffs.Modbus RTU97 read, 4 write
Hager ECR300CThree-phase MID energy meter via CTs: voltage, current, power and energy per tariff and per phase.Modbus RTU229 read, 4 write
Hager ECR380DModbus RTU61 read, 0 write- Hager Hager XEM with EMC flow R2 (battery)Modbus TCP2 read, 0 write
- Hager Hager XEM with EMC flow R2 (grid)Modbus TCP4 read, 0 write
- Hager Hager XEM with EMC flow R2 (pv)Modbus TCP1 read, 0 write
The scan recognises these devices
Connect them to RS485 or the network and start a scan in the portal.
Gateway
Portal
Incl. 4G data up to 30 MB per month
Excl. VAT. White label customer portal included. All prices
Order your first gateway100-day money-back guaranteeIf the gateway fails to connect to a Modbus device from our template library, you get your money back.
Hager is a French-German manufacturer of electrical distribution components used widely in residential and commercial installations. The 3 Hager Modbus RTU templates in our library cover the ECA180D single-phase energy meter, the ECA380D three-phase energy meter with import/export counters, and the ECR310D three-phase energy meter with 11 read-only registers covering active and reactive energy (consumed and produced).
With ModbusCloud and these Hager Modbus RTU templates you read voltage, current, active and reactive power, energy (import and export where supported), frequency, and power factor. The ECR310D adds per-phase active power and apparent power readings, useful for unbalanced-load diagnosis in commercial distribution. Both three-phase meters support PV self-consumption reporting through their import/export split.
All 3 Hager templates are free to browse. Import one into your ModbusCloud portal to meter a residential main distribution, a commercial tenant circuit, or a PV self-consumption installation.
What you can read out
- Per-phase voltage, current and power
- Imported and exported active energy
- Reactive energy (consumed and produced)
- Apparent power per phase (ECR310D)
- Power factor and frequency
Typical installations
- Residential main distribution metering
- Commercial tenant-circuit sub-metering
- PV self-consumption energy reporting
