ORNO Modbus templates
All 5 available ORNO templates for ModbusCloud.
Monitor Orno OR-WE single-phase and three-phase DIN-rail energy meters via Modbus RTU.
- Templates
- 5
- Connection
- Modbus RTU and TCP
- Registers
- 4 to 15 per template
- Compatible models
- OR-WE-516 · OR-WE-417 · OR-WE-517 · OR-WE-514 · OR-WE-504
- Last updated
ORNO templates
4 via Modbus RTU, 1 via Modbus TCP
- Orno OR-WE-516 Energy MeterReads energy data from Orno OR-WE-516 3-phase bidirectional meter via Modbus RTU.Modbus RTU12 read, 0 write
Orno OR-WE-417 3-pahse power meterMonitors bidirectional 3-phase power consumption via Modbus TCP.Modbus TCP15 read, 0 write

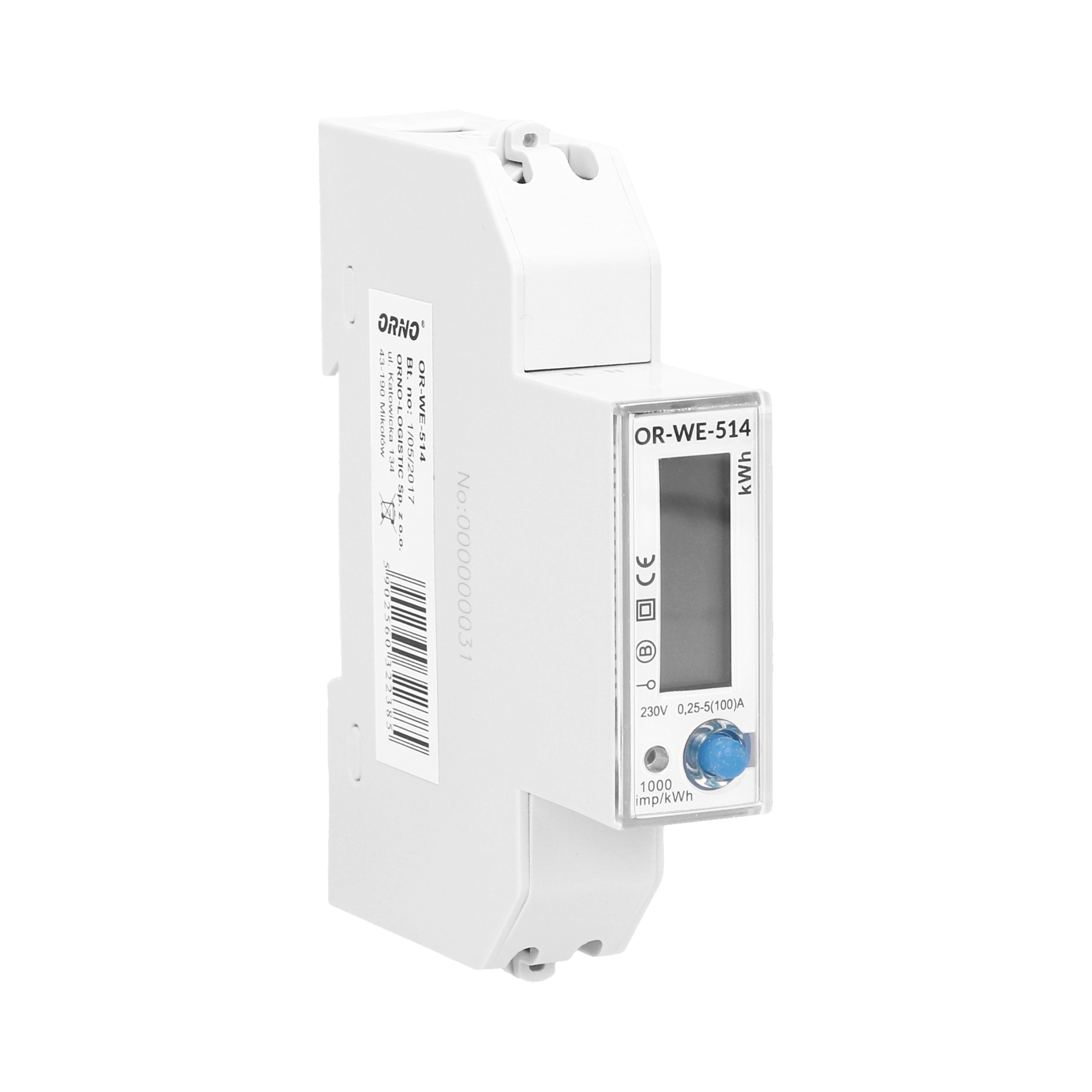

Orno OR-WE-514Reads power, energy, voltage and current from a 1-phase energy meter.Modbus RTU4 read, 0 write
Orno OR-WE-504 Energy MeterReads energy values from a single-phase Orno OR-WE-504 energy meter via Modbus RTU.Modbus RTU5 read, 0 write
Orno OR-WE-514Monitors single-phase energy metering via Modbus RTU on a DIN-rail module.Modbus RTU12 read, 1 write
The scan recognises these devices
Connect them to RS485 or the network and start a scan in the portal.
Gateway
Portal
Incl. 4G data up to 30 MB per month
Excl. VAT. White label customer portal included. All prices
Order your first gateway100-day money-back guaranteeIf the gateway fails to connect to a Modbus device from our template library, you get your money back.
Orno is a Polish manufacturer of electrical installation components, with the OR-WE series of DIN-rail energy meters covering both single-phase and three-phase installations for sub-metering and billing. The 5 Orno Modbus RTU templates in our library cover the OR-WE-504 single-phase meter, the OR-WE-514 single-phase 100 A meter, the OR-WE-417 three-phase power meter with bi-directional metering, and the OR-WE-516 three-phase MID-certified bi-directional meter (max 80 A).
With ModbusCloud and these Orno Modbus RTU templates you read per-phase voltage, current, active power, reactive power, apparent power, power factor, frequency, and imported/exported active energy totals. The OR-WE-516 and OR-WE-417 expose separate import and export energy counters for PV self-consumption billing; MID certification on the 516 makes it suitable for official kWh invoicing. S0 output rate and device-configuration registers round out the template for commissioning use.
All 5 Orno templates are free to browse. Import one into your ModbusCloud portal to sub-meter a tenant, track EV charging energy, or log PV export energy alongside other Modbus assets.
What you can read out
- Per-phase voltage, current and active power
- Reactive, apparent and total power
- Imported and exported active energy
- Power factor and frequency
- S0 output rate (configurable)
Typical installations
- Tenant sub-metering in residential and mixed-use buildings
- PV export metering for self-consumption billing
- EV charger energy logging on MID-certified meters
