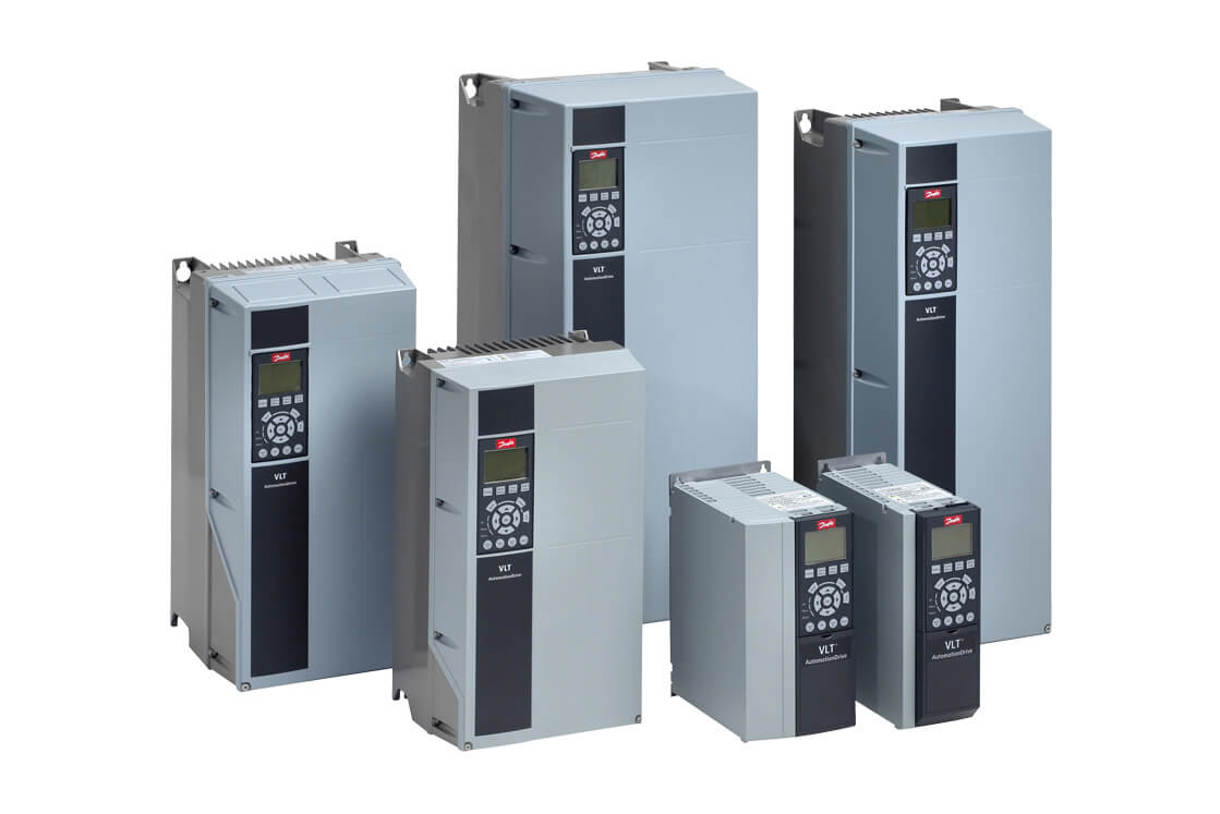

Danfoss VLT AutomationDrive FC 302
Frequency converter for industrial motors with readouts, alarms, status word and all drive parameters.
The Danfoss VLT AutomationDrive FC 302 is a frequency converter for motors in industry and machine building. This Modbus RTU template reads power, current, frequency, speed, alarms and the status word, and lets you set the control word, the bus reference and drive parameters from ModbusCloud.
- Protocol
- Modbus RTU
- Connection
- RS485, 9600 baud
- Registers
- 1172, read and write
- Brand
- Danfoss
- Key readings
- Motor power · Motor current · Output frequency · Motor speed · Torque · DC link voltage · Alarm word · Status word
- Available commands
- Control word · Bus reference · Preset reference · Ramp times
- Compatible models
- FC 302 · FC 301 (same parameter numbering, fewer parameters)
- Last updated
Registers (1172)
1172 read, 877 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Control Word (16-00) | Read | 15999 | FC03 | uint16 | |
| Reference [Unit] (16-01) | Read | 16009 | FC03 | int32 | |
| Reference % (16-02) | % | Read | 16019 | FC03 | int16 |
| Status Word (16-03) | Read | 16029 | FC03 | uint16 | |
| Main Actual Value [%] (16-05) | % | Read | 16049 | FC03 | int16 |
| Actual Position (16-06) | Read | ||||
| Target Position (16-07) | Read | ||||
| Position Error (16-08) | Read | ||||
| Customer Readout (16-09) | Read | ||||
| Power [kW] (16-10) | W | Read | |||
| Power [hp] (16-11) | Read | ||||
| Motor Voltage (16-12) | V | Read | |||
| Frequency (16-13) | Hz | Read | |||
| Motor Current (16-14) | A | Read | |||
| Frequency [%] (16-15) | % | Read | |||
| Torque [Nm] (16-16) | Nm | Read | |||
| Speed [RPM] (16-17) | rpm | Read | |||
| Motor Thermal (16-18) | % | Read | |||
| Thermistor Sensor Temperature (16-19) | °C | Read | |||
| Motor Angle (16-20) | Read | ||||
| Torque [%] High Res. (16-21) | % | Read | |||
| Torque [%] (16-22) | % | Read | |||
| Motor Shaft Power [kW] (16-23) | W | Read | |||
| Calibrated Stator Resistance (16-24) | Ω | Read | |||
| Torque [Nm] High (16-25) | Nm | Read | |||
| Angle Error (16-28) | Read | ||||
| DC Link Voltage (16-30) | V | Read | |||
| Brake Energy/s (16-32) | W | Read | |||
| Brake Energy Average (16-33) | W | Read | |||
| Heatsink Temp. (16-34) | °C | Read | |||
| Inverter Thermal (16-35) | % | Read | |||
| Inv. Nom. Current (16-36) | A | Read and write | |||
| Inv. Max. Current (16-37) | A | Read and write | |||
| SL Controller State (16-38) | Read | ||||
| Control Card Temp. (16-39) | °C | Read | |||
| Logging Buffer Full (16-40) | Read and write | ||||
| Service Log Counter (16-42) | Read | ||||
| Timed Actions Status (16-43) | Read | ||||
| Speed Error [RPM] (16-44) | rpm | Read | |||
| Motor Phase U Current (16-45) | A | Read | |||
| Motor Phase V Current (16-46) | A | Read | |||
| Motor Phase W Current (16-47) | A | Read | |||
| Speed Ref. After Ramp [RPM] (16-48) | rpm | Read | |||
| Current Fault Source (16-49) | Read | ||||
| External Reference (16-50) | Read | ||||
| Pulse Reference (16-51) | Read | ||||
| Feedback[Unit] (16-52) | Read | ||||
| Digi Pot Reference (16-53) | Read | ||||
| Feedback [RPM] (16-57) | rpm | Read | |||
| Digital Input (16-60) | Read | ||||
| Terminal 53 Switch Setting (16-61) | Read | ||||
| Analog Input 53 (16-62) | Read | ||||
| Terminal 54 Switch Setting (16-63) | Read | ||||
| Analog Input 54 (16-64) | Read | ||||
| Analog Output 42 [mA] (16-65) | mA | Read | |||
| Digital Output [bin] (16-66) | Read | ||||
| Freq. Input #29 [Hz] (16-67) | Hz | Read | |||
| Freq. Input #33 [Hz] (16-68) | Hz | Read | |||
| Pulse Output #27 [Hz] (16-69) | Hz | Read | |||
| Pulse Output #29 [Hz] (16-70) | Hz | Read | |||
| Relay Output [bin] (16-71) | Read | ||||
| Counter A (16-72) | Read | ||||
| Counter B (16-73) | Read | ||||
| Prec. Stop Counter (16-74) | Read | ||||
| Analog In X30/11 (16-75) | Read | ||||
| Analog In X30/12 (16-76) | Read | ||||
| Analog Out X30/8 [mA] (16-77) | mA | Read | |||
| Analog Out X45/1 [mA] (16-78) | mA | Read | |||
| Analog Out X45/3 [mA] (16-79) | mA | Read | |||
| Fieldbus CTW 1 (16-80) | Read | ||||
| Fieldbus Sync. REF (16-81) | Read and write | ||||
| Fieldbus REF 1 (16-82) | Read | ||||
| Fieldbus Pos. REF (16-83) | Read and write | ||||
| Comm. Option STW (16-84) | Read | ||||
| FC Port CTW 1 (16-85) | Read | ||||
| FC Port REF 1 (16-86) | Read | ||||
| Bus Readout Alarm/Warning (16-87) | Read | ||||
| Fieldbus Torque FF (16-88) | Read and write | ||||
| Configurable Alarm/Warning Word (16-89) | Read | ||||
| Alarm Word (16-90) | Read | ||||
| Alarm Word 2 (16-91) | Read | ||||
| Warning Word (16-92) | Read | ||||
| Warning Word 2 (16-93) | Read | ||||
| Ext. Status Word (16-94) | Read | ||||
| Ext. Status Word 2 (16-95) | Read | ||||
| Maintenance Word (16-96) | Read | ||||
| Alarm Word 3 (16-97) | Read | ||||
| Warning Word 3 (16-98) | Read | ||||
| Ext. Status Word 3 (16-99) | Read | ||||
| Encoders Connected (17-00) | Read and write | ||||
| Standby Encoder (17-01) | Read and write | ||||
| Signal Type (17-10) | Read and write | ||||
| Resolution (PPR) (17-11) | Read and write | ||||
| Protocol Selection (17-20) | Read and write | ||||
| Resolution (Positions/Rev) (17-21) | Read and write | ||||
| Multiturn Revolutions (17-22) | Read and write | ||||
| SSI Data Length (17-24) | Read and write | ||||
| Clock Rate (17-25) | Read and write | ||||
| SSI Data Format (17-26) | Read and write | ||||
| SSI Status Bits (17-28) | Read and write | ||||
| HIPERFACE Baudrate (17-34) | Read and write | ||||
| Fieldbus Sync. Delta (17-40) | Read and write | ||||
| Fieldbus Profile Velocity (17-41) | Read and write | ||||
| Fieldbus Velocity FF. (17-42) | Read and write | ||||
| Fieldbus Acceleration FF. (17-43) | Read and write | ||||
| Fieldbus Target Velocity (17-44) | Read and write | ||||
| Poles (17-50) | Read and write | ||||
| Input Voltage (17-51) | V | Read and write | |||
| Input Frequency (17-52) | Read and write | ||||
| Transformation Ratio (17-53) | Read and write | ||||
| Encoder Sim. Resolution (17-56) | Read and write | ||||
| Encoder Sim. Resolution Adv. (17-58) | Read and write | ||||
| Resolver Interface (17-59) | Read and write | ||||
| Feedback Direction (17-60) | Read and write | ||||
| Feedback Signal Monitoring (17-61) | Read and write | ||||
| SSI Status (17-66) | Read | ||||
| Raw Inc. Quad Counter (17-67) | Read | ||||
| Raw Abs. Pos. Low (17-68) | Read | ||||
| Raw Abs. Pos. High (17-69) | Read | ||||
| Position Unit (17-70) | Read and write | ||||
| Position Unit Scale (17-71) | Read and write | ||||
| Position Unit Numerator (17-72) | Read and write | ||||
| Position Unit Denominator (17-73) | Read and write | ||||
| Position Offset (17-74) | Read and write | ||||
| Position Recovery at Power-up (17-75) | Read and write | ||||
| Position Axis Mode (17-76) | Read and write | ||||
| Position Feedback Mode (17-77) | Read and write | ||||
| Active Position Counter (17-78) | Read and write | ||||
| Fieldbus Pos. Vel. Accel. Ref. Type (17-79) | Read and write | ||||
| Homing Function (17-80) | Read and write | ||||
| Home Sync Function (17-81) | Read and write | ||||
| Home Position (17-82) | Read and write | ||||
| Homing Speed (17-83) | rpm | Read and write | |||
| Homing Torque Limit (17-84) | % | Read and write | |||
| Homing Timeout (17-85) | s | Read and write | |||
| Homing Flag Behavior (17-86) | Read and write | ||||
| Homing Activation (17-87) | Read and write | ||||
| Master Home Position (17-88) | Read and write | ||||
| Absolute Position Mode (17-90) | Read and write | ||||
| Relative Position Mode (17-91) | Read and write | ||||
| Position Control Selection (17-92) | Read and write | ||||
| Master Offset Selection (17-93) | Read and write | ||||
| Rotary Absolute Direction (17-94) | Read and write | ||||
| Offset Execution Distance (17-95) | Read and write | ||||
| Execution Distance Relation (17-96) | Read and write | ||||
| Number of CAM Cycles (17-97) | Read and write | ||||
| CAM Cycles Start Delay (17-98) | Read and write | ||||
| Maintenance Log: Item (18-00) | Read | ||||
| Maintenance Log: Action (18-01) | Read | ||||
| Maintenance Log: Time (18-02) | s | Read | |||
| Maintenance Log: Date and Time (18-03) | Read | ||||
| Mech Brake Count (18-04) | Read | ||||
| Emergency Mode Log: Event (18-10) | Read | ||||
| Emergency Mode Log: Time (18-11) | s | Read | |||
| Emergency Mode Log: Date and Time (18-12) | Read | ||||
| Parameter Number (18-13) | Read | ||||
| Parameter Index (18-14) | Read | ||||
| Change Time (18-15) | Read | ||||
| Operating Hours (18-16) | Read | ||||
| Running Hours (18-17) | Read | ||||
| Value Before Change as Integer (18-18) | Read | ||||
| Value Before Change (18-19) | Read | ||||
| Commanded Position (18-20) | Read | ||||
| Master Position (18-21) | Read | ||||
| Virtual Master Pos. (18-23) | Read | ||||
| Marker Pos. Offset (18-24) | Read | ||||
| Latched Actual Pos. (18-25) | Read | ||||
| Actual Velocity [pu/s] (18-26) | Read | ||||
| Safe Opt. Speed (18-27) | rpm | Read and write | |||
| Safe Opt. Meas. Speed (18-28) | rpm | Read and write | |||
| Safe Opt. Speed Error (18-29) | rpm | Read and write | |||
| Analog Input X48/2 [mA] (18-36) | mA | Read | |||
| Temp. Input X48/4 (18-37) | Read | ||||
| Temp. Input X48/7 (18-38) | Read | ||||
| Temp. Input X48/10 (18-39) | Read | ||||
| Analog Input X49/1 (18-40) | Read | ||||
| Analog Input X49/3 (18-41) | Read | ||||
| Analog Input X49/5 (18-42) | Read | ||||
| Analog Input X49/7 (18-43) | Read | ||||
| Analog Input X49/9 (18-44) | Read | ||||
| Analog Input X49/11 (18-45) | Read | ||||
| X49 Digital Output [bin] (18-46) | Read | ||||
| Last Warning (18-47) | Read | ||||
| Last Warning Count (18-48) | Read | ||||
| Active Alarm Numbers (18-55) | Read | ||||
| Active Warning Numbers (18-56) | Read | ||||
| Digital Input 2 (18-60) | Read | ||||
| Power Based Speed Limit (18-64) | rpm | Read | |||
| AMA Status (18-65) | Read | ||||
| Actual Switching Frequency (18-66) | Read | ||||
| Alarm Word 4 (18-67) | Read | ||||
| Warning Word 4 (18-68) | Read | ||||
| Mains Voltage (18-70) | V | Read | |||
| Mains Frequency (18-71) | Hz | Read | |||
| Mains Imbalance (18-72) | % | Read | |||
| Worst Inrush (18-73) | Read | ||||
| Inrush Mode (18-74) | Read | ||||
| Rectifier DC Volt (18-75) | V | Read | |||
| Mains Voltage 2 (18-76) | V | Read | |||
| Mains Frequency 2 (18-77) | Hz | Read | |||
| Mains Imbalance 2 (18-78) | % | Read | |||
| Rectifier DC Volt. 2 (18-79) | V | Read | |||
| Service Word (18-86) | Read | ||||
| Mode of Operation Display (18-89) | Read and write | ||||
| Process PID Error (18-90) | % | Read | |||
| Process PID Output (18-91) | % | Read | |||
| Process PID Clamped Output (18-92) | % | Read | |||
| Process PID Gain Scaled Output (18-93) | % | Read | |||
| Expected Time to Ramp Down (18-98) | s | Read | |||
| Speed Torque FF. [Nm] (18-99) | Nm | Read | |||
| Status Word Coil 33 Control Ready | Read | ||||
| Status Word Coil 34 Drive Ready | Read | ||||
| Status Word Coil 35 Coasting Stop Or Safety Closed | Read | ||||
| Status Word Coil 36 Alarm | Read | ||||
| Status Word Coil 40 Warning | Read | ||||
| Status Word Coil 41 At Reference | Read | ||||
| Status Word Coil 42 Hand Or Auto Mode | Read | ||||
| Status Word Coil 43 In Frequency Range | Read | ||||
| Status Word Coil 44 Running | Read | ||||
| Status Word Coil 46 Voltage Warning | Read | ||||
| Status Word Coil 47 Current Limit | Read | ||||
| Status Word Coil 48 Thermal Warning | Read | ||||
| Main Actual Value Coil 49 | Read | ||||
| Main Actual Value Coil 50 | Read | ||||
| Main Actual Value Coil 51 | Read | ||||
| Main Actual Value Coil 52 | Read | ||||
| Main Actual Value Coil 53 | Read | ||||
| Main Actual Value Coil 54 | Read | ||||
| Main Actual Value Coil 55 | Read | ||||
| Main Actual Value Coil 56 | Read | ||||
| Main Actual Value Coil 57 | Read | ||||
| Main Actual Value Coil 58 | Read | ||||
| Main Actual Value Coil 59 | Read | ||||
| Main Actual Value Coil 60 | Read | ||||
| Main Actual Value Coil 61 | Read | ||||
| Main Actual Value Coil 62 | Read | ||||
| Main Actual Value Coil 63 | Read | ||||
| Main Actual Value Coil 64 | Read | ||||
| Status Word STW | Read | ||||
| Main Actual Value MAV | Read | ||||
| Control Word CTW | Read and write | ||||
| Bus Reference REF | Read and write | ||||
| Last Error Code | Read | ||||
| Parameter Index | Read and write | ||||
| Control Word Coil 01 Preset Reference LSB | Read and write | ||||
| Control Word Coil 02 Preset Reference MSB | Read and write | ||||
| Control Word Coil 03 DC Brake | Read and write | ||||
| Control Word Coil 04 Coast Stop | Read and write | ||||
| Control Word Coil 05 Quick Stop | Read and write | ||||
| Control Word Coil 06 Freeze Frequency | Read and write | ||||
| Control Word Coil 07 Ramp Stop Or Start | Read and write | ||||
| Control Word Coil 08 Reset | Read and write | ||||
| Control Word Coil 09 Jog | Read and write | ||||
| Control Word Coil 10 Ramp Select | Read and write | ||||
| Control Word Coil 11 Data Valid | Read and write | ||||
| Control Word Coil 12 Relay 1 | Read and write | ||||
| Control Word Coil 13 Relay 2 | Read and write | ||||
| Control Word Coil 14 Setup Select LSB | Read and write | ||||
| Control Word Coil 15 Setup Select MSB | Read and write | ||||
| Control Word Coil 16 Reversing | Read and write | ||||
| Bus Reference Coil 17 | Read and write | ||||
| Bus Reference Coil 18 | Read and write | ||||
| Bus Reference Coil 19 | Read and write | ||||
| Bus Reference Coil 20 | Read and write | ||||
| Bus Reference Coil 21 | Read and write | ||||
| Bus Reference Coil 22 | Read and write | ||||
| Bus Reference Coil 23 | Read and write | ||||
| Bus Reference Coil 24 | Read and write | ||||
| Bus Reference Coil 25 | Read and write | ||||
| Bus Reference Coil 26 | Read and write | ||||
| Bus Reference Coil 27 | Read and write | ||||
| Bus Reference Coil 28 | Read and write | ||||
| Bus Reference Coil 29 | Read and write | ||||
| Bus Reference Coil 30 | Read and write | ||||
| Bus Reference Coil 31 | Read and write | ||||
| Bus Reference Coil 32 | Read and write | ||||
| Parameter Write Control | Read and write | ||||
| Language (0-01) | Read and write | ||||
| Motor Speed Unit (0-02) | Read and write | ||||
| Regional Settings (0-03) | Read and write | ||||
| Operating State at Power-up (Hand) (0-04) | Read and write | ||||
| Active Set-up (0-10) | Read and write | ||||
| Edit Set-up (0-11) | Read and write | ||||
| This Set-up Linked to (0-12) | Read and write | ||||
| Readout: Linked Set-ups (0-13) | Read | ||||
| Readout: Edit Set-ups/Channel (0-14) | Read | ||||
| Readout: Actual Setup (0-15) | Read | ||||
| Display Line 1.1 Small (0-20) | Read and write | ||||
| My Personal Menu (0-25) | Read and write | ||||
| Unit for User-defined Readout (0-30) | Read and write | ||||
| Min Value of User-defined Readout (0-31) | Read and write | ||||
| Custom Readout Max Value (0-32) | Read and write | ||||
| Source of User-defined Readout (0-33) | Read and write | ||||
| System Use Notification Text (0-34) | Read and write | ||||
| Display Text 1 (0-37) | Read and write | ||||
| Display Text 2 (0-38) | Read and write | ||||
| Display Text 3 (0-39) | Read and write | ||||
| [Hand On] Key on LCP (0-40) | Read and write | ||||
| [Off] Key on LCP (0-41) | Read and write | ||||
| [Auto On] Key on LCP (0-42) | Read and write | ||||
| [Reset] Key on LCP (0-43) | Read and write | ||||
| [Off/Reset] Key on LCP (0-44) | Read and write | ||||
| [Drive Bypass] Key on LCP (0-45) | Read and write | ||||
| LCP Copy (0-50) | Read and write | ||||
| Set-up Copy (0-51) | Read and write | ||||
| Main Menu Password (0-60) | Read and write | ||||
| Access to Main Menu w/o Password (0-61) | Read and write | ||||
| Personal Menu Password (0-65) | Read and write | ||||
| Access to Personal Menu w/o Password (0-66) | Read and write | ||||
| Bus Password Access (0-67) | Read and write | ||||
| Safety Parameters Password (0-68) | Read and write | ||||
| Password Protection of Safety Parameters (0-69) | Read and write | ||||
| Date and Time (0-70) | Read and write | ||||
| Date Format (0-71) | Read and write | ||||
| Time Format (0-72) | Read and write | ||||
| Time Zone Offset (0-73) | min | Read and write | |||
| DST/Summertime (0-74) | Read and write | ||||
| Last Power Off Time (0-75) | Read | ||||
| DST/Summertime Start (0-76) | Read and write | ||||
| DST/Summertime End (0-77) | Read and write | ||||
| Clock Fault (0-79) | Read and write | ||||
| Working Days (0-81) | Read and write | ||||
| Additional Working Days (0-82) | Read and write | ||||
| Additional Non-working Days (0-83) | Read and write | ||||
| Time for Fieldbus (0-84) | Read and write | ||||
| Summer Time Start for Fieldbus (0-85) | Read and write | ||||
| Summer Time End for Fieldbus (0-86) | Read and write | ||||
| Clock Restore at Powerup (0-88) | Read and write | ||||
| Date and Time Readout (0-89) | Read | ||||
| Integrity Check at Power-up (0-91) | Read and write | ||||
| Checksum (SHA256) (0-92) | Read | ||||
| Session Timeout (in Seconds) (0-93) | s | Read and write | |||
| Max Login Attempts (0-94) | Read and write | ||||
| Warning LED Blinking (0-95) | Read and write | ||||
| Configuration Mode (1-00) | Read and write | ||||
| Flux Motor Feedback Source (1-02) | Read and write | ||||
| Torque Characteristics (1-03) | Read and write | ||||
| Overload Mode (1-04) | Read and write | ||||
| Local Mode Configuration (1-05) | Read and write | ||||
| Clockwise Direction (1-06) | Read and write | ||||
| Motor Angle Offset Adjust (1-07) | Read and write | ||||
| Mode of Operation (1-09) | Read and write | ||||
| Motor Construction (1-10) | Read and write | ||||
| Motor Model (1-11) | Read and write | ||||
| Damping Gain (1-14) | % | Read and write | |||
| Low Speed Filter Time Const. (1-15) | s | Read and write | |||
| High Speed Filter Time Const. (1-16) | s | Read and write | |||
| Voltage Filter Time Const. (1-17) | s | Read and write | |||
| Min. Current at No Load (1-18) | % | Read and write | |||
| Motor Power [kW] (1-20) | W | Read and write | |||
| Motor Power [HP] (1-21) | Read and write | ||||
| Motor Voltage (1-22) | V | Read and write | |||
| Motor Frequency (1-23) | Hz | Read and write | |||
| Motor Current (1-24) | A | Read and write | |||
| Motor Nominal Speed (1-25) | rpm | Read and write | |||
| Motor Cont. Rated Torque (1-26) | Nm | Read and write | |||
| Automatic Motor Adaptation (AMA) (1-29) | Read and write | ||||
| Stator Resistance (Rs) (1-30) | Ω | Read and write | |||
| Rotor Resistance (Rr) (1-31) | Ω | Read and write | |||
| Stator Leakage Reactance (X1) (1-33) | Ω | Read and write | |||
| Rotor Leakage Reactance (X2) (1-34) | Ω | Read and write | |||
| Main Reactance (Xh) (1-35) | Read and write | ||||
| Iron Loss Resistance (Rfe) (1-36) | Ω | Read and write | |||
| d-axis Inductance (Ld) (1-37) | Read and write | ||||
| q-axis Inductance (Lq) (1-38) | Read and write | ||||
| Motor Poles (1-39) | Read and write | ||||
| Back EMF at 1000 RPM (1-40) | V | Read and write | |||
| Motor Angle Offset (1-41) | Read and write | ||||
| d-axis Inductance Sat. (LdSat) (1-44) | Read and write | ||||
| q-axis Inductance Sat. (LqSat) (1-45) | Read and write | ||||
| Position Detection Gain (1-46) | % | Read and write | |||
| Torque Calibration (1-47) | Read and write | ||||
| d-axis Inductance Sat. Point (1-48) | % | Read and write | |||
| q-axis Inductance Sat. Point (1-49) | % | Read and write | |||
| Motor Magnetization at Zero Speed (1-50) | % | Read and write | |||
| Min Speed Normal Magnetizing [RPM] (1-51) | rpm | Read and write | |||
| Min Speed Normal Magnetizing [Hz] (1-52) | Hz | Read and write | |||
| Model Shift Frequency (1-53) | Hz | Read and write | |||
| Voltage Reduction in Fieldweakening (1-54) | V | Read and write | |||
| U/f Characteristic - U (1-55) | Read and write | ||||
| U/f Characteristic - F (1-56) | Read and write | ||||
| Torque Estimation Time Constant (1-57) | ms | Read and write | |||
| Flying Start Test Pulses Current (1-58) | % | Read and write | |||
| Flying Start Test Pulses Frequency (1-59) | % | Read and write | |||
| Low Speed Load Compensation (1-60) | % | Read and write | |||
| High Speed Load Compensation (1-61) | % | Read and write | |||
| Slip Compensation (1-62) | % | Read and write | |||
| Slip Compensation Time Constant (1-63) | s | Read and write | |||
| Resonance Damping (1-64) | % | Read and write | |||
| Resonance Damping Time Constant (1-65) | ms | Read and write | |||
| Min. Current at Low Speed (1-66) | % | Read and write | |||
| Motor Inertia (1-68) | Read and write | ||||
| System Inertia (1-69) | Read and write | ||||
| Start Mode (1-70) | Read and write | ||||
| Start Delay (1-71) | s | Read and write | |||
| Start Function (1-72) | Read and write | ||||
| Flying Start (1-73) | Read and write | ||||
| Start Speed [RPM] (1-74) | rpm | Read and write | |||
| Start Speed [HZ] (1-75) | Hz | Read and write | |||
| Start Current (1-76) | A | Read and write | |||
| Function at Stop (1-80) | Read and write | ||||
| Min Speed for Function at Stop [RPM] (1-81) | rpm | Read and write | |||
| Min Speed for Function at Stop [Hz] (1-82) | Hz | Read and write | |||
| Precise Stop Function (1-83) | Read and write | ||||
| Precise Stop Counter Value (1-84) | Read and write | ||||
| Precise Stop Speed Compensation Delay (1-85) | ms | Read and write | |||
| Stop Func Torque Ramp Time (1-89) | s | Read and write | |||
| Motor Thermal Protection (1-90) | Read and write | ||||
| Motor External Fan (1-91) | Read and write | ||||
| Thermistor Resource (1-93) | Read and write | ||||
| ATEX ETR Cur. Lim. Speed Reduction (1-94) | % | Read and write | |||
| Thermistor Sensor Type (1-95) | Read and write | ||||
| Thermistor Sensor Resource (1-96) | Read and write | ||||
| Thermistor Threshold Level (1-97) | °C | Read and write | |||
| ATEX ETR Interpol. Points Freq. (1-98) | Read and write | ||||
| ATEX ETR Interpol. Points Current (1-99) | Read and write | ||||
| DC Hold Current (2-00) | % | Read and write | |||
| DC Brake Current (2-01) | % | Read and write | |||
| DC Braking Time (2-02) | s | Read and write | |||
| DC Brake Cut In Speed [RPM] (2-03) | rpm | Read and write | |||
| DC Brake Cut In Speed [Hz] (2-04) | Hz | Read and write | |||
| Maximum Reference (2-05) | Read and write | ||||
| Parking Current (2-06) | % | Read and write | |||
| Parking Time (2-07) | s | Read and write | |||
| Brake Function (2-10) | Read and write | ||||
| Brake Resistor (ohm) (2-11) | Ω | Read and write | |||
| Brake Power Limit (kW) (2-12) | W | Read and write | |||
| Brake Power Monitoring (2-13) | Read and write | ||||
| Brake Voltage Reduce (2-14) | V | Read and write | |||
| Brake Check (2-15) | Read and write | ||||
| AC Brake Max. Current (2-16) | % | Read and write | |||
| Over-voltage Control (2-17) | Read and write | ||||
| Brake Check Condition (2-18) | Read and write | ||||
| Over-voltage Gain (2-19) | % | Read and write | |||
| Release Brake Current (2-20) | A | Read and write | |||
| Activate Brake Speed [RPM] (2-21) | rpm | Read and write | |||
| Activate Brake Speed [Hz] (2-22) | Hz | Read and write | |||
| Activate Brake Delay (2-23) | s | Read and write | |||
| Stop Delay (2-24) | s | Read and write | |||
| Brake Release Time (2-25) | s | Read and write | |||
| Torque Ref (2-26) | % | Read and write | |||
| Torque Ramp Up Time (2-27) | s | Read and write | |||
| Gain Boost Factor (2-28) | Read and write | ||||
| Torque Ramp Down Time (2-29) | s | Read and write | |||
| Position P Start Proportional Gain (2-30) | Read and write | ||||
| Speed PID Start Proportional Gain (2-31) | Read and write | ||||
| Speed PID Start Integral Time (2-32) | ms | Read and write | |||
| Speed PID Start Lowpass Filter Time (2-33) | ms | Read and write | |||
| Zero Speed Position P Proportional Gain (2-34) | Read and write | ||||
| Reference Range (3-00) | Read and write | ||||
| Reference/Feedback Unit (3-01) | Read and write | ||||
| Minimum Reference (3-02) | Read and write | ||||
| Maximum Reference (3-03) | Read and write | ||||
| Reference Function (3-04) | Read and write | ||||
| On Reference Window (3-05) | Read and write | ||||
| Minimum Position (3-06) | Read and write | ||||
| Maximum Position (3-07) | Read and write | ||||
| On Target Window (3-08) | Read and write | ||||
| On Target Time (3-09) | ms | Read and write | |||
| Preset Reference (3-10) | % | Read and write | |||
| Jog Speed [Hz] (3-11) | Hz | Read and write | |||
| Catch Up/Slow Down Value (3-12) | % | Read and write | |||
| Reference Site (3-13) | Read and write | ||||
| Preset Relative Reference (3-14) | % | Read and write | |||
| Reference Resource 1 (3-15) | Read and write | ||||
| Reference Resource 2 (3-16) | Read and write | ||||
| Reference Resource 3 (3-17) | Read and write | ||||
| Relative Scaling Reference Resource (3-18) | Read and write | ||||
| Jog Speed [RPM] (3-19) | rpm | Read and write | |||
| Preset Target (3-20) | Read and write | ||||
| Touch Target (3-21) | Read and write | ||||
| Master Scale Numerator (3-22) | Read and write | ||||
| Master Scale Denominator (3-23) | Read and write | ||||
| Master Lowpass Filter Time (3-24) | ms | Read and write | |||
| Fieldbus Sync. Resolution (3-25) | Read and write | ||||
| Master Offset (3-26) | Read and write | ||||
| Virtual Master Max Ref (3-27) | Read and write | ||||
| Master Offset Speed Ref (3-28) | rpm | Read and write | |||
| Interpolation Time Period (3-29) | Read and write | ||||
| Min. Speed Ramp Time (3-30) | s | Read and write | |||
| Ramp Speed Ref (3-32) | rpm | Read and write | |||
| Sync Mode & Start Behavior (3-33) | Read and write | ||||
| Marker Distance (3-34) | Read and write | ||||
| Marker Window (3-35) | Read and write | ||||
| CAM Master Table (3-36) | Read and write | ||||
| CAM Follower Table (3-37) | Read and write | ||||
| CAM Curve Table (3-38) | Read and write | ||||
| CAM Follower Gain (3-39) | % | Read and write | |||
| Ramp 1 Type (3-40) | Read and write | ||||
| Ramp 1 Ramp Up Time (3-41) | s | Read and write | |||
| Ramp 1 Ramp Down Time (3-42) | s | Read and write | |||
| Ramp 1 S-ramp Ratio at Accel. Start (3-45) | % | Read and write | |||
| Ramp 1 S-ramp Ratio at Accel. End (3-46) | % | Read and write | |||
| Ramp 1 S-ramp Ratio at Decel. Start (3-47) | % | Read and write | |||
| Ramp 1 S-ramp Ratio at Decel. End (3-48) | % | Read and write | |||
| Ramp 2 Type (3-50) | Read and write | ||||
| Ramp 2 Ramp Up Time (3-51) | s | Read and write | |||
| Ramp 2 Ramp Down Time (3-52) | s | Read and write | |||
| Ramp 2 S-ramp Ratio at Accel. Start (3-55) | % | Read and write | |||
| Ramp 2 S-ramp Ratio at Accel. End (3-56) | % | Read and write | |||
| Ramp 2 S-ramp Ratio at Decel. Start (3-57) | % | Read and write | |||
| Ramp 2 S-ramp Ratio at Decel. End (3-58) | % | Read and write | |||
| Ramp 3 Type (3-60) | Read and write | ||||
| Ramp 3 Ramp Up Time (3-61) | s | Read and write | |||
| Ramp 3 Ramp Down Time (3-62) | s | Read and write | |||
| Ramp 3 S-ramp Ratio at Accel. Start (3-65) | % | Read and write | |||
| Ramp 3 S-ramp Ratio at Accel. End (3-66) | % | Read and write | |||
| Ramp 3 S-ramp Ratio at Decel. Start (3-67) | % | Read and write | |||
| Ramp 3 S-ramp Ratio at Decel. End (3-68) | % | Read and write | |||
| Ramp 4 Type (3-70) | Read and write | ||||
| Ramp 4 Ramp Up Time (3-71) | s | Read and write | |||
| Ramp 4 Ramp Down Time (3-72) | s | Read and write | |||
| Ramp 4 S-ramp Ratio at Accel. Start (3-75) | % | Read and write | |||
| Ramp 4 S-ramp Ratio at Accel. End (3-76) | % | Read and write | |||
| Ramp 4 S-ramp Ratio at Decel. Start (3-77) | % | Read and write | |||
| Ramp 4 S-ramp Ratio at Decel. End (3-78) | % | Read and write | |||
| Jog/Homing Ramp Time (3-80) | s | Read and write | |||
| Quick Stop Ramp Time (3-81) | s | Read and write | |||
| Quick Stop Ramp Type (3-82) | Read and write | ||||
| Quick Stop S-ramp Ratio at Decel. Start (3-83) | % | Read and write | |||
| Quick Stop S-ramp at Decel. End (3-84) | % | Read and write | |||
| Ramp Lowpass Filter Time (3-89) | ms | Read and write | |||
| Step Size (3-90) | % | Read and write | |||
| Ramp Time (3-91) | s | Read and write | |||
| Power Restore (3-92) | Read and write | ||||
| Maximum Limit (3-93) | % | Read and write | |||
| Minimum Limit (3-94) | % | Read and write | |||
| Ramp Delay (3-95) | Read and write | ||||
| Motor Speed Direction (4-10) | Read and write | ||||
| Motor Speed Low Limit [RPM] (4-11) | rpm | Read and write | |||
| Motor Speed Low Limit [Hz] (4-12) | Hz | Read and write | |||
| Motor Speed High Limit [RPM] (4-13) | rpm | Read and write | |||
| Motor Speed High Limit [Hz] (4-14) | Hz | Read and write | |||
| Torque Limit Motor Mode (4-16) | % | Read and write | |||
| Torque Limit Generator Mode (4-17) | % | Read and write | |||
| Current Limit (4-18) | % | Read and write | |||
| Max Output Frequency (4-19) | Hz | Read and write | |||
| Torque Limit Factor Source (4-20) | Read and write | ||||
| Speed Limit Factor Source (4-21) | Read and write | ||||
| Brake Check Limit Factor Source (4-23) | Read and write | ||||
| Brake Check Limit Factor (4-24) | % | Read and write | |||
| Power Limit Motor Factor Source (4-25) | Read and write | ||||
| Power Limit Gener. Factor Source (4-26) | Read and write | ||||
| Speed Low Limit Factor Source (4-29) | Read and write | ||||
| Motor Feedback Loss Function (4-30) | Read and write | ||||
| Motor Feedback Speed Error (4-31) | rpm | Read and write | |||
| Motor Feedback Loss Timeout (4-32) | s | Read and write | |||
| Tracking Error Function (4-34) | Read and write | ||||
| Tracking Error (4-35) | rpm | Read and write | |||
| Tracking Error Timeout (4-36) | s | Read and write | |||
| Tracking Error Ramping (4-37) | rpm | Read and write | |||
| Tracking Error Ramping Timeout (4-38) | s | Read and write | |||
| Tracking Error After Ramping Timeout (4-39) | s | Read and write | |||
| Motor Speed Monitor Function (4-43) | Read and write | ||||
| Motor Speed Monitor Max (4-44) | rpm | Read and write | |||
| Motor Speed Monitor Timeout (4-45) | s | Read and write | |||
| Motor Protection Current Limit (4-46) | A | Read and write | |||
| Motor Protection Reaction Time (4-47) | Read and write | ||||
| Motor Check Time Interval (4-49) | Read and write | ||||
| Warning Current Low (4-50) | A | Read and write | |||
| Warning Current High (4-51) | Read and write | ||||
| Warning Speed Low (4-52) | rpm | Read and write | |||
| Warning Speed High (4-53) | Read and write | ||||
| Warning Reference Low (4-54) | Read and write | ||||
| Warning Reference High (4-55) | Read and write | ||||
| Warning Feedback Low (4-56) | Read and write | ||||
| Warning Feedback High (4-57) | Read and write | ||||
| Missing Motor Phase Function (4-58) | Read and write | ||||
| Motor Check at Start (4-59) | Read and write | ||||
| Bypass Speed From [RPM] (4-60) | rpm | Read and write | |||
| Bypass Speed From [Hz] (4-61) | Hz | Read and write | |||
| Bypass Speed To [RPM] (4-62) | rpm | Read and write | |||
| Bypass Speed To [Hz] (4-63) | Hz | Read and write | |||
| Position Error Function (4-70) | Read and write | ||||
| Maximum Position Error (4-71) | Read and write | ||||
| Position Error Timeout (4-72) | s | Read and write | |||
| Position Limit Function (4-73) | Read and write | ||||
| Start Fwd/Rev Function (4-74) | Read and write | ||||
| Touch Timeout (4-75) | s | Read and write | |||
| Power Limit Func. Motor Mode (4-80) | Read and write | ||||
| Power Limit Func. Generator Mode (4-81) | Read and write | ||||
| Power Limit Motor Mode (4-82) | % | Read and write | |||
| Power Limit Generator Mode (4-83) | % | Read and write | |||
| Directional Limit Mode (4-90) | Read and write | ||||
| Positive Speed Limit [RPM] (4-91) | rpm | Read and write | |||
| Positive Speed Limit [Hz] (4-92) | Hz | Read and write | |||
| Negative Speed Limit [RPM] (4-93) | rpm | Read and write | |||
| Negative Speed Limit [Hz] (4-94) | Hz | Read and write | |||
| Positive Torque Limit (4-95) | % | Read and write | |||
| Negative Torque Limit (4-96) | % | Read and write | |||
| Digital I/O Mode (5-00) | Read and write | ||||
| Terminal 27 Mode (5-01) | Read and write | ||||
| Terminal 29 Mode (5-02) | Read and write | ||||
| Terminal 18 Digital Input (5-10) | Read and write | ||||
| Terminal 19 Digital Input (5-11) | Read and write | ||||
| Terminal 27 Digital Input (5-12) | Read and write | ||||
| Terminal 29 Digital Input (5-13) | Read and write | ||||
| Terminal 32 Digital Input (5-14) | Read and write | ||||
| Terminal 33 Digital Input (5-15) | Read and write | ||||
| Terminal X30/2 Digital Input (5-16) | Read and write | ||||
| Terminal X30/3 Digital Input (5-17) | Read and write | ||||
| Terminal X30/4 Digital Input (5-18) | Read and write | ||||
| Terminal 37 Safe Stop (5-19) | Read and write | ||||
| Terminal X46/1 Digital Input (5-20) | Read and write | ||||
| Terminal X46/3 Digital Input (5-21) | Read and write | ||||
| Terminal X46/5 Digital Input (5-22) | Read and write | ||||
| Terminal X46/7 Digital Input (5-23) | Read and write | ||||
| Terminal X46/9 (5-24) | Read and write | ||||
| Terminal X46/11 Digital Input (5-25) | Read and write | ||||
| Terminal X46/13 Digital Input (5-26) | Read and write | ||||
| Sensor Input Bounce Filter (5-29) | ms | Read and write | |||
| Terminal 27 Digital Output (5-30) | Read and write | ||||
| Terminal 29 Digital Output (5-31) | Read and write | ||||
| Term X30/6 Digi Out (MCB 101) (5-32) | Read and write | ||||
| Term X30/7 Digi Out (MCB 101) (5-33) | Read and write | ||||
| Function Relay (5-40) | Read and write | ||||
| On Delay, Relay (5-41) | s | Read and write | |||
| Off Delay, Relay (5-42) | s | Read and write | |||
| Term. 29 Low Frequency (5-50) | Hz | Read and write | |||
| Term. 29 High Frequency (5-51) | Hz | Read and write | |||
| Term. 29 Low Ref./Feedb. Value (5-52) | Read and write | ||||
| Term. 29 High Ref./Feedb. Value (5-53) | Read and write | ||||
| Pulse Filter Time Constant #29 (5-54) | ms | Read and write | |||
| Term. 33 Low Frequency (5-55) | Hz | Read and write | |||
| Term. 33 High Frequency (5-56) | Hz | Read and write | |||
| Term. 33 Low Ref./Feedb. Value (5-57) | Read and write | ||||
| Term. 33 High Ref./Feedb. Value (5-58) | Read and write | ||||
| Pulse Filter Time Constant #33 (5-59) | ms | Read and write | |||
| Terminal 27 Pulse Output Variable (5-60) | Read and write | ||||
| Pulse Output Max Freq #27 (5-62) | Read and write | ||||
| Terminal 29 Pulse Output Variable (5-63) | Read and write | ||||
| Pulse Output Max Freq #29 (5-65) | Read and write | ||||
| Terminal X30/6 Pulse Output Variable (5-66) | Read and write | ||||
| Pulse Output Max Freq #30/6 (5-68) | Read and write | ||||
| Term 32/33 Pulses Per Revolution (5-70) | Read and write | ||||
| Term 32/33 Encoder Direction (5-71) | Read and write | ||||
| Term 32/33 Encoder Type (5-72) | Read and write | ||||
| Term 27/29 Pulses Per Revolution (5-75) | Read and write | ||||
| Term 27/29 Encoder Direction (5-76) | Read and write | ||||
| Term 27/29 Encoder Type (5-77) | Read and write | ||||
| Term 27/29 Encoder Sim (5-78) | Read and write | ||||
| AHF Cap Reconnect Delay (5-80) | s | Read and write | |||
| Digital & Relay Bus Control (5-90) | Read and write | ||||
| Pulse Out #27 Bus Control (5-93) | % | Read and write | |||
| Pulse Out #27 Timeout Preset (5-94) | % | Read and write | |||
| Pulse Out #29 Bus Control (5-95) | % | Read and write | |||
| Pulse Out #29 Timeout Preset (5-96) | % | Read and write | |||
| Pulse Out #30/6 Bus Control (5-97) | % | Read and write | |||
| Pulse Out #30/6 Timeout Preset (5-98) | % | Read and write | |||
| Live Zero Timeout Time (6-00) | s | Read and write | |||
| Live Zero Timeout Function (6-01) | Read and write | ||||
| Emergency Mode Live Zero Timeout Function (6-02) | Read and write | ||||
| Terminal 53 Low Voltage (6-10) | V | Read and write | |||
| Terminal 53 High Voltage (6-11) | V | Read and write | |||
| Terminal 53 Low Current (6-12) | mA | Read and write | |||
| Terminal 53 High Current (6-13) | mA | Read and write | |||
| Terminal 53 Low Ref./Feedb. Value (6-14) | Read and write | ||||
| Terminal 53 High Ref./Feedb. Value (6-15) | Read and write | ||||
| Terminal 53 Filter Time Constant (6-16) | s | Read and write | |||
| Terminal 54 Low Voltage (6-20) | V | Read and write | |||
| Terminal 54 High Voltage (6-21) | V | Read and write | |||
| Terminal 54 Low Current (6-22) | mA | Read and write | |||
| Terminal 54 High Current (6-23) | mA | Read and write | |||
| Terminal 54 Low Ref./Feedb. Value (6-24) | Read and write | ||||
| Terminal 54 High Ref./Feedb. Value (6-25) | Read and write | ||||
| Terminal 54 Filter Time Constant (6-26) | s | Read and write | |||
| Terminal X30/11 Low Voltage (6-30) | V | Read and write | |||
| Terminal X30/11 High Voltage (6-31) | V | Read and write | |||
| Term. X30/11 Low Ref./Feedb. Value (6-34) | Read and write | ||||
| Term. X30/11 High Ref./Feedb. Value (6-35) | Read and write | ||||
| Term. X30/11 Filter Time Constant (6-36) | s | Read and write | |||
| Terminal X30/12 Low Voltage (6-40) | V | Read and write | |||
| Terminal X30/12 High Voltage (6-41) | V | Read and write | |||
| Term. X30/12 Low Ref./Feedb. Value (6-44) | Read and write | ||||
| Term. X30/12 High Ref./Feedb. Value (6-45) | Read and write | ||||
| Term. X30/12 Filter Time Constant (6-46) | s | Read and write | |||
| Terminal 42 Output (6-50) | Read and write | ||||
| Terminal 42 Output Min Scale (6-51) | % | Read and write | |||
| Terminal 42 Output Max Scale (6-52) | % | Read and write | |||
| Term 42 Output Bus Ctrl (6-53) | % | Read and write | |||
| Term 42 Output Timeout Preset (6-54) | % | Read and write | |||
| Analog Output Filter (6-55) | Read and write | ||||
| Terminal X30/8 Output (6-60) | Read and write | ||||
| Terminal X30/8 Min. Scale (6-61) | % | Read and write | |||
| Terminal X30/8 Max. Scale (6-62) | % | Read and write | |||
| Terminal X30/8 Bus Control (6-63) | % | Read and write | |||
| Terminal X30/8 Output Timeout Preset (6-64) | % | Read and write | |||
| Terminal X45/1 Output (6-70) | Read and write | ||||
| Terminal X45/1 Min. Scale (6-71) | % | Read and write | |||
| Terminal X45/1 Max. Scale (6-72) | % | Read and write | |||
| Terminal X45/1 Bus Control (6-73) | % | Read and write | |||
| Terminal X45/1 Output Timeout Preset (6-74) | % | Read and write | |||
| Terminal X45/3 Output (6-80) | Read and write | ||||
| Terminal X45/3 Min. Scale (6-81) | % | Read and write | |||
| Terminal X45/3 Max. Scale (6-82) | % | Read and write | |||
| Terminal X45/3 Bus Control (6-83) | % | Read and write | |||
| Terminal X45/3 Output Timeout Preset (6-84) | % | Read and write | |||
| Speed PID Feedback Source (7-00) | Read and write | ||||
| Speed PID Droop (7-01) | rpm | Read and write | |||
| Speed PID Proportional Gain (7-02) | Read and write | ||||
| Speed PID Integral Time (7-03) | ms | Read and write | |||
| Speed PID Differentiation Time (7-04) | ms | Read and write | |||
| Speed PID Diff. Gain Limit (7-05) | Read and write | ||||
| Speed PID Lowpass Filter Time (7-06) | ms | Read and write | |||
| Speed PID Feedback Gear Ratio (7-07) | Read and write | ||||
| Speed PID Feed Forward Factor (7-08) | % | Read and write | |||
| Speed PID Error Correction w/Ramp (7-09) | rpm | Read and write | |||
| Torque PID Feedback Source (7-10) | Read and write | ||||
| Torque PI Proportional Gain (7-12) | % | Read and write | |||
| Torque PI Integration Time (7-13) | s | Read and write | |||
| Torque PI Lowpass Filter Time (7-16) | ms | Read and write | |||
| Torque PI Feed Forward Factor (7-18) | % | Read and write | |||
| Current Controller Rise Time (7-19) | % | Read and write | |||
| Process CL Feedback 1 Resource (7-20) | Read and write | ||||
| Process CL Feedback 2 Resource (7-22) | Read and write | ||||
| Process PID Normal/ Inverse Control (7-30) | Read and write | ||||
| Process PID Anti Windup (7-31) | Read and write | ||||
| Process PID Start Speed (7-32) | rpm | Read and write | |||
| Process PID Proportional Gain (7-33) | Read and write | ||||
| Process PID Integral Time (7-34) | s | Read and write | |||
| Process PID Differentiation Time (7-35) | s | Read and write | |||
| Process PID Diff. Gain Limit (7-36) | Read and write | ||||
| Process PID Feed Forward Factor (7-38) | % | Read and write | |||
| On Reference Bandwidth (7-39) | % | Read and write | |||
| Process PID I-part Reset (7-40) | Read and write | ||||
| Process PID Output Neg. Clamp (7-41) | % | Read and write | |||
| Process PID Output Pos. Clamp (7-42) | % | Read and write | |||
| Process PID Gain Scale at Min. Ref. (7-43) | % | Read and write | |||
| Process PID Gain Scale at Max. Ref. (7-44) | % | Read and write | |||
| Process PID Feed Fwd Resource (7-45) | Read and write | ||||
| Process PID Feed Fwd Normal/Inv. Ctrl. (7-46) | Read and write | ||||
| PCD Feed Forward (7-48) | Read and write | ||||
| Process PID Output Normal/Inv. Ctrl. (7-49) | Read and write | ||||
| Process PID Extended PID (7-50) | Read and write | ||||
| Process PID Feed Fwd Gain (7-51) | Read and write | ||||
| Process PID Feed Fwd Ramp Up (7-52) | s | Read and write | |||
| Process PID Feed Fwd Ramp Down (7-53) | s | Read and write | |||
| Process PID Ref. Filter Time (7-56) | s | Read and write | |||
| Process PID Fb. Filter Time (7-57) | s | Read and write | |||
| Speed Dependent Proportional Gain (7-74) | Read and write | ||||
| Speed Dep. P-Gain Associated Speed (7-75) | % | Read and write | |||
| Speed PID Feed Forward Filter Time (7-76) | ms | Read and write | |||
| Speed PID Damping Gain (7-77) | ms | Read and write | |||
| Speed PID Damping Gain Const Low (7-78) | ms | Read and write | |||
| Speed PID Damping Time Const High (7-79) | ms | Read and write | |||
| Position PI Feedback Source (7-90) | Read and write | ||||
| Position PI Droop (7-91) | Read and write | ||||
| Position PI Proportional Gain (7-92) | Read and write | ||||
| Position PI Integral Time (7-93) | ms | Read and write | |||
| Position PI Feedback Scale Numerator (7-94) | Read and write | ||||
| Position PI Feedback Scale Denominator (7-95) | Read and write | ||||
| Position PI Max Speed Above Master (7-97) | rpm | Read and write | |||
| Position PI Feed Forward Factor (7-98) | % | Read and write | |||
| Position PI Minimum Ramp Time (7-99) | s | Read and write | |||
| Control Site (8-01) | Read and write | ||||
| Control Word Source (8-02) | Read and write | ||||
| Control Word Timeout Time (8-03) | s | Read and write | |||
| Control Word Timeout Function (8-04) | Read and write | ||||
| End-of-Timeout Function (8-05) | Read and write | ||||
| Reset Control Word Timeout (8-06) | Read and write | ||||
| Diagnosis Trigger (8-07) | Read and write | ||||
| Readout Filtering (8-08) | Read and write | ||||
| Control Word Profile (8-10) | Read and write | ||||
| Configurable Status Word STW (8-13) | Read and write | ||||
| Configurable Control Word CTW (8-14) | Read and write | ||||
| Configurable Alarm and Warningword (8-17) | Read and write | ||||
| Add Fieldbus ref. to Reference (8-18) | Read and write | ||||
| Product Code (8-19) | Read and write | ||||
| Invalid Memory Write Counter (8-20) | Read and write | ||||
| Protocol (8-30) | Read and write | ||||
| Address (8-31) | Read and write | ||||
| FC Port Baud Rate (8-32) | Read and write | ||||
| Parity/Stop Bits (8-33) | Read and write | ||||
| Estimated Cycle Time (8-34) | ms | Read and write | |||
| Minimum Response Delay (8-35) | ms | Read and write | |||
| Max Response Delay (8-36) | ms | Read and write | |||
| Max Inter-Char Delay (8-37) | ms | Read and write | |||
| Protocol/Profile Firmware Version (8-39) | Read | ||||
| Telegram Selection (8-40) | Read and write | ||||
| Parameters for Signals (8-41) | Read | ||||
| PCD Write Configuration (8-42) | Read and write | ||||
| PCD Read Configuration (8-43) | Read and write | ||||
| BTM Transaction Command (8-45) | Read and write | ||||
| BTM Transaction Status (8-46) | Read | ||||
| BTM Timeout (8-47) | s | Read and write | |||
| BTM Maximum Errors (8-48) | Read and write | ||||
| Coasting Select (8-50) | Read and write | ||||
| Quick Stop Select (8-51) | Read and write | ||||
| DC Brake Select (8-52) | Read and write | ||||
| Start Select (8-53) | Read and write | ||||
| Reversing Select (8-54) | Read and write | ||||
| Set-up Select (8-55) | Read and write | ||||
| Preset Reference Select (8-56) | Read and write | ||||
| PROFIdrive OFF2 Select (8-57) | Read and write | ||||
| PROFIdrive OFF3 Select (8-58) | Read and write | ||||
| Bus Message Count (8-80) | Read | ||||
| Bus Error Count (8-81) | Read | ||||
| Slave Messages Rcvd (8-82) | Read | ||||
| Slave Error Count (8-83) | Read | ||||
| Bus Jog 1 Speed (8-90) | rpm | Read and write | |||
| Bus Jog 2 Speed (8-91) | rpm | Read and write | |||
| Setpoint (9-00) | Read | ||||
| Actual Value (9-07) | Read | ||||
| PCD Write Configuration (9-15) | Read and write | ||||
| PCD Read Configuration (9-16) | Read and write | ||||
| Node Address (9-18) | Read and write | ||||
| Drive Unit System Number (9-19) | Read and write | ||||
| Telegram Selection (9-22) | Read and write | ||||
| Parameters for Signals (9-23) | Read | ||||
| Parameter Edit (9-27) | Read and write | ||||
| Process Control (9-28) | Read and write | ||||
| Fault Message Counter (9-44) | Read | ||||
| Fault Code (9-45) | Read | ||||
| Fault Number (9-47) | Read | ||||
| Fault Situation Counter (9-52) | Read and write | ||||
| PROFIBUS Warning Word (9-53) | Read | ||||
| Actual Baud Rate (9-63) | Read | ||||
| Device Identification (9-64) | Read | ||||
| Profile Number (9-65) | Read | ||||
| Control Word 1 (9-67) | Read | ||||
| Status Word 1 (9-68) | Read | ||||
| Edit Set-up (9-70) | Read and write | ||||
| PROFIBUS Save Data Value (9-71) | Read and write | ||||
| PROFIBUSDriveReset (9-72) | Read and write | ||||
| DO Identification (9-75) | Read | ||||
| Defined Parameters (1) (9-80) | Read | ||||
| Defined Parameters (2) (9-81) | Read | ||||
| Defined Parameters (3) (9-82) | Read | ||||
| Defined Parameters (4) (9-83) | Read | ||||
| Defined Parameters (5) (9-84) | Read | ||||
| Defined Parameters (6) (9-85) | Read | ||||
| Changed Parameters (1) (9-90) | Read | ||||
| Changed Parameters (2) (9-91) | Read | ||||
| Changed Parameters (3) (9-92) | Read | ||||
| Changed Parameters (4) (9-93) | Read | ||||
| Changed Parameters (5) (9-94) | Read | ||||
| PROFIBUS Revision Counter (9-99) | Read | ||||
| CAN Protocol (10-00) | Read and write | ||||
| Baud Rate Select (10-01) | Read and write | ||||
| MAC ID (10-02) | Read and write | ||||
| Readout Transmit Error Counter (10-05) | Read | ||||
| Readout Receive Error Counter (10-06) | Read | ||||
| Readout Bus Off Counter (10-07) | Read | ||||
| Process Data Type Selection (10-10) | Read and write | ||||
| Process Data Config Write (10-11) | Read and write | ||||
| Process Data Config Read (10-12) | Read and write | ||||
| Warning Parameter (10-13) | Read | ||||
| Net Reference (10-14) | Read and write | ||||
| Net Control (10-15) | Read and write | ||||
| COS Filter 1 (10-20) | Read and write | ||||
| COS Filter 2 (10-21) | Read and write | ||||
| COS Filter 3 (10-22) | Read and write | ||||
| COS Filter 4 (10-23) | Read and write | ||||
| Array Index (10-30) | Read and write | ||||
| Store Data Value (10-31) | Read and write | ||||
| Devicenet Revision (10-32) | Read | ||||
| Store Always (10-33) | Read and write | ||||
| DeviceNet Product Code (10-34) | Read and write | ||||
| Devicenet F Parameters (10-39) | Read | ||||
| Process Data Config Write (10-50) | Read and write | ||||
| Process Data Config Read (10-51) | Read and write | ||||
| IP Address Assignment (12-00) | Read and write | ||||
| IP Address (12-01) | Read and write | ||||
| Subnet Mask (12-02) | Read and write | ||||
| Default Gateway (12-03) | Read and write | ||||
| DHCP Server (12-04) | Read and write | ||||
| Lease Expires (12-05) | Read | ||||
| Name Servers (12-06) | Read and write | ||||
| Domain Name (12-07) | Read and write | ||||
| Host Name (12-08) | Read and write | ||||
| Physical Address (12-09) | Read and write | ||||
| Link Status (12-10) | Read | ||||
| Link Duration (12-11) | Read | ||||
| Auto Negotiation (12-12) | Read and write | ||||
| Link Speed (12-13) | Read and write | ||||
| Link Duplex (12-14) | Read and write | ||||
| Supervisor MAC (12-18) | Read and write | ||||
| Supervisor IP Addr. (12-19) | Read and write | ||||
| Control Instance (12-20) | Read and write | ||||
| Process Data Config Write (12-21) | Read and write | ||||
| Process Data Config Read (12-22) | Read and write | ||||
| Process Data Config Write Size (12-23) | Read and write | ||||
| Process Data Config Read Size (12-24) | Read and write | ||||
| Master Address (12-27) | Read and write | ||||
| Store Data Values (12-28) | Read and write | ||||
| Store Always (12-29) | Read and write | ||||
| Warning Parameter (12-30) | Read | ||||
| Net Reference (12-31) | Read and write | ||||
| Net Control (12-32) | Read and write | ||||
| CIP Revision (12-33) | Read | ||||
| CIP Product Code (12-34) | Read and write | ||||
| EDS Parameter (12-35) | Read | ||||
| COS Inhibit Timer (12-37) | Read and write | ||||
| COS Filter (12-38) | Read and write | ||||
| Status Parameter (12-40) | Read | ||||
| Slave Message Count (12-41) | Read | ||||
| Slave Exception Message Count (12-42) | Read | ||||
| Ethernet Extended Status (12-49) | Read and write | ||||
| Configured Station Alias (12-50) | Read and write | ||||
| Configured Station Address (12-51) | Read | ||||
| EtherCAT Status (12-59) | Read | ||||
| Node ID (12-60) | Read and write | ||||
| SDO Timeout (12-62) | ms | Read and write | |||
| Basic Ethernet Timeout (12-63) | ms | Read and write | |||
| Threshold (12-66) | Read and write | ||||
| Threshold Counters (12-67) | Read and write | ||||
| Cumulative Counters (12-68) | Read and write | ||||
| Ethernet POWERLINK Status (12-69) | Read | ||||
| FTP Server (12-80) | Read and write | ||||
| HTTP Server (12-81) | Read and write | ||||
| SMTP Service (12-82) | Read and write | ||||
| SNMP Agent (12-83) | Read and write | ||||
| Address Conflict Detection (12-84) | Read and write | ||||
| ACD Last Conflict (12-85) | Read and write | ||||
| NTP Host Server (12-86) | Read and write | ||||
| SNTP Time Sync (12-87) | min | Read and write | |||
| Transparent Socket Channel Port (12-89) | Read and write | ||||
| Cable Diagnostics (12-90) | Read and write | ||||
| Auto Cross Over (12-91) | Read and write | ||||
| IGMP Snooping (12-92) | Read and write | ||||
| Cable Error Length (12-93) | Read and write | ||||
| Broadcast Storm Protection (12-94) | % | Read and write | |||
| Inactivity Timeout (12-95) | Read and write | ||||
| Port Config (12-96) | Read and write | ||||
| QoS Priority (12-97) | Read and write | ||||
| Interface Counters (12-98) | Read | ||||
| Media Counters (12-99) | Read | ||||
| SL Controller Mode (13-00) | Read and write | ||||
| Start Event (13-01) | Read and write | ||||
| Stop Event (13-02) | Read and write | ||||
| Reset SLC (13-03) | Read and write | ||||
| Comparator Operand (13-10) | Read and write | ||||
| Comparator Operator (13-11) | Read and write | ||||
| Comparator Value (13-12) | Read and write | ||||
| RS-FF Operand S (13-15) | Read and write | ||||
| RS-FF Operand R (13-16) | Read and write | ||||
| SL Controller Timer (13-20) | Read and write | ||||
| Logic Rule Boolean 1 (13-40) | Read and write | ||||
| Logic Rule Operator 1 (13-41) | Read and write | ||||
| Logic Rule Boolean 2 (13-42) | Read and write | ||||
| Logic Rule Operator 2 (13-43) | Read and write | ||||
| Logic Rule Boolean 3 (13-44) | Read and write | ||||
| SL Controller Event (13-51) | Read and write | ||||
| SL Controller Action (13-52) | Read and write | ||||
| SL Controller 2 Event (13-53) | Read and write | ||||
| SL Controller 2 Action (13-54) | Read and write | ||||
| SL Controller 3 Event (13-55) | Read and write | ||||
| SL Controller 3 Action (13-56) | Read and write | ||||
| SL Controller 4 Event (13-57) | Read and write | ||||
| SL Controller 4 Action (13-58) | Read and write | ||||
| Alert Trigger (13-90) | Read and write | ||||
| Alert Action (13-91) | Read and write | ||||
| Alert Text (13-92) | Read and write | ||||
| Alert Alarm Word (13-97) | Read | ||||
| Alert Warning Word (13-98) | Read | ||||
| Alert Status Word (13-99) | Read | ||||
| Switching Pattern (14-00) | Read and write | ||||
| Switching Frequency (14-01) | Read and write | ||||
| Switching Pattern Shift Frequency (14-02) | Hz | Read and write | |||
| Overmodulation (14-03) | Read and write | ||||
| Acoustic Noise Reduction (14-04) | Read and write | ||||
| PWM Generation (14-05) | Read and write | ||||
| Dead Time Compensation (14-06) | Read and write | ||||
| Mains Failure (14-10) | Read and write | ||||
| Mains Fault Voltage Level (14-11) | V | Read and write | |||
| Response to Mains Imbalance (14-12) | Read and write | ||||
| Kin. Back-up Time-up (14-14) | s | Read and write | |||
| Kin. Back-up Trip Recovery Level (14-15) | Read and write | ||||
| Kin. Back-up Gain (14-16) | % | Read and write | |||
| Fast Mains Phase Loss Level (14-17) | % | Read and write | |||
| Fast Mains Phase Loss Min Power (14-18) | % | Read and write | |||
| Reset Mode (14-20) | Read and write | ||||
| Automatic Restart Time (14-21) | s | Read and write | |||
| Operation Mode (14-22) | Read and write | ||||
| Trip Delay at Current Limit (14-24) | s | Read and write | |||
| Trip Delay at Torque Limit (14-25) | s | Read and write | |||
| Trip Delay at Inverter Fault (14-26) | s | Read and write | |||
| Current Lim Ctrl, Proportional Gain (14-30) | % | Read and write | |||
| Current Lim Ctrl, Integration Time (14-31) | s | Read and write | |||
| Current Lim Ctrl, Filter Time (14-32) | ms | Read and write | |||
| Torque Change Detection (14-33) | Read and write | ||||
| Stall Protection Adjustment Factor (14-34) | % | Read and write | |||
| Stall Protection (14-35) | Read and write | ||||
| Field-weakening Function (14-36) | Read and write | ||||
| Fieldweakening Speed (14-37) | rpm | Read and write | |||
| Field Weakening Controller Gain (14-38) | % | Read and write | |||
| Torque Change Threshold Limit (14-39) | % | Read and write | |||
| VT Level (14-40) | % | Read and write | |||
| AEO Minimum Magnetization (14-41) | % | Read and write | |||
| Minimum AEO Frequency (14-42) | Hz | Read and write | |||
| Motor Cosphi (14-43) | Read and write | ||||
| d-axis Reference Gain (14-44) | % | Read and write | |||
| PROFIEnergy Times (14-46) | Read and write | ||||
| PROFIEnergy State (14-47) | Read and write | ||||
| PROFIEnergy Desired State (14-48) | Read and write | ||||
| PROFIEnergy Info (14-49) | Read and write | ||||
| RFI Filter (14-50) | Read and write | ||||
| DC-link Compensation (14-51) | Read and write | ||||
| Fan Control (14-52) | Read and write | ||||
| Fan Monitor (14-53) | Read and write | ||||
| Output Filter (14-55) | Read and write | ||||
| Capacitance Output Filter (14-56) | Read and write | ||||
| Inductance Output Filter (14-57) | Read and write | ||||
| Actual Number of Inverter Units (14-59) | Read and write | ||||
| Function at Over Temperature (14-60) | Read and write | ||||
| Function at Inverter Overload (14-61) | Read and write | ||||
| Inv. Overload Derate Current (14-62) | % | Read and write | |||
| Power Derating Ratio (14-68) | % | Read and write | |||
| Legacy Alarm Word (14-72) | Read and write | ||||
| Legacy Warning Word (14-73) | Read and write | ||||
| Leg. Ext. Status Word (14-74) | Read and write | ||||
| Option Supplied by External 24VDC (14-80) | Read and write | ||||
| Option Data Storage (14-88) | Read and write | ||||
| Option Detection (14-89) | Read and write | ||||
| Fault Level (14-90) | Read and write | ||||
| External Interlock Delay (22-00) | s | Read and write | |||
| Start Command Delay (22-03) | ms | Read and write | |||
| ON Time (23-00) | Read and write | ||||
| ON Action (23-01) | Read and write | ||||
| OFF Time (23-02) | Read and write | ||||
| OFF Action (23-03) | Read and write | ||||
| Occurrence (23-04) | Read and write | ||||
| Timed Actions Mode (23-08) | Read and write | ||||
| Timed Actions Reactivation (23-09) | Read and write | ||||
| Maintenance Item (23-10) | Read and write | ||||
| Maintenance Action (23-11) | Read and write | ||||
| Maintenance Base (23-12) | Read and write | ||||
| Maintenance Interval (23-13) | Read and write | ||||
| Maintenance Date and Time (23-14) | Read and write | ||||
| Reset Maintenance Word (23-15) | Read and write | ||||
| Maintenance Text (23-16) | Read and write | ||||
| Reset Mechanical Brake Counter (23-18) | Read and write | ||||
| Emergency Mode Function (24-00) | Read and write | ||||
| Emergency Mode Configuration (24-01) | Read and write | ||||
| Emergency Mode Unit (24-02) | Read and write | ||||
| Emergency Mode Min Reference (24-03) | Read and write | ||||
| Emergency Mode Max Reference (24-04) | Read and write | ||||
| Emergency Mode Preset Reference (24-05) | % | Read and write | |||
| Emergency Mode Reference Source (24-06) | Read and write | ||||
| Emergency Mode Feedback Source (24-07) | Read and write | ||||
| Emergency Mode Alarm Handling (24-09) | Read and write | ||||
| Emergency Mode Ramp Up Time (24-40) | s | Read and write | |||
| Emergency Mode Ramp Down Time (24-41) | s | Read and write | |||
| Timeout for Emergency Mode Test (24-42) | min | Read and write | |||
| Emergency Mode Signal Operation (24-43) | Read and write | ||||
| Switch Source A (24-50) | Read and write | ||||
| Axis Direction A (24-51) | Read and write | ||||
| First Position A (24-52) | Read and write | ||||
| Last Position A (24-53) | Read and write | ||||
| On Compensation A (24-54) | ms | Read and write | |||
| Off Compensation A (24-55) | ms | Read and write | |||
| Switch Source B (24-60) | Read and write | ||||
| Axis Direction B (24-61) | Read and write | ||||
| First Position B (24-62) | Read and write | ||||
| Last Position B (24-63) | Read and write | ||||
| On Compensation B (24-64) | ms | Read and write | |||
| Off Compensation B (24-65) | ms | Read and write | |||
| Min Ref. Change (24-70) | rpm | Read and write | |||
| Rope Length (24-71) | Read and write | ||||
| Period of Swing (24-72) | s | Read and write | |||
| Max Speed Change per Swing (24-73) | rpm | Read and write | |||
| Notch Filter Bandwidth (24-74) | % | Read and write | |||
| Wobble Mode (30-00) | Read and write | ||||
| Wobble Delta Frequency [Hz] (30-01) | Hz | Read and write | |||
| Wobble Delta Freqeuncy [%] (30-02) | % | Read and write | |||
| Wobble Delta Freq. Scaling Resource (30-03) | Read and write | ||||
| Wobble Jump Frequency [Hz] (30-04) | Hz | Read and write | |||
| Wobble Jump Frequency [%] (30-05) | % | Read and write | |||
| Wobble Jump Time (30-06) | s | Read and write | |||
| Wobble Sequence Time (30-07) | s | Read and write | |||
| Wobble Up/Down Time (30-08) | s | Read and write | |||
| Wobble Random Function (30-09) | Read and write | ||||
| Wobble Ratio (30-10) | Read and write | ||||
| Wobble Random Ratio Max. (30-11) | Read and write | ||||
| Wobble Random Ratio Min. (30-12) | Read and write | ||||
| Wobble Delta Freq. Scaled (30-19) | Hz | Read | |||
| High Starting Torque Time [s] (30-20) | s | Read and write | |||
| High Starting Torque Current [%] (30-21) | % | Read and write | |||
| Locked Rotor Protection (30-22) | Read and write | ||||
| Locked Rotor Detection Time [s] (30-23) | s | Read and write | |||
| Locked Rotor Detection Speed Error [%] (30-24) | % | Read and write | |||
| Measurement Duration (30-25) | s | Read and write | |||
| Delay Before Measurements (30-26) | s | Read and write | |||
| Light Load Speed [%] (30-27) | % | Read and write | |||
| Evacuation Speed [%] (30-28) | % | Read and write | |||
| Ramp Time (30-29) | s | Read and write | |||
| Heat Sink Fan Mode (30-50) | Read and write | ||||
| Power Low Monitoring (30-70) | Read and write | ||||
| PLM Detection Time (30-71) | s | Read and write | |||
| PLM Min. Speed (30-72) | % | Read and write | |||
| PLM Detection Factor (30-73) | Read and write | ||||
| d-axis Inductance (Ld) (30-80) | Read and write | ||||
| Brake Resistor (ohm) (30-81) | Read and write | ||||
| Speed PID Proportional Gain (30-83) | Read and write | ||||
| Process PID Proportional Gain (30-84) | Read and write | ||||
| Motor Frequency (30-85) | Hz | Read and write | |||
| System Inertia (30-88) | Read and write | ||||
| Trip Delay at Current Limit (30-89) | s | Read and write | |||
| Bypass Mode (31-00) | Read and write | ||||
| Bypass Start Time Delay (31-01) | s | Read and write | |||
| Bypass Trip Time Delay (31-02) | s | Read and write | |||
| Test Mode Activation (31-03) | Read and write | ||||
| Bypass Status Word (31-10) | Read | ||||
| Bypass Running Hours (31-11) | h | Read | |||
| Remote Bypass Activation (31-19) | Read and write | ||||
| Operating Hours (15-00) | h | Read | |||
| Running Hours (15-01) | h | Read | |||
| kWh Counter (15-02) | kWh | Read | |||
| Power Up's (15-03) | Read | ||||
| Over Temp's (15-04) | Read | ||||
| Over Volt's (15-05) | Read | ||||
| Reset kWh Counter (15-06) | Read and write | ||||
| Reset Running Hours Counter (15-07) | Read and write | ||||
| Logging Source (15-10) | Read and write | ||||
| Logging Interval (15-11) | Read and write | ||||
| Trigger Event (15-12) | Read and write | ||||
| Logging Mode (15-13) | Read and write | ||||
| Samples Before Trigger (15-14) | Read and write | ||||
| Info Message: "Service Log Full" (15-15) | Read and write | ||||
| Service Log Trigger Alarm (15-17) | Read and write | ||||
| Service Log Trigger SLC (15-18) | Read and write | ||||
| Historic Log: Event (15-20) | Read | ||||
| Historic Log: Value (15-21) | Read | ||||
| Historic log: Time (15-22) | ms | Read | |||
| kWh Counter Reset Time (15-28) | Read | ||||
| Running Hour Reset Time (15-29) | Read | ||||
| Fault Log: Error Code (15-30) | Read | ||||
| Fault Log: Value (15-31) | Read | ||||
| Fault Log: Time (15-32) | s | Read | |||
| Fault Log: Date and Time (15-33) | Read | ||||
| Alarm Log: Speed (15-38) | rpm | Read | |||
| FC Type (15-40) | Read | ||||
| Power Section (15-41) | Read | ||||
| Voltage (15-42) | Read | ||||
| Software Version (15-43) | Read | ||||
| Ordered Typecode String (15-44) | Read | ||||
| Actual Typecode String (15-45) | Read | ||||
| Frequency Converter Ordering No (15-46) | Read | ||||
| Power Card Ordering No (15-47) | Read | ||||
| LCP ID No (15-48) | Read | ||||
| SW ID Control Card (15-49) | Read | ||||
| SW ID Power Card (15-50) | Read | ||||
| Frequency Converter Serial Number (15-51) | Read and write | ||||
| Power Card Serial Number (15-53) | Read | ||||
| Config File Name (15-54) | Read | ||||
| Smart Setup Filename (15-58) | Read | ||||
| Filename (15-59) | Read | ||||
| Option Mounted (15-60) | Read | ||||
| Option SW Version (15-61) | Read | ||||
| Option Ordering No (15-62) | Read | ||||
| Option Serial No (15-63) | Read | ||||
| Option in Slot A (15-70) | Read | ||||
| Slot A Option SW Version (15-71) | Read | ||||
| Option in Slot B (15-72) | Read | ||||
| Slot B SW Version (15-73) | Read | ||||
| Option in Slot C0/E0 (15-74) | Read | ||||
| Slot C0/E0 Option SW Version (15-75) | Read | ||||
| Option in Slot C1/E1 (15-76) | Read | ||||
| Slot C1/E1 Option SW Version (15-77) | Read | ||||
| Fan Running Hours (15-80) | h | Read | |||
| Preset Fan Running Hours (15-81) | h | Read and write | |||
| Motor Ud (15-83) | V | Read | |||
| Motor Uq (15-84) | V | Read | |||
| Motor Id (15-85) | A | Read | |||
| Motor Iq (15-86) | A | Read | |||
| kWh Counter Hires (15-87) | kWh | Read | |||
| Configuration Change Counter (15-89) | Read | ||||
| Defined Parameters (15-92) | Read and write | ||||
| Modified Parameters (15-93) | Read | ||||
| Extended Version (15-94) | Read | ||||
| Drive Identification (15-98) | Read | ||||
| Parameter Metadata (15-99) | Read |
Loading registers…

Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Log motor power, current and speed per machine to spot overload and wear.
- Get an alert when the drive raises an alarm or warning, with the alarm word to see why.
- Start, stop and set the speed reference of a conveyor or pump from a dashboard.
- Track operating hours and the kWh counter for maintenance planning and energy reports.
- Compare ramp times, limits and motor data across drives to keep settings consistent.
Installation
Connect terminals 68 (P, RS485+) and 69 (N, RS485-) of the FC 302 to A and B of the ModbusCloud Gateway and switch on the bus termination at the end of the line.
On the drive set 8-30 Protocol to Modbus RTU, and set address, baud rate and parity in 8-31 to 8-33.
In ModbusCloud, add a Modbus device (RTU) with the same address and serial settings, then import this template.
Check that frequency, current and the status word match the drive display.
Before writing the control word or reference, set 8-50 to 8-56 so that the drive accepts commands over the bus.
Things to watch for
The drive does not answer. What should I check?
Check that 8-30 is set to Modbus RTU and that address, baud rate and parity in 8-31 to 8-33 match ModbusCloud. Swap A and B if nothing answers and check the termination switch.
Every value is off by one parameter. Why?
The register number is parameter number x 10 and is 1-based. The template already uses address (parameter number x 10) minus 1, which is the address in the Modbus message.
How do I read the other elements of an array parameter?
Write the index to holding register 9 (address 8) first. Every following read or write of an array parameter then uses that index.
My written values are gone after a power cycle. Why?
Coil 65 decides where writes go. With 0 they only go to RAM; set it to 1 to store them in EEPROM as well, and avoid writing to EEPROM in a fast loop.
Power is ten times too high or too low. What is wrong?
Power parameters use conversion index 1 in the guide. The template reads them as watts (raw x 10). Compare with the drive display and adjust the scale if your firmware differs.
Want to see how it works?
