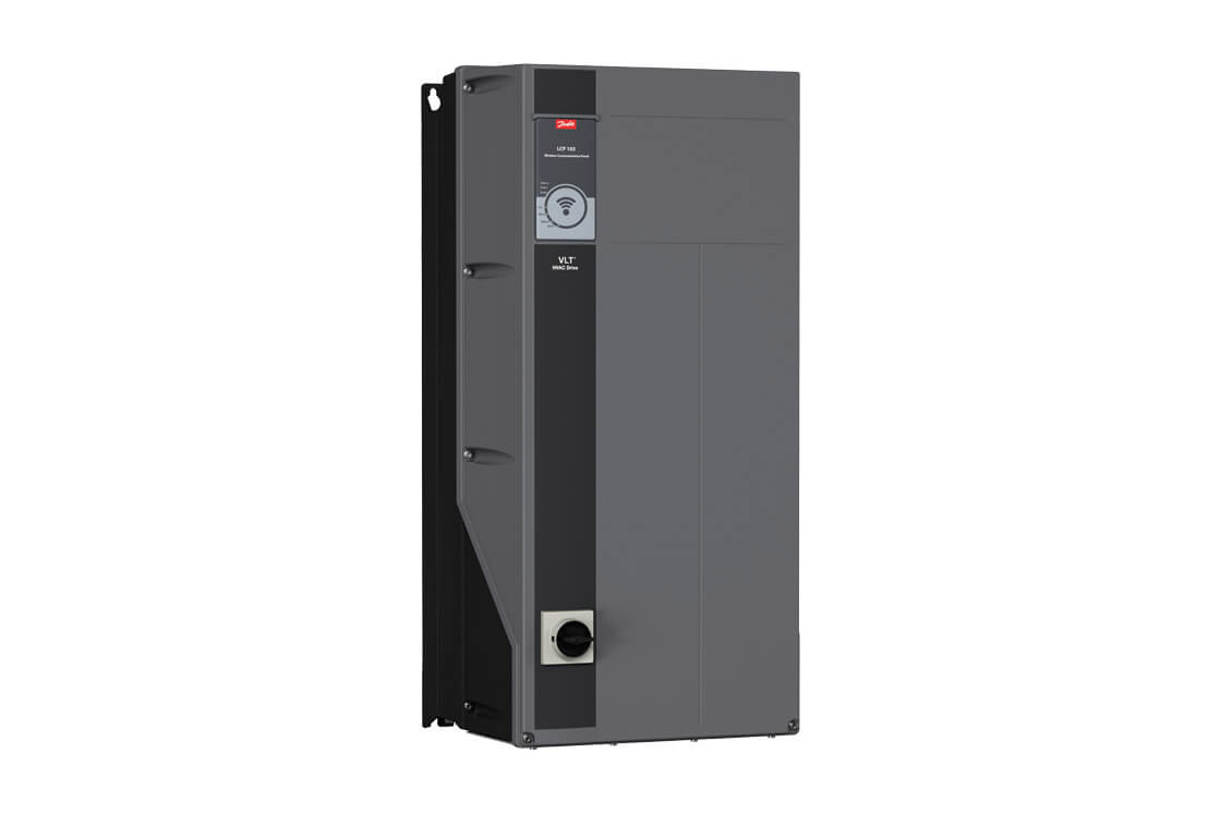

Danfoss VLT HVAC Drive FC 102
Frequency converter for HVAC fans and pumps: motor readings, alarms, start and stop, speed reference and settings.
The Danfoss VLT HVAC Drive FC 102 is a frequency converter that controls fans, pumps and compressors in heating, ventilation and air conditioning systems. This Modbus RTU template reads motor frequency, current, power, torque, thermal load and alarm words, and lets you start, stop and set speed and drive parameters from ModbusCloud.
- Protocol
- Modbus RTU
- Connection
- RS485, 19200 baud
- Registers
- 1266, read and write
- Brand
- Danfoss
- Key readings
- Output frequency · Motor current · Motor power · Torque · DC link voltage · Motor thermal load · Alarm word · Warning word
- Available commands
- Control word · Speed reference · Ramp times · Speed limits · PID setpoints
- Compatible models
- VLT HVAC Drive FC 102
- Last updated
Registers (1266)
1232 read, 813 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Output Frequency | Hz | Read | 16129 | FC03 | uint16 |
| Motor Current | A | Read | 16139 | FC03 | int32 |
| Motor Power | W | Read | 16099 | FC03 | int32 |
| Motor Voltage | V | Read | 16119 | FC03 | uint16 |
| DC Link Voltage | V | Read | 16299 | FC03 | uint16 |
| Torque Percent | % | Read | |||
| Torque | Nm | Read | |||
| Motor Thermal Load | % | Read | |||
| Inverter Thermal Load | % | Read | |||
| Reference Percent | % | Read | |||
| Reference | Read | ||||
| Feedback | Read | ||||
| PID Output | % | Read | |||
| Analog Input 53 | Read | ||||
| Analog Input 54 | Read | ||||
| Digital Inputs | Read | ||||
| Alarm Word | Read | ||||
| Alarm Word 2 | Read | ||||
| Warning Word | Read | ||||
| Warning Word 2 | Read | ||||
| Extended Status Word | Read | ||||
| Maintenance Word | Read | ||||
| Number of Starts | Read | ||||
| Power Ups | Read | ||||
| Over Temperature Count | Read | ||||
| Over Voltage Count | Read | ||||
| Status Word Coil Control Ready | Read | ||||
| Status Word Coil Drive Ready | Read | ||||
| Status Word Coil Coasting Stop | Read | ||||
| Status Word Coil Alarm | Read | ||||
| Status Word Coil Bit 04 | Read | ||||
| Status Word Coil Bit 05 | Read | ||||
| Status Word Coil Bit 06 | Read | ||||
| Status Word Coil Warning | Read | ||||
| Status Word Coil At Reference | Read | ||||
| Status Word Coil Hand or Auto | Read | ||||
| Status Word Coil In Frequency Range | Read | ||||
| Status Word Coil Running | Read | ||||
| Status Word Coil Bit 12 | Read | ||||
| Status Word Coil Voltage Warning | Read | ||||
| Status Word Coil Current Limit | Read | ||||
| Status Word Coil Thermal Warning | Read | ||||
| Output Frequency Coil 1 | Read | ||||
| Output Frequency Coil 2 | Read | ||||
| Output Frequency Coil 3 | Read | ||||
| Output Frequency Coil 4 | Read | ||||
| Output Frequency Coil 5 | Read | ||||
| Output Frequency Coil 6 | Read | ||||
| Output Frequency Coil 7 | Read | ||||
| Output Frequency Coil 8 | Read | ||||
| Output Frequency Coil 9 | Read | ||||
| Output Frequency Coil 10 | Read | ||||
| Output Frequency Coil 11 | Read | ||||
| Output Frequency Coil 12 | Read | ||||
| Output Frequency Coil 13 | Read | ||||
| Output Frequency Coil 14 | Read | ||||
| Output Frequency Coil 15 | Read | ||||
| Output Frequency Coil 16 | Read | ||||
| Last Error Code | Read | ||||
| Main Actual Value | Read | ||||
| Control Word | Read | ||||
| Status Word | Read | ||||
| Main Actual Value [%] | % | Read | |||
| Customer Readout | Read | ||||
| Power [hp] | Read | ||||
| Frequency [%] | % | Read | |||
| Speed [RPM] | rpm | Read | |||
| Thermistor Sensor Temperature | °C | Read | |||
| Motor Angle | Read | ||||
| Motor Shaft Power [kW] | kW | Read | |||
| Calibrated Stator Resistance | Ω | Read | |||
| Power Filtered [kW] | kW | Read | |||
| Power Filtered [hp] | Read | ||||
| Brake Energy/s | kW | Read | |||
| Brake Energy Average | kW | Read | |||
| Heatsink Temp. | °C | Read | |||
| Inv. Nom. Current | A | Read and write | |||
| Inv. Max. Current | A | Read and write | |||
| SL Controller State | Read | ||||
| Control Card Temp. | °C | Read | |||
| Logging Buffer Full | Read and write | ||||
| Service Log Counter | Read | ||||
| Timed Actions Status | Read | ||||
| Speed Error [RPM] | rpm | Read | |||
| Motor Phase U Current | A | Read | |||
| Motor Phase V Current | A | Read | |||
| Motor Phase W Current | A | Read | |||
| Speed Ref. After Ramp [RPM] | rpm | Read | |||
| Current Fault Source | Read | ||||
| External Reference | Read | ||||
| Digi Pot Reference | Read | ||||
| Feedback 1 [Unit] | Read | ||||
| Feedback 2 [Unit] | Read | ||||
| Feedback 3 [Unit] | Read | ||||
| Adjusted Setpoint | Read | ||||
| Terminal 53 Switch Setting | Read | ||||
| Terminal 54 Switch Setting | Read | ||||
| Analog Output 42 [mA] | Read | ||||
| Digital Output [bin] | Read | ||||
| Freq. Input #29 [Hz] | Hz | Read | |||
| Freq. Input #33 [Hz] | Hz | Read | |||
| Pulse Output #27 [Hz] | Hz | Read | |||
| Pulse Output #29 [Hz] | Hz | Read | |||
| Relay Output [bin] | Read | ||||
| Counter A | Read | ||||
| Counter B | Read | ||||
| Analog In X30/11 | Read | ||||
| Analog In X30/12 | Read | ||||
| Analog Out X30/8 [mA] | Read | ||||
| Analog Out X45/1 [mA] | Read | ||||
| Analog Out X45/3 [mA] | Read | ||||
| Fieldbus CTW 1 | Read | ||||
| Fieldbus REF 1 | Read | ||||
| Comm. Option STW | Read | ||||
| FC Port CTW 1 | Read | ||||
| FC Port REF 1 | Read | ||||
| Bus Readout Alarm/Warning | Read | ||||
| Ext. Status Word 2 | Read | ||||
| Alarm Word 3 | Read | ||||
| Warning Word 3 | Read | ||||
| Ext. Status Word 3 | Read | ||||
| Maintenance Log: Item | Read | ||||
| Maintenance Log: Action | Read | ||||
| Maintenance Log: Time | s | Read | |||
| Maintenance Log: Date and Time | Read | ||||
| Fire Mode Log: Event | Read | ||||
| Fire Mode Log: Time | s | Read | |||
| Fire Mode Log: Date and Time | Read | ||||
| Parameter Number | Read | ||||
| Parameter Index | Read | ||||
| Change Time | Read | ||||
| Operating Hours 2 | Read | ||||
| Running Hours 2 | Read | ||||
| Value Before Change as Integer | Read | ||||
| Value Before Change | Read | ||||
| Analog Input X42/1 | Read | ||||
| Analog Input X42/3 | Read | ||||
| Analog Input X42/5 | Read | ||||
| Analog Input X42/7 [V] | V | Read | |||
| Analog Input X42/9 [V] | V | Read | |||
| Analog Input X42/11 [V] | V | Read | |||
| Analog Input X48/2 [mA] | Read | ||||
| Temp. Input X48/4 | Read | ||||
| Temp. Input X48/7 | Read | ||||
| Temp. Input X48/10 | Read | ||||
| Analog Input X49/1 | Read | ||||
| Analog Input X49/3 | Read | ||||
| Analog Input X49/5 | Read | ||||
| Analog Input X49/7 | Read | ||||
| Analog Input X49/9 | Read | ||||
| Analog Input X49/11 | Read | ||||
| X49 Digital Output [bin] | Read | ||||
| Last Warning | Read | ||||
| Last Warning Count | Read | ||||
| Sensorless Readout [Unit] | Read | ||||
| Active Alarm Numbers | Read | ||||
| Active Warning Numbers | Read | ||||
| Air Pressure to Flow Air Flow | Read | ||||
| Digital Input 2 | Read | ||||
| AMA Status | Read | ||||
| Actual Switching Frequency | Read | ||||
| Alarm Word 4 | Read | ||||
| Warning Word 4 | Read | ||||
| Mains Voltage | V | Read | |||
| Mains Frequency | Hz | Read | |||
| Mains Imbalance | % | Read | |||
| Worst Inrush | Read | ||||
| Inrush Mode | Read | ||||
| Rectifier DC Volt | V | Read | |||
| Mains Voltage 2 | V | Read | |||
| Mains Frequency 2 | Hz | Read | |||
| Mains Imbalance 2 | % | Read | |||
| Rectifier DC Volt. 2 | V | Read | |||
| Service Word | Read | ||||
| Operating Hours | h | Read | |||
| Running Hours | h | Read | |||
| kWh Counter | kWh | Read | |||
| Reset kWh Counter | Read and write | ||||
| Reset Running Hours Counter | Read and write | ||||
| Logging Source | Read and write | ||||
| Logging Interval | Read and write | ||||
| Trigger Event | Read and write | ||||
| Logging Mode | Read and write | ||||
| Samples Before Trigger | Read and write | ||||
| Info Message: "Service Log Full" | Read and write | ||||
| Service Log Trigger Alarm | Read and write | ||||
| Service Log Trigger SLC | Read and write | ||||
| Historic Log: Event | Read | ||||
| Historic Log: Value | Read | ||||
| Historic log: Time | ms | Read | |||
| Historic Log: Date and Time | Read | ||||
| kWh Counter Reset Time | Read | ||||
| Running Hour Reset Time | Read | ||||
| Alarm Log: Error Code | Read | ||||
| Alarm Log: Value | Read | ||||
| Alarm Log: Time | s | Read | |||
| Alarm Log: Date and Time | Read | ||||
| Alarm Log: Speed | rpm | Read | |||
| FC Type | Read | ||||
| Power Section | Read | ||||
| Voltage | Read | ||||
| Software Version | Read | ||||
| Ordered Typecode String | Read | ||||
| Actual Typecode String | Read | ||||
| Frequency Converter Ordering No | Read | ||||
| Power Card Ordering No | Read | ||||
| LCP ID No | Read | ||||
| SW ID Control Card | Read | ||||
| SW ID Power Card | Read | ||||
| Frequency Converter Serial Number | Read and write | ||||
| Power Card Serial Number | Read | ||||
| Config File Name | Read | ||||
| Vendor URL | Read | ||||
| Vendor Name | Read | ||||
| Smart Setup Filename | Read | ||||
| Option Mounted | Read | ||||
| Option SW Version | Read | ||||
| Option Ordering No | Read | ||||
| Option Serial No | Read | ||||
| Application Version | Read | ||||
| Option in Slot A | Read | ||||
| Slot A Option SW Version | Read | ||||
| Option in Slot B | Read | ||||
| Slot B SW Version | Read | ||||
| Option in Slot C0/E0 | Read | ||||
| Slot C0/E0 Option SW Version | Read | ||||
| Option in Slot C1/E1 | Read | ||||
| Slot C1/E1 Option SW Version | Read | ||||
| Fan Running Hours | h | Read | |||
| Preset Fan Running Hours | h | Read and write | |||
| kWh Counter Hires | kWh | Read | |||
| Defined Parameters | Read and write | ||||
| Modified Parameters | Read | ||||
| Extended Version | Read | ||||
| Drive Identification | Read | ||||
| Parameter Metadata | Read | ||||
| Control Word Coil Preset Reference LSB | Write | ||||
| Control Word Coil Preset Reference MSB | Write | ||||
| Control Word Coil DC Brake | Write | ||||
| Control Word Coil Coast Stop | Write | ||||
| Control Word Coil Quick Stop | Write | ||||
| Control Word Coil Freeze Frequency | Write | ||||
| Control Word Coil Ramp Stop or Start | Write | ||||
| Control Word Coil Reset | Write | ||||
| Control Word Coil Jog | Write | ||||
| Control Word Coil Ramp Select | Write | ||||
| Control Word Coil Data Valid | Write | ||||
| Control Word Coil Relay 1 | Write | ||||
| Control Word Coil Relay 2 | Write | ||||
| Control Word Coil Setup Select LSB | Write | ||||
| Control Word Coil Setup Select MSB | Write | ||||
| Control Word Coil Reversing | Write | ||||
| Speed Reference Coil 1 | Write | ||||
| Speed Reference Coil 2 | Write | ||||
| Speed Reference Coil 3 | Write | ||||
| Speed Reference Coil 4 | Write | ||||
| Speed Reference Coil 5 | Write | ||||
| Speed Reference Coil 6 | Write | ||||
| Speed Reference Coil 7 | Write | ||||
| Speed Reference Coil 8 | Write | ||||
| Speed Reference Coil 9 | Write | ||||
| Speed Reference Coil 10 | Write | ||||
| Speed Reference Coil 11 | Write | ||||
| Speed Reference Coil 12 | Write | ||||
| Speed Reference Coil 13 | Write | ||||
| Speed Reference Coil 14 | Write | ||||
| Speed Reference Coil 15 | Write | ||||
| Speed Reference Coil 16 | Write | ||||
| Parameter Write Control | Read and write | ||||
| Array Index Pointer | Read and write | ||||
| Bus Control Word | Write | ||||
| Bus Reference | Write | ||||
| Bus Status Word | Read | ||||
| Language | Read and write | ||||
| Motor Speed Unit | Read and write | ||||
| Regional Settings | Read and write | ||||
| Operating State at Power-up (Hand) | Read and write | ||||
| Local Mode Unit | Read and write | ||||
| Active Set-up | Read and write | ||||
| Programming Set-up | Read and write | ||||
| This Set-up Linked to | Read and write | ||||
| Readout: Linked Set-ups | Read | ||||
| Readout: Edit Set-ups/Channel | Read | ||||
| Readout: Actual Setup | Read | ||||
| Active Fire Mode Setup | Read | ||||
| Display Line 1.1 Small | Read and write | ||||
| My Personal Menu | Read and write | ||||
| Custom Readout Unit | Read and write | ||||
| Min Value of User-defined Readout | Read and write | ||||
| Custom Readout Max Value | Read and write | ||||
| Display Text 1 | Read and write | ||||
| Display Text 2 | Read and write | ||||
| Display Text 3 | Read and write | ||||
| [Hand On] Key on LCP | Read and write | ||||
| [Off] Key on LCP | Read and write | ||||
| [Auto On] Key on LCP | Read and write | ||||
| [Reset] Key on LCP | Read and write | ||||
| [Off/Reset] Key on LCP | Read and write | ||||
| [Drive Bypass] Key on LCP | Read and write | ||||
| LCP Copy | Read and write | ||||
| Set-up Copy | Read and write | ||||
| Main Menu Password | Read and write | ||||
| Access to Main Menu w/o Password | Read and write | ||||
| Personal Menu Password | Read and write | ||||
| Access to Personal Menu w/o Password | Read and write | ||||
| Bus Password Access | Read and write | ||||
| Date and Time | Read and write | ||||
| Date Format | Read and write | ||||
| Time Format | Read and write | ||||
| Time Zone Offset | min | Read and write | |||
| DST/Summertime | Read and write | ||||
| Last Power Off Time | Read | ||||
| DST/Summertime Start | Read and write | ||||
| DST/Summertime End | Read and write | ||||
| Clock Fault | Read and write | ||||
| Working Days | Read and write | ||||
| Additional Working Days | Read and write | ||||
| Additional Non-working Days | Read and write | ||||
| Time for Fieldbus | Read and write | ||||
| Summer Time Start for Fieldbus | Read and write | ||||
| Summer Time End for Fieldbus | Read and write | ||||
| Clock Restore at Powerup | Read and write | ||||
| Date and Time Readout | Read | ||||
| Integrity Check at Power-up | Read and write | ||||
| Checksum (SHA256) | Read | ||||
| Session Timeout (in Seconds) | s | Read and write | |||
| Max Login Attempts | Read and write | ||||
| Warning LED Blinking | Read and write | ||||
| Configuration Mode | Read and write | ||||
| Motor Control Principle | Read and write | ||||
| Torque Characteristics | Read and write | ||||
| Local Mode Configuration | Read and write | ||||
| Clockwise Direction | Read and write | ||||
| Motor Construction | Read and write | ||||
| Damping Gain | % | Read and write | |||
| Low Speed Filter Time Const. | s | Read and write | |||
| High Speed Filter Time Const. | s | Read and write | |||
| Voltage Filter Time Const. | s | Read and write | |||
| Motor Power [kW] | kW | Read and write | |||
| Motor Power [HP] | Read and write | ||||
| Motor Voltage 2 | V | Read and write | |||
| Motor Frequency | Hz | Read and write | |||
| Motor Current 2 | A | Read and write | |||
| Motor Nominal Speed | rpm | Read and write | |||
| Motor Cont. Rated Torque | Nm | Read and write | |||
| Motor Rotation Check | Read and write | ||||
| Automatic Motor Adaptation (AMA) | Read and write | ||||
| Stator Resistance (Rs) | Ω | Read and write | |||
| Rotor Resistance (Rr) | Ω | Read and write | |||
| Stator Leakage Reactance (X1) | Ω | Read and write | |||
| Rotor Leakage Reactance (X2) | Ω | Read and write | |||
| Main Reactance (Xh) | Read and write | ||||
| Iron Loss Resistance (Rfe) | Ω | Read and write | |||
| d-axis Inductance (Ld) | Read and write | ||||
| q-axis Inductance (Lq) | Read and write | ||||
| Motor Poles | Read and write | ||||
| Back EMF at 1000 RPM | V | Read and write | |||
| d-axis Inductance Sat. (LdSat) | Read and write | ||||
| q-axis Inductance Sat. (LqSat) | Read and write | ||||
| Position Detection Gain | % | Read and write | |||
| Torque Calibration | Read and write | ||||
| d-axis Inductance Sat. Point | % | Read and write | |||
| q-axis Inductance Sat. Point | % | Read and write | |||
| Motor Magnetization at Zero Speed | % | Read and write | |||
| Min Speed Normal Magnetising [RPM] | rpm | Read and write | |||
| Min Speed Normal Magnetising [Hz] | Hz | Read and write | |||
| Model Shift Frequency | Hz | Read and write | |||
| Voltage Reduction in Fieldweakening | V | Read and write | |||
| U/f Characteristic - U | Read and write | ||||
| U/f Characteristic - F | Read and write | ||||
| Flying Start Test Pulses Current | % | Read and write | |||
| Flying Start Test Pulses | % | Read and write | |||
| Low Speed Load Compensation | % | Read and write | |||
| High Speed Load Compensation | % | Read and write | |||
| Slip Compensation | % | Read and write | |||
| Slip Compensation Time Constant | s | Read and write | |||
| Resonance Damping | % | Read and write | |||
| Resonance Damping Time Constant | ms | Read and write | |||
| Min. Current at Low Speed | % | Read and write | |||
| Motor Inertia | Read and write | ||||
| System Inertia | Read and write | ||||
| Start Mode | Read and write | ||||
| Start Delay | s | Read and write | |||
| Start Function | Read and write | ||||
| Flying Start | Read and write | ||||
| Compressor Start Max Speed [RPM] | rpm | Read and write | |||
| Compressor Start Max Speed [Hz] | Hz | Read and write | |||
| Compressor Start Max Time to Trip | s | Read and write | |||
| Function at Stop | Read and write | ||||
| Min Speed for Function at Stop [RPM] | rpm | Read and write | |||
| Trip Speed Low [RPM] | rpm | Read and write | |||
| Trip Speed Low [Hz] | Hz | Read and write | |||
| Motor Thermal Protection | Read and write | ||||
| Motor External Fan | Read and write | ||||
| Thermistor Resource | Read and write | ||||
| ATEX ETR Cur. Lim. Speed Reduction | % | Read and write | |||
| Thermistor Sensor Type | Read and write | ||||
| Thermistor Sensor Resource | Read and write | ||||
| Thermistor Threshold Level | °C | Read and write | |||
| ATEX ETR Interpol. Points Freq. | Read and write | ||||
| ATEX ETR Interpol. Points Current | Read and write | ||||
| DC Hold Current | % | Read and write | |||
| DC Brake Current | % | Read and write | |||
| DC Braking Time | s | Read and write | |||
| DC Brake Cut In Speed [RPM] | rpm | Read and write | |||
| DC Brake Cut In Speed [Hz] | Hz | Read and write | |||
| Parking Current | % | Read and write | |||
| Parking Time | s | Read and write | |||
| Brake Function | Read and write | ||||
| Brake Resistor (ohm) | Ω | Read and write | |||
| Brake Power Limit (kW) | kW | Read and write | |||
| Brake Power Monitoring | Read and write | ||||
| Brake Check | Read and write | ||||
| AC Brake Max. Current | % | Read and write | |||
| Over-voltage Control | Read and write | ||||
| Over-voltage Gain | % | Read and write | |||
| Minimum Reference | Read and write | ||||
| Maximum Reference | Read and write | ||||
| Reference Function | Read and write | ||||
| On Reference Window | Read and write | ||||
| Preset Reference | % | Read and write | |||
| Jog Speed [Hz] | Hz | Read and write | |||
| Reference Site | Read and write | ||||
| Preset Relative Reference | % | Read and write | |||
| Reference Resource 1 | Read and write | ||||
| Reference Resource 2 | Read and write | ||||
| Reference Resource 3 | Read and write | ||||
| Jog Speed [RPM] | rpm | Read and write | |||
| Ramp 1 Ramp Up Time | s | Read and write | |||
| Ramp 1 Ramp Down Time | s | Read and write | |||
| Ramp 2 Ramp Up Time | s | Read and write | |||
| Ramp 2 Ramp Down Time | s | Read and write | |||
| Jog Ramp Time | s | Read and write | |||
| Quick Stop Ramp Time | s | Read and write | |||
| Starting Ramp Up Time | s | Read and write | |||
| Step Size | % | Read and write | |||
| Ramp Time | s | Read and write | |||
| Power Restore | Read and write | ||||
| Maximum Limit | % | Read and write | |||
| Minimum Limit | % | Read and write | |||
| Ramp Delay | Read and write | ||||
| Motor Speed Direction | Read and write | ||||
| Motor Speed Low Limit [RPM] | rpm | Read and write | |||
| Motor Speed Low Limit [Hz] | Hz | Read and write | |||
| Motor Speed High Limit [RPM] | rpm | Read and write | |||
| Motor Speed High Limit [Hz] | Hz | Read and write | |||
| Torque Limit Motor Mode | % | Read and write | |||
| Torque Limit Generator Mode | % | Read and write | |||
| Current Limit | % | Read and write | |||
| Max Output Frequency | Hz | Read and write | |||
| Motor Protection Current Limit | A | Read and write | |||
| Motor Protection Reaction Time | Read and write | ||||
| Motor Check Time Interval | Read and write | ||||
| Warning Current Low | A | Read and write | |||
| Warning Current High | Read and write | ||||
| Warning Speed Low | rpm | Read and write | |||
| Warning Speed High | Read and write | ||||
| Warning Reference Low | Read and write | ||||
| Warning Reference High | Read and write | ||||
| Warning Feedback Low | Read and write | ||||
| Warning Feedback High | Read and write | ||||
| Missing Motor Phase Function | Read and write | ||||
| Motor Check at Start | Read and write | ||||
| Bypass Speed From [RPM] | rpm | Read and write | |||
| Bypass Speed From [Hz] | Hz | Read and write | |||
| Bypass Speed To [RPM] | rpm | Read and write | |||
| Bypass Speed To [Hz] | Hz | Read and write | |||
| Semi-auto Bypass Set-up | Read and write | ||||
| Digital I/O Mode | Read and write | ||||
| Terminal 27 Mode | Read and write | ||||
| Terminal 29 Mode | Read and write | ||||
| Terminal 18 Digital Input | Read and write | ||||
| Terminal 19 Digital Input | Read and write | ||||
| Terminal 27 Digital Input | Read and write | ||||
| Terminal 29 Digital Input | Read and write | ||||
| Terminal 32 Digital Input | Read and write | ||||
| Terminal 33 Digital Inputs | Read and write | ||||
| Terminal X30/2 | Read and write | ||||
| Terminal X30/3 Digital Input | Read and write | ||||
| Terminal X30/4 Digital Input | Read and write | ||||
| Terminal 37 Safe Stop | Read and write | ||||
| Terminal X46/1 Digital Input | Read and write | ||||
| Terminal X46/3 Digital Input | Read and write | ||||
| Terminal X46/5 Digital Input | Read and write | ||||
| Terminal X46/7 Digital Input | Read and write | ||||
| Terminal X46/9 | Read and write | ||||
| Terminal X46/11 Digital Input | Read and write | ||||
| Terminal X46/13 Digital Input | Read and write | ||||
| Terminal 27 Digital Output | Read and write | ||||
| Terminal 29 Digital Output | Read and write | ||||
| Term X30/6 Digi Out (MCB 101) | Read and write | ||||
| Term X30/7 Digi Out (MCB 101) | Read and write | ||||
| Function Relays | Read and write | ||||
| On Delay, Relay | s | Read and write | |||
| Off Delay, Relay | s | Read and write | |||
| Term. 29 Low Frequency | Hz | Read and write | |||
| Term. 29 High Frequency | Hz | Read and write | |||
| Term. 29 Low Ref./Feedb. Value | Read and write | ||||
| Term. 29 High Ref./Feedb. Value | Read and write | ||||
| Pulse Filter Time Constant #29 | ms | Read and write | |||
| Term. 33 Low Frequency | Hz | Read and write | |||
| Term. 33 High Frequency | Hz | Read and write | |||
| Term. 33 Low Ref./Feedb. Value | Read and write | ||||
| Term. 33 High Ref./Feedb. Value | Read and write | ||||
| Pulse Filter Time Constant #33 | ms | Read and write | |||
| Terminal 27 Pulse Output Variable | Read and write | ||||
| Pulse Output Max Freq #27 | Hz | Read and write | |||
| Terminal 29 Pulse Output Variable | Read and write | ||||
| Pulse Output Max Freq #29 | Hz | Read and write | |||
| Terminal X30/6 Pulse Output Variable | Read and write | ||||
| Pulse Output Max Freq #30/6 | Hz | Read and write | |||
| AHF Cap Reconnect Delay | s | Read and write | |||
| Digital & Relay Bus Control | Read and write | ||||
| Pulse Out #27 Bus Control | % | Read and write | |||
| Pulse Out #27 Timeout Preset | % | Read and write | |||
| Pulse Out #29 Bus Control | % | Read and write | |||
| Pulse Out #29 Timeout Preset | % | Read and write | |||
| Pulse Out #30/6 Bus Control | % | Read and write | |||
| Pulse Out #30/6 Timeout Preset | % | Read and write | |||
| Live Zero Timeout Time | s | Read and write | |||
| Live Zero Timeout Function | Read and write | ||||
| Fire Mode Live Zero Timeout Function | Read and write | ||||
| Terminal 53 Low Voltage | V | Read and write | |||
| Terminal 53 High Voltage | V | Read and write | |||
| Terminal 53 Low Current | mA | Read and write | |||
| Terminal 53 High Current | mA | Read and write | |||
| Terminal 53 Low Ref./Feedb. Value | Read and write | ||||
| Terminal 53 High Ref./Feedb. Value | Read and write | ||||
| Terminal 53 Filter Time Constant | s | Read and write | |||
| Terminal 53 Live Zero | Read and write | ||||
| Terminal 54 Low Voltage | V | Read and write | |||
| Terminal 54 High Voltage | V | Read and write | |||
| Terminal 54 Low Current | mA | Read and write | |||
| Terminal 54 High Current | mA | Read and write | |||
| Terminal 54 Low Ref./Feedb. Value | Read and write | ||||
| Terminal 54 High Ref./Feedb. Value | Read and write | ||||
| Terminal 54 Filter Time Constant | s | Read and write | |||
| Terminal 54 Live Zero | Read and write | ||||
| Terminal X30/11 Low Voltage | V | Read and write | |||
| Terminal X30/11 High Voltage | V | Read and write | |||
| Term. X30/11 Low Ref./Feedb. Value | Read and write | ||||
| Term. X30/11 High Ref./Feedb. Value | Read and write | ||||
| Term. X30/11 Filter Time Constant | s | Read and write | |||
| Terminal X30/11 Live Zero | Read and write | ||||
| X30/12 Low Voltage | V | Read and write | |||
| Terminal X30/12 High Voltage | V | Read and write | |||
| Term. X30/12 Low Ref./Feedb. Value | Read and write | ||||
| Term. X30/12 High Ref./Feedb. Value | Read and write | ||||
| X30/12 Filter Time Constant | s | Read and write | |||
| Terminal X30/12 Live Zero | Read and write | ||||
| Terminal 42 Output | Read and write | ||||
| Terminal 42 Output Min Scale | % | Read and write | |||
| Terminal 42 Output Max Scale | % | Read and write | |||
| Term 42 Output Bus Ctrl | % | Read and write | |||
| Term 42 Output Timeout Preset | % | Read and write | |||
| Analog Output Filter | Read and write | ||||
| Terminal X30/8 Output | Read and write | ||||
| Terminal X30/8 Min. Scale | % | Read and write | |||
| Terminal X30/8 Max. Scale | % | Read and write | |||
| Terminal X30/8 Bus Control | % | Read and write | |||
| Terminal X30/8 Output Timeout Preset | % | Read and write | |||
| Terminal X45/1 Output | Read and write | ||||
| Terminal X45/1 Min. Scale | % | Read and write | |||
| Terminal X45/1 Max. Scale | % | Read and write | |||
| Terminal X45/1 Bus Control | % | Read and write | |||
| Terminal X45/1 Output Timeout Preset | % | Read and write | |||
| Terminal X45/3 Output | Read and write | ||||
| Terminal X45/3 Min. Scale | % | Read and write | |||
| Terminal X45/3 Max. Scale | % | Read and write | |||
| Terminal X45/3 Bus Control | % | Read and write | |||
| Terminal X45/3 Output Timeout Preset | % | Read and write | |||
| Speed PID Proportional Gain | Read and write | ||||
| Speed PID Integral Time | ms | Read and write | |||
| Speed PID Differentiation Time | ms | Read and write | |||
| Speed PID Diff. Gain Limit | Read and write | ||||
| Speed PID Lowpass Filter Time | ms | Read and write | |||
| Speed PID Feed Forward Factor | % | Read and write | |||
| Control Site | Read and write | ||||
| Control Word Source | Read and write | ||||
| Control Word Timeout Time | s | Read and write | |||
| Control Word Timeout Function | Read and write | ||||
| End-of-Timeout Function | Read and write | ||||
| Reset Control Word Timeout | Read and write | ||||
| Diagnosis Trigger | Read and write | ||||
| Readout Filtering | Read and write | ||||
| Communication Charset | Read and write | ||||
| Control Word Profile | Read and write | ||||
| Configurable Status Word STW | Read and write | ||||
| Configurable Control Word CTW | Read and write | ||||
| Add Fieldbus ref. to Reference | Read and write | ||||
| Product Code | Read and write | ||||
| Invalid Memory Write Counter | Read and write | ||||
| Protocol | Read and write | ||||
| Address | Read and write | ||||
| FC Port Baud Rate | Read and write | ||||
| Parity/Stop Bits | Read and write | ||||
| Estimated Cycle Time | ms | Read and write | |||
| Minimum Response Delay | ms | Read and write | |||
| Max Response Delay | ms | Read and write | |||
| Max Inter-Char Delay | ms | Read and write | |||
| Protocol/Profile Firmware Version | Read | ||||
| Telegram Selection | Read and write | ||||
| PCD Write Configuration | Read and write | ||||
| PCD Read Configuration | Read and write | ||||
| BTM Transaction Command | Read and write | ||||
| BTM Transaction Status | Read | ||||
| BTM Timeout | s | Read and write | |||
| BTM Maximum Errors | Read and write | ||||
| Coasting Select | Read and write | ||||
| Quick Stop Select | Read and write | ||||
| DC Brake Select | Read and write | ||||
| Start Select | Read and write | ||||
| Reversing Select | Read and write | ||||
| Set-up Select | Read and write | ||||
| Preset Reference Select | Read and write | ||||
| BACnet Device Instance | Read and write | ||||
| MS/TP Max Masters | Read and write | ||||
| MS/TP Max Info Frames | Read and write | ||||
| I-AM Service | Read and write | ||||
| Initialization Password | Read and write | ||||
| VFD Fault Code Mapping New | Read and write | ||||
| Custom Object List | Read and write | ||||
| Bus Message Count | Read | ||||
| Bus Error Count | Read | ||||
| Slave Messages Rcvd | Read | ||||
| Slave Error Count | Read | ||||
| Slave Messages Sent | Read | ||||
| Slave Timeout Errors | Read | ||||
| Diagnostics Count | Read and write | ||||
| Bus Jog 1 Speed | rpm | Read and write | |||
| Bus Jog 2 Speed | rpm | Read and write | |||
| Bus Feedback 2 | Read and write | ||||
| Bus Feedback 3 | Read and write | ||||
| Response Error Codes | Read | ||||
| SL Controller Mode | Read and write | ||||
| Start Event | Read and write | ||||
| Stop Event | Read and write | ||||
| Reset SLC | Read and write | ||||
| Comparator Operand | Read and write | ||||
| Comparator Operator | Read and write | ||||
| Comparator Value | Read and write | ||||
| RS-FF Operand S | Read and write | ||||
| RS-FF Operand R | Read and write | ||||
| SL Controller Timer | Read and write | ||||
| Logic Rule Boolean 1 | Read and write | ||||
| Logic Rule Operator 1 | Read and write | ||||
| Logic Rule Boolean 2 | Read and write | ||||
| Logic Rule Operator 2 | Read and write | ||||
| Logic Rule Boolean 3 | Read and write | ||||
| SL Controller 1 Event | Read and write | ||||
| SL Controller 1 Action | Read and write | ||||
| SL Controller 2 Event | Read and write | ||||
| SL Controller 2 Action | Read and write | ||||
| SL Controller 3 Event | Read and write | ||||
| SL Controller 3 Action | Read and write | ||||
| SL Controller 4 Event | Read and write | ||||
| SL Controller 4 Action | Read and write | ||||
| Alert Trigger | Read and write | ||||
| Alert Action | Read and write | ||||
| Alert Text | Read and write | ||||
| Alert Alarm Word | Read | ||||
| Alert Warning Word | Read | ||||
| Alert Status Word | Read | ||||
| Switching Pattern | Read and write | ||||
| Switching Frequency | Read and write | ||||
| Switching Pattern Shift Frequency | Hz | Read and write | |||
| Overmodulation | Read and write | ||||
| Acoustic Noise Reduction | Read and write | ||||
| PWM Generation | Read and write | ||||
| Mains Failure | Read and write | ||||
| Response to Mains Imbalance | Read and write | ||||
| Kin. Back-up Time-up | s | Read and write | |||
| Kin. Back-up Trip Recovery Level | Read and write | ||||
| Kin. Back-up Gain | % | Read and write | |||
| Fast Mains Phase Loss Level | % | Read and write | |||
| Fast Mains Phase Loss Min Power | % | Read and write | |||
| Reset Mode | Read and write | ||||
| Automatic Restart Time | s | Read and write | |||
| Operation Mode | Read and write | ||||
| Trip Delay at Current Limit | s | Read and write | |||
| Trip Delay at Torque Limit | s | Read and write | |||
| Trip Delay at Inverter Fault | s | Read and write | |||
| Current Lim Ctrl, Proportional Gain | % | Read and write | |||
| Current Lim Ctrl, Integration Time | s | Read and write | |||
| Current Lim Ctrl, Filter Time | ms | Read and write | |||
| Stall Protection | Read and write | ||||
| VT Level | % | Read and write | |||
| AEO Minimum Magnetization | % | Read and write | |||
| Minimum AEO Frequency | Hz | Read and write | |||
| Motor Cosphi | Read and write | ||||
| d-axis Reference Gain | % | Read and write | |||
| PROFIEnergy Times | Read and write | ||||
| PROFIEnergy State | Read and write | ||||
| PROFIEnergy Desired State | Read and write | ||||
| PROFIEnergy Info | Read and write | ||||
| RFI Filter | Read and write | ||||
| DC-link Compensation | Read and write | ||||
| Fan Control | Read and write | ||||
| Fan Monitor | Read and write | ||||
| Output Filter | Read and write | ||||
| Capacitance Output Filter | Read and write | ||||
| Inductance Output Filter | Read and write | ||||
| Actual Number of Inverter Units | Read and write | ||||
| Function at Over Temperature | Read and write | ||||
| Function at Inverter Overload | Read and write | ||||
| Inv. Overload Derate Current | % | Read and write | |||
| Option Supplied by External 24VDC | Read and write | ||||
| Option Data Storage | Read and write | ||||
| Option Detection | Read and write | ||||
| Fault Level | Read and write | ||||
| Feedback 1 Source | Read and write | ||||
| Feedback 1 Conversion | Read and write | ||||
| Feedback 1 Source Unit | Read and write | ||||
| Feedback 2 Source | Read and write | ||||
| Feedback 2 Conversion | Read and write | ||||
| Feedback 2 Source Unit | Read and write | ||||
| Feedback 3 Source | Read and write | ||||
| Feedback 3 Conversion | Read and write | ||||
| Feedback 3 Source Unit | Read and write | ||||
| Reference/Feedback Unit | Read and write | ||||
| Minimum Reference/Feedb. | Read and write | ||||
| Maximum Reference/Feedb. | Read and write | ||||
| Feedback Function | Read and write | ||||
| Setpoint 1 | Read and write | ||||
| Setpoint 2 | Read and write | ||||
| Setpoint 3 | Read and write | ||||
| Refrigerant | Read and write | ||||
| User Defined Refrigerant A1 | Read and write | ||||
| User Defined Refrigerant A2 | Read and write | ||||
| User Defined Refrigerant A3 | Read and write | ||||
| Duct 1 Area [m ] | Read and write | ||||
| Duct 1 Area [in ] | Read and write | ||||
| Duct 2 Area [m ] | Read and write | ||||
| Duct 2 Area [in ] | Read and write | ||||
| Air Density Factor [%] | % | Read and write | |||
| Sensorless Unit | Read and write | ||||
| Sensorless Information | Read | ||||
| Closed Loop Type | Read and write | ||||
| PID Performance | Read and write | ||||
| PID Output Change | Read and write | ||||
| Minimum Feedback Level | Read and write | ||||
| Maximum Feedback Level | Read and write | ||||
| Autotuning | Read and write | ||||
| PID Normal/Inverse Control | Read and write | ||||
| PID Start Speed [RPM] | rpm | Read and write | |||
| PID Start Speed [Hz] | Hz | Read and write | |||
| On Reference Bandwidth | % | Read and write | |||
| PID Anti Windup | Read and write | ||||
| PID Proportional Gain | Read and write | ||||
| PID Integral Time | s | Read and write | |||
| PID Differentiation Time | s | Read and write | |||
| PID Diff. Gain Limit | Read and write | ||||
| Closed Loop Type 2 | Read and write | ||||
| PID Performance 2 | Read and write | ||||
| PID Output Change 2 | Read and write | ||||
| Minimum Feedback Level 2 | Read and write | ||||
| Maximum Feedback Level 2 | Read and write | ||||
| PID Autotuning | Read and write | ||||
| Ext. 1 Ref./Feedback Unit | Read and write | ||||
| Ext. 1 Minimum Reference | Read and write | ||||
| Ext. Maximum Reference | Read and write | ||||
| Ext. 1 Reference Source | Read and write | ||||
| Ext. 1 Feedback Source | Read and write | ||||
| Ext. 1 Setpoint | Read and write | ||||
| Ext. Reference [Unit] | Read | ||||
| Ext. 1 Feedback [Unit] | Read | ||||
| Ext. 1 Output [%] | % | Read | |||
| Ext. 1 Normal/Inverse Control | Read and write | ||||
| Ext. 1 Proportional Gain | Read and write | ||||
| Ext. 1 Integral Time | s | Read and write | |||
| Ext. 1 Differentiation Time | s | Read and write | |||
| Ext. 1 Dif. Gain Limit | Read and write | ||||
| Ext. 1 On Reference Bandwidth | % | Read and write | |||
| Ext. 2 Ref./Feedback Unit | Read and write | ||||
| Ext. 2 Minimum Reference | Read and write | ||||
| Ext. 2 Maximum Reference | Read and write | ||||
| Ext. 2 Reference Source | Read and write | ||||
| Ext. 2 Feedback Source | Read and write | ||||
| Ext. 2 Setpoint | Read and write | ||||
| Ext. 2 Reference [Unit] | Read | ||||
| Ext. 2 Feedback [Unit] | Read | ||||
| Ext. 2 Output [%] | % | Read | |||
| Ext. 2 Normal/Inverse Control | Read and write | ||||
| Ext. 2 Proportional Gain | Read and write | ||||
| Ext. 2 Integral Time | s | Read and write | |||
| Ext. 2 Differentiation Time | s | Read and write | |||
| Ext. 2 Dif. Gain Limit | Read and write | ||||
| Ext. 2 On Reference Bandwidth | % | Read and write | |||
| Ext. 3 Ref./Feedback Unit | Read and write | ||||
| Ext. 3 Minimum Reference | Read and write | ||||
| Ext. 3 Maximum Reference | Read and write | ||||
| Ext. 3 Reference Source | Read and write | ||||
| Ext. 3 Feedback Source | Read and write | ||||
| Ext. 3 Setpoint | Read and write | ||||
| Ext. 3 Reference [Unit] | Read | ||||
| Ext. 3 Feedback [Unit] | Read | ||||
| Ext. 3 Output [%] | % | Read | |||
| Ext. 3 Normal/Inverse Control | Read and write | ||||
| Ext. 3 Proportional Gain | Read and write | ||||
| Ext. 3 Integral Time | s | Read and write | |||
| Ext. 3 Differentiation Time | s | Read and write | |||
| Ext. 3 Dif. Gain Limit | Read and write | ||||
| Ext. 3 On Reference Bandwidth | % | Read and write | |||
| External Interlock Delay | s | Read and write | |||
| Power Filter Time | s | Read and write | |||
| Air Pressure to Flow Signal Source | Read and write | ||||
| Air Pressure to Flow Fan k-factor | Read and write | ||||
| Air Pressure to Flow Air Density | Read and write | ||||
| Air Pressure to Flow Fan Flow Unit | Read and write | ||||
| Air Pressure to Flow Signal Unit | Read and write | ||||
| Low Power Auto Set-up | Read and write | ||||
| Low Power Detection | Read and write | ||||
| Low Speed Detection | Read and write | ||||
| No-flow Detection | Read and write | ||||
| No-flow Delay | s | Read and write | |||
| Dry Pump Function | Read and write | ||||
| Dry Pump Delay | s | Read and write | |||
| No-flow Low Speed [RPM] | rpm | Read and write | |||
| No-flow Low Speed [Hz] | Hz | Read and write | |||
| No-flow Power | kW | Read | |||
| Power Correction Factor | % | Read and write | |||
| Low Speed [RPM] | rpm | Read and write | |||
| Low Speed [Hz] | Hz | Read and write | |||
| Low Speed Power [kW] | kW | Read and write | |||
| Low Speed Power [hp] | Read and write | ||||
| High Speed [RPM] | rpm | Read and write | |||
| High Speed [Hz] | Hz | Read and write | |||
| High Speed Power [kW] | kW | Read and write | |||
| High Speed Power [hp] | Read and write | ||||
| Minimum Run Time | s | Read and write | |||
| Minimum Sleep Time | s | Read and write | |||
| Wake-up Speed [RPM] | rpm | Read and write | |||
| Wake-up Speed [Hz] | Hz | Read and write | |||
| Wake-up Ref./FB Difference | % | Read and write | |||
| Setpoint Boost | % | Read and write | |||
| Maximum Boost Time | s | Read and write | |||
| End of Curve Function | Read and write | ||||
| End of Curve Delay | s | Read and write | |||
| End of Curve Tolerance | % | Read and write | |||
| Broken Belt Function | Read and write | ||||
| Broken Belt Torque | % | Read and write | |||
| Broken Belt Delay | s | Read and write | |||
| Short Cycle Protection | Read and write | ||||
| Interval between Starts | s | Read and write | |||
| Minimum Run Time 2 | s | Read and write | |||
| Minimum Run Time Override | Read and write | ||||
| Minimum Run Time Override Value | Read and write | ||||
| Flow Compensation | Read and write | ||||
| Square-Linear Curve Approximation | % | Read and write | |||
| Work Point Calculation | Read and write | ||||
| Speed at No-Flow [RPM] | rpm | Read and write | |||
| Speed at No-Flow [Hz] | Hz | Read and write | |||
| Speed at Design Point [RPM] | rpm | Read and write | |||
| Speed at Design Point [Hz] | Hz | Read and write | |||
| Pressure at No-Flow Speed | Read and write | ||||
| Pressure at Rated Speed | Read and write | ||||
| Flow at Design Point | Read and write | ||||
| Flow at Rated Speed | Read and write | ||||
| ON Time | Read and write | ||||
| ON Action | Read and write | ||||
| OFF Time | Read and write | ||||
| OFF Action | Read and write | ||||
| Occurrence | Read and write | ||||
| Timed Actions Mode | Read and write | ||||
| Timed Actions Reactivation | Read and write | ||||
| Maintenance Item | Read and write | ||||
| Maintenance Action | Read and write | ||||
| Maintenance Base | Read and write | ||||
| Maintenance Interval | Read and write | ||||
| Maintenance Date and Time | Read and write | ||||
| Reset Maintenance Word | Read and write | ||||
| Maintenance Text | Read and write | ||||
| Energy Log Resolution | Read and write | ||||
| Period Start | Read and write | ||||
| Energy Log | Read | ||||
| Reset Energy Log | Read and write | ||||
| Trend Variable | Read and write | ||||
| Continuous Bin Data | Read | ||||
| Timed Bin Data | Read | ||||
| Timed Period Start | Read and write | ||||
| Timed Period Stop | Read and write | ||||
| Minimum Bin Value | Read and write | ||||
| Reset Continuous Bin Data | Read and write | ||||
| Reset Timed Bin Data | Read and write | ||||
| Power Reference Factor | % | Read and write | |||
| Energy Cost | Read and write | ||||
| Investment | Read and write | ||||
| Energy Savings | kWh | Read | |||
| Cost Savings | Read | ||||
| CO2 Conversion Factor | Read and write | ||||
| CO2 Reduction | Read | ||||
| Fire Mode Function | Read and write | ||||
| Fire Mode Configuration | Read and write | ||||
| Fire Mode Unit | Read and write | ||||
| Fire Mode Min Reference | Read and write | ||||
| Fire Mode Max Reference | Read and write | ||||
| Fire Mode Preset Reference | % | Read and write | |||
| Fire Mode Reference Source | Read and write | ||||
| Fire Mode Feedback Source | Read and write | ||||
| Fire Mode Alarm Handling | Read and write | ||||
| Drive Bypass Function | Read and write | ||||
| Drive Bypass Delay Time | s | Read and write | |||
| Fire Mode Ramp Up Time | s | Read and write | |||
| Fire Mode Ramp Down Time | s | Read and write | |||
| Timeout for Fire Mode Test | min | Read and write | |||
| Fire Mode Signal Operation | Read and write | ||||
| Missing Motor Function | Read and write | ||||
| Missing Motor Coefficient 1 | Read and write | ||||
| Missing Motor Coefficient 2 | Read and write | ||||
| Missing Motor Coefficient 3 | Read and write | ||||
| Missing Motor Coefficient 4 | Read and write | ||||
| Locked Rotor Function | Read and write | ||||
| Locked Rotor Coefficient 1 | Read and write | ||||
| Locked Rotor Coefficient 2 | Read and write | ||||
| Locked Rotor Coefficient 3 | Read and write | ||||
| Locked Rotor Coefficient 4 | Read and write | ||||
| Cascade Controller | Read and write | ||||
| Motor Start | Read and write | ||||
| Pump Cycling Order | Read and write | ||||
| Fixed Lead Pump | Read and write | ||||
| Number of Pumps | Read and write | ||||
| Staging Bandwidth | % | Read and write | |||
| Override Bandwidth | % | Read and write | |||
| Fixed Speed Bandwidth | % | Read and write | |||
| SBW Staging Delay | s | Read and write | |||
| SBW Destaging Delay | s | Read and write | |||
| OBW Time | s | Read and write | |||
| Destage at No-Flow | Read and write | ||||
| Stage Function | Read and write | ||||
| Stage Function Time | s | Read and write | |||
| Destage Function | Read and write | ||||
| Destage Function Time | s | Read and write | |||
| Ramp Down Delay | s | Read and write | |||
| Ramp Up Delay | s | Read and write | |||
| Staging Threshold | % | Read and write | |||
| Destaging Threshold | % | Read and write | |||
| Staging Speed [RPM] | rpm | Read | |||
| Staging Speed [Hz] | Hz | Read | |||
| Destaging Speed [RPM] | rpm | Read | |||
| Destaging Speed [Hz] | Hz | Read | |||
| Lead Pump Alternation | Read and write | ||||
| Alternation Event | Read and write | ||||
| Alternation Time Interval | h | Read and write | |||
| Alternation Timer Value | Read | ||||
| Alternation Predefined Time | Read and write | ||||
| Alternation if Load <50% | Read and write | ||||
| Staging Mode at Alternation | Read and write | ||||
| Run Next Pump Delay | s | Read and write | |||
| Run on Mains Delay | s | Read and write | |||
| Cascade Status | Read | ||||
| Pump Status | Read | ||||
| Lead Pump | Read | ||||
| Relay Status | Read | ||||
| Pump ON Time | h | Read and write | |||
| Relay ON Time | h | Read | |||
| Reset Relay Counters | Read and write | ||||
| Inverse Interlock | Read | ||||
| Pump Interlock | Read and write | ||||
| Manual Alternation | Read and write | ||||
| High Starting Torque Time [s] | s | Read and write | |||
| High Starting Torque Current [%] | % | Read and write | |||
| Locked Rotor Protection | Read and write | ||||
| Locked Rotor Detection Time [s] | Read and write | ||||
| Locked Rotor Detection Speed Error [%] | % | Read and write | |||
| Heat Sink Fan Mode | Read and write | ||||
| Motor Frequency 2 | Hz | Read and write | |||
| Kin. Back-up UdcRef | V | Read and write | |||
| Kin. Back-up Integral Time | s | Read and write | |||
| Kin.Back-up Lead Filter Time | s | Read and write | |||
| Kin. Back-up Min Run Time | s | Read and write | |||
| Mains Loss Duration | s | Read and write | |||
| Kin.Back-up Start Off | V | Read and write | |||
| Individual Currents | Read and write | ||||
| Alarm Log: Ext. Reference | % | Read | |||
| Alarm Log: Frequency | Hz | Read | |||
| Alarm Log: Current | A | Read | |||
| Alarm Log: Voltage | V | Read | |||
| Alarm Log: DC Link Voltage | V | Read | |||
| Alarm Log: Control Word | Read | ||||
| Alarm Log: Status Word | Read | ||||
| Alarm Log: Torque | Nm | Read | |||
| Alarm Log: CBM Value | % | Read | |||
| Alarm Log: CBM Threshold | % | Read | |||
| Flux Sensorless Model Shift | Read and write | ||||
| Flux Sensorless Corr. Gain | Read and write | ||||
| Speed PID Anti Windup Gain | % | Read and write | |||
| Current PID Anti Windup Gain | Read and write | ||||
| Modulation Index | % | Read and write | |||
| Rotor Position Estimation Gain | % | Read and write | |||
| IPv6 Address Assignment | Read and write | ||||
| IPv6 Address | Read and write | ||||
| Prefix Length | Read and write | ||||
| Default Gateway | Read and write | ||||
| DHCPv6 Server | Read and write | ||||
| Lease Expires IPv6 | Read | ||||
| Name Servers IPv6 | Read and write | ||||
| IoT Profile | Read and write | ||||
| IoT Connection Info | Read and write | ||||
| UUID | Read and write | ||||
| 802.1X Port-Based Network Access Control | Read and write | ||||
| Protocol Status Word | Read and write | ||||
| Component Temp. | °C | Read | |||
| Auxiliary Temp. | °C | Read | |||
| Component SW ID | Read | ||||
| HS Temp. ph.U | °C | Read | |||
| HS Temp. ph.V | °C | Read | |||
| HS Temp. ph.W | °C | Read | |||
| PC Fan A Speed | rpm | Read | |||
| PC Fan B Speed | rpm | Read | |||
| PC Fan C Speed | rpm | Read | |||
| FPC Fan A Speed | rpm | Read | |||
| FPC Fan B Speed | rpm | Read | |||
| FPC Fan C Speed | rpm | Read | |||
| FPC Fan D Speed | rpm | Read | |||
| FPC Fan E Speed | rpm | Read | |||
| FPC Fan F Speed | rpm | Read | |||
| Warning Log: Warning Number | Read | ||||
| Warning Log: Value | Read | ||||
| Warning Log: Time | s | Read | |||
| Warning Log: Date and Time | Read | ||||
| Warning Log: Speed | rpm | Read | |||
| Warning Log: Duration | s | Read | |||
| Warning Log: Ext. Reference | % | Read | |||
| Warning Log: Frequency | Hz | Read | |||
| Warning Log: Current | A | Read | |||
| Warning Log: Voltage | V | Read | |||
| Warning: DC Link Voltage | V | Read | |||
| Warning Log: Control Word | Read | ||||
| Warning Log: Status Word | Read | ||||
| Warning Log: Torque | Nm | Read | |||
| Warning Log: CBM Value | % | Read | |||
| Warning Log: CBM Threshold | % | Read | |||
| Audit Log: Event | Read | ||||
| Audit Log: Account | Read | ||||
| Audit Log: Channel | Read | ||||
| Audit Log: Operating Seconds | s | Read | |||
| Audit Log: Date and Time | Read | ||||
| Function | Read and write | ||||
| Status | Read | ||||
| Start Time | Read | ||||
| Stop Time | Read | ||||
| Readout Setting | Read and write | ||||
| Alarm High Threshold | % | Read | |||
| Warning S2 High Threshold | % | Read | |||
| Warning S1 High Threshold | % | Read | |||
| Actual Monitor Value | % | Read | |||
| Warning S1 Low Threshold | % | Read | |||
| Warning S2 Low Threshold | % | Read | |||
| Alarm Low Threshold | % | Read | |||
| Type | Read and write | ||||
| Status 2 | Read | ||||
| Progress | % | Read | |||
| Baseline Result Info | Read | ||||
| Duration | Read and write | ||||
| Online Speed Band | % | Read and write | |||
| Min. Speed | Read and write | ||||
| Max. Speed | Read and write | ||||
| Speed Points | Read and write | ||||
| Baseline Statistics | Read and write | ||||
| Warning Mode | Read and write | ||||
| Alarm Mode | Read and write | ||||
| Alarm High | Read and write | ||||
| Warning S2 High | Read and write | ||||
| Warning S1 High | Read and write | ||||
| Warning S1 Low | Read and write | ||||
| Warning S2 Low | Read and write | ||||
| Alarm Low | Read and write | ||||
| Online Baseline Counter | Read and write | ||||
| Extend Factor | Read and write | ||||
| Threshold Generation | Read and write | ||||
| Threshold Limits | Read and write | ||||
| Source | Read and write | ||||
| Sensor 1 Unit | Read and write | ||||
| Sensor Name | Read and write | ||||
| Active Threshold | % | Read and write | |||
| Load Mode | Read and write | ||||
| Load Threshold | % | Read and write | |||
| Imbalance Limit | % | Read and write | |||
| Imbalance Value | % | Read | |||
| DC-link Ripple Limit | % | Read and write | |||
| DC-link Ripple Value | % | Read | |||
| Signature Gain | Read and write | ||||
| Filter Time Constant | s | Read and write | |||
| Fluctuation Limits | Read and write | ||||
| Cavitation [%] | % | Read | |||
| Stator [%] | % | Read | |||
| Load [%] | % | Read | |||
| Sensor 1 [%] | % | Read | |||
| Sensor 1 [Unit] | Read | ||||
| Sensor 2 [%] | % | Read | |||
| Sensor 2 [Unit] | Read | ||||
| Sensor 3 [%] | % | Read | |||
| Sensor 3 [Unit] | Read | ||||
| Sensor 4 [%] | % | Read | |||
| Sensor 4 [Unit] | Read | ||||
| Last Change Time | Read | ||||
| Monitoring Min Speed | rpm | Read | |||
| Monitoring Max Speed | rpm | Read | |||
| Monitoring Speeds | rpm | Read and write | |||
| Alarm Time | Read and write | ||||
| Warning S2 Time | Read and write | ||||
| Warning S1 Time | Read and write | ||||
| Interpolation Type | Read and write | ||||
| Alarm High 2 | % | Read and write | |||
| Warning S2 High 2 | % | Read and write | |||
| Stator Warning S1 | % | Read and write | |||
| Resonance Active | % | Read and write | |||
| Resonance Load | % | Read and write | |||
| Alarm High 3 | % | Read and write | |||
| Warning S2 High 3 | % | Read and write | |||
| Warning S1 High 2 | % | Read and write | |||
| Warning S1 Low 2 | Read and write | ||||
| Warning S2 Low 2 | % | Read and write | |||
| Alarm Low 2 | % | Read and write | |||
| Alarm High 4 | % | Read and write | |||
| Warning S2 High 4 | % | Read and write | |||
| Warning S1 High 3 | % | Read and write | |||
| Warning Low | % | Read and write | |||
| Alarm Low 3 | % | Read and write | |||
| Alarm High 5 | % | Read and write | |||
| Warning S2 High 5 | % | Read and write | |||
| Warning S1 High 4 | % | Read and write | |||
| Warning Low 2 | % | Read and write | |||
| Alarm Low 4 | % | Read and write | |||
| Alarm High 6 | % | Read and write | |||
| Warning S2 High 6 | % | Read and write | |||
| Warning S1 High 5 | % | Read and write | |||
| Warning Low 3 | % | Read and write | |||
| Alarm Low 5 | % | Read and write | |||
| Alarm High 7 | % | Read and write | |||
| Warning S2 High 7 | % | Read and write | |||
| Warning S1 High 6 | % | Read and write | |||
| Warning Low 4 | % | Read and write | |||
| Alarm Low 6 | % | Read and write | |||
| Alarm High 8 | % | Read and write | |||
| Warning S2 High 8 | % | Read and write | |||
| Warning S1 High 7 | % | Read and write | |||
| Actual Start Time | Read | ||||
| Actual Time Stop | Read | ||||
| Previous Start Time | Read | ||||
| Previous Stop Time | Read | ||||
| Actual Speed | rpm | Read | |||
| Previous Speed | rpm | Read | |||
| Actual Max | % | Read | |||
| Actual Mean + 3 Std. Dev. | % | Read | |||
| Actual Mean | % | Read | |||
| Actual Min | % | Read | |||
| Actual Counter | Read | ||||
| Previous Max | % | Read | |||
| Previous Mean + 3 Std. Dev. | % | Read | |||
| Previous Mean | % | Read | |||
| Previous Min | % | Read | |||
| Previous Counter | Read | ||||
| Actual Max 2 | % | Read | |||
| Actual Mean + 3 Std. Dev. 2 | % | Read | |||
| Actual Mean 2 | % | Read | |||
| Actual Min 2 | % | Read | |||
| Previous Max 2 | % | Read | |||
| Previous Mean + 3 Std. Dev. 2 | % | Read | |||
| Previous Mean 2 | % | Read | |||
| Previous Min 2 | % | Read | |||
| Actual Max 3 | % | Read | |||
| Actual Mean + 3 Std. Dev. 3 | % | Read | |||
| Actual Mean 3 | % | Read | |||
| Actual Min 3 | % | Read | |||
| Previous Max 3 | % | Read and write | |||
| Previous Mean + 3 Std. Dev. 3 | % | Read | |||
| Previous Mean 3 | % | Read | |||
| Previous Min 3 | % | Read | |||
| Actual Max 4 | % | Read | |||
| Actual Mean + 3 Std. Dev. 4 | % | Read | |||
| Actual Mean 4 | % | Read | |||
| Actual Mean - 3 Std. Dev. | % | Read | |||
| Actual Min 4 | % | Read | |||
| Actual Counter 2 | Read | ||||
| Previous Max 4 | % | Read | |||
| Previous Mean + 3 Std. Dev. 4 | % | Read | |||
| Previous Mean 4 | % | Read | |||
| Previous Mean - 3 Std. Dev. | % | Read | |||
| Previous Min 4 | % | Read | |||
| Previous Counter 2 | Read | ||||
| Actual Max 5 | % | Read | |||
| Actual Mean + 3 Std. Dev. 5 | % | Read | |||
| Actual Mean 5 | % | Read | |||
| Actual Min 5 | % | Read | |||
| Actual Counter 3 | Read | ||||
| Previous Max 5 | % | Read | |||
| Previous Mean + 3 Std. Dev. 5 | % | Read | |||
| Previous Mean 5 | % | Read | |||
| Previous Min 5 | % | Read | |||
| Previous Counter 3 | Read | ||||
| Actual Max 6 | % | Read | |||
| Actual Mean + 3 Std. Dev. 6 | % | Read | |||
| Actual Mean 6 | % | Read | |||
| Actual Min 6 | % | Read | |||
| Actual Counter 4 | Read | ||||
| Previous Max 6 | % | Read | |||
| Previous Mean + 3 Std. Dev. 6 | % | Read | |||
| Previous Mean 6 | % | Read | |||
| Previous Min 6 | % | Read | |||
| Previous Counter 4 | Read | ||||
| Actual Max 7 | % | Read | |||
| Actual Mean + 3 Std. Dev. 7 | % | Read | |||
| Actual Mean 7 | % | Read | |||
| Actual Min 7 | % | Read | |||
| Actual Counter 5 | Read | ||||
| Previous Max 7 | % | Read | |||
| Previous Mean + 3 Std. Dev. 7 | % | Read | |||
| Previous Mean 7 | % | Read | |||
| Previous Min 7 | % | Read | |||
| Previous Counter 5 | Read | ||||
| Actual Max 8 | % | Read | |||
| Actual Mean + 3 Std. Dev. 8 | % | Read | |||
| Actual Mean 8 | % | Read | |||
| Actual Min 8 | % | Read | |||
| Actual Counter 6 | Read | ||||
| Previous Max 8 | % | Read | |||
| Previous Mean + 3 Std. Dev. 8 | % | Read | |||
| Previous Mean 8 | % | Read | |||
| Previous Min 8 | % | Read | |||
| Previous Counter 6 | Read | ||||
| Actual Max 9 | % | Read | |||
| Actual Mean + 3 Std. Dev. 9 | % | Read | |||
| Actual Mean 9 | % | Read | |||
| Actual Min 9 | % | Read | |||
| Actual Counter 7 | Read | ||||
| Previous Max 9 | % | Read | |||
| Previous Mean + 3 Std. Dev. 9 | % | Read | |||
| Previous Mean 9 | % | Read | |||
| Previous Min 9 | % | Read | |||
| Previous Counter 7 | Read | ||||
| Actual Min Speed | rpm | Read | |||
| Actual Max Speed | rpm | Read | |||
| Previous Min Speed | rpm | Read | |||
| Previous Max Speed | rpm | Read | |||
| Function 2 | Read and write | ||||
| Status 3 | Read | ||||
| Step Change in Speed | % | Read and write | |||
| Step Time | s | Read and write | |||
| Return to Reference | Read and write | ||||
| Minimum Speed [RPM] | rpm | Read and write | |||
| Minimum Speed [Hz] | Hz | Read and write | |||
| Autonomous Function | Read and write | ||||
| Autonomous Status | Read | ||||
| Autonomous Capacitance Value | % | Read | |||
| Next Measurement | Read | ||||
| Baseline Generate | Read and write | ||||
| Baseline Status | Read | ||||
| Baseline History | Read | ||||
| Baseline Capacitance Value | % | Read | |||
| Frequency Sweep Min | Hz | Read and write | |||
| Frequency Sweep Max | Hz | Read and write | |||
| Baseline Progress | % | Read and write | |||
| SineWave Filter Type | Read and write | ||||
| Warning S1 Threshold | % | Read and write | |||
| Warning S2 Threshold | % | Read and write | |||
| Alarm Threshold | % | Read and write | |||
| Warning S1 Time 2 | min | Read and write | |||
| Warning S2 Time 2 | min | Read and write | |||
| Alarm Time 2 | min | Read and write | |||
| Last Modified Time | Read | ||||
| Readout Setting 2 | Read and write | ||||
| Capacitance of Phase U | % | Read | |||
| Capacitance of Phase V | % | Read | |||
| Capacitance of Phase W | % | Read | |||
| Measurement History | Read |
Loading registers…

Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Show output frequency, motor current and power of every fan and pump drive on one dashboard.
- Send an alert by email when the alarm word is not equal to 0, so a tripped drive is seen right away.
- Track motor thermal load and DC link voltage in the history to spot an overloaded motor or supply problems.
- Start, stop or change the speed reference of a pump from the portal during commissioning or a service call.
- Adjust ramp times, speed limits or the PID setpoint remotely without walking to the plant room.
- Compare running hours and number of starts across drives to plan maintenance.
Installation
Connect the RS485 port of the drive (terminal 68 to A, terminal 69 to B) to the RS485 port of the ModbusCloud Gateway, and set switch S801 at the last device on the bus.
Set parameter 8-30 Protocol to Modbus RTU, then power the drive off and on.
Set 8-31 Address, 8-32 Baud Rate and 8-33 Parity/Stop Bits to match the bus, for example address 1, 19200 baud, even parity.
In ModbusCloud, add a Modbus device on the Gateway with the same address and import this template.
Check that output frequency and DC link voltage come in with plausible values.
Things to watch for
The drive does not answer on the RS485 bus. What should I check?
Check that 8-30 is set to Modbus RTU and that the drive was power cycled after the change. Address, baud rate and parity in 8-31 to 8-33 must match the Gateway. Swap A and B if nothing comes back, and make sure only the last device on the bus has termination switched on.
Why does a value read as zero or as a strange number?
Many settings and readouts depend on the configuration of the drive, such as the reference unit or an option card that is not fitted. A parameter for a function that is not in use can read 0. Array parameters return the element chosen in the Array Index Pointer register, so set that index first.
How do I write a setting or start the drive safely?
Read the current value first and write only within the range the drive allows. Starting via the control word needs the drive to accept bus control, which is set in parameter group 8-5. Coil 65 decides whether changes are also stored in EEPROM; frequent writes are best kept in RAM.
Can several drives share one RS485 line?
Yes. Give each drive its own address in 8-31 and use the same baud rate and parity on all of them. Wire the bus as one line from device to device and terminate both ends.
Want to see how it works?
