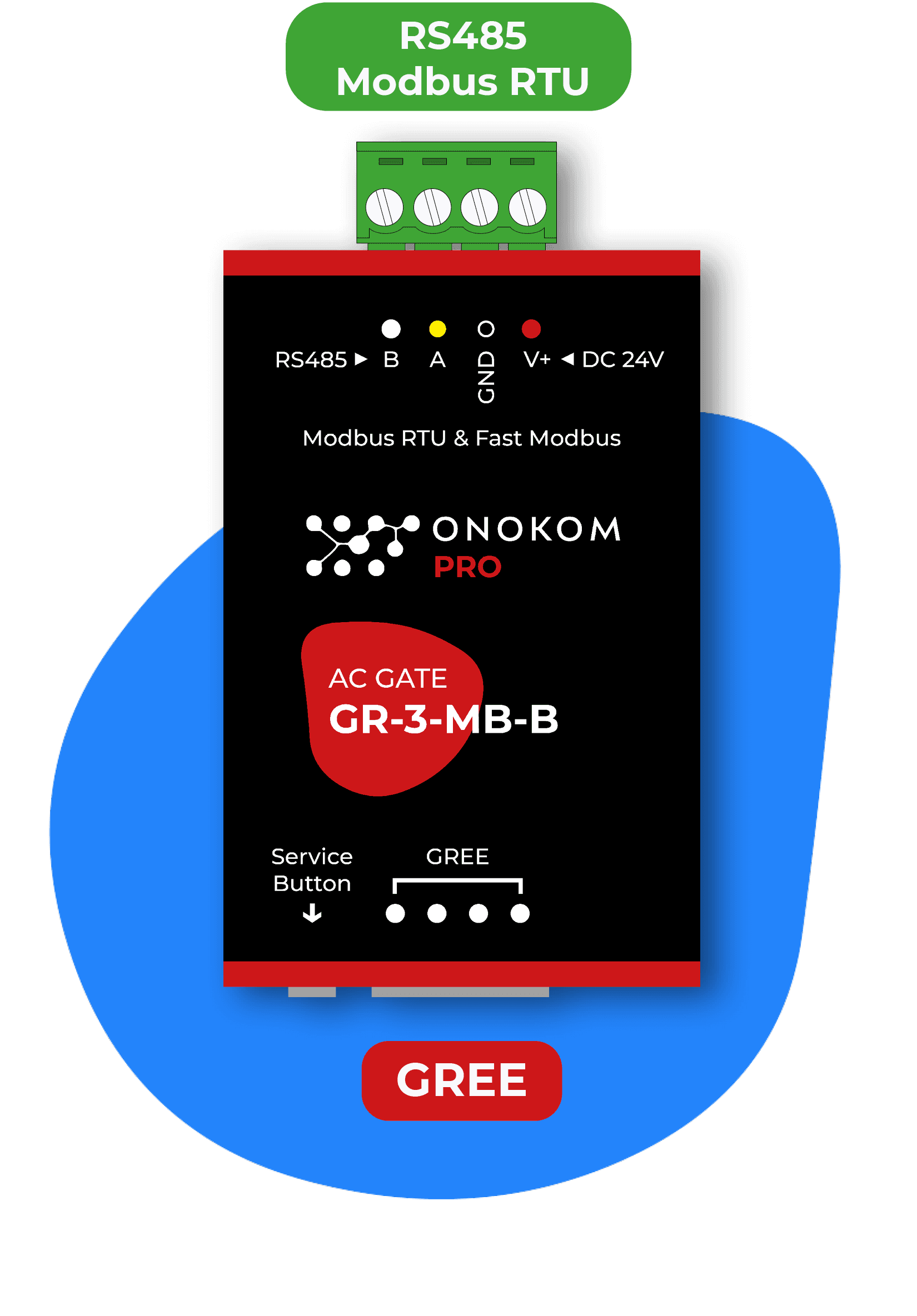

ONOKOM AIR GR-3-MB-B
Controls Gree air conditioners via the ONOKOM GR-3-MB-B Modbus gateway.
This template connects Gree air conditioners via the ONOKOM GR-3-MB-B Modbus RTU gateway. It reads indoor temperatures, operational statuses, and error codes. It also provides control of target temperature, fan speed, vanes, and operating modes.
- Protocol
- Modbus RTU
- Connection
- RS485, 9600 baud
- Registers
- 20, read and write
- Brand
- Onokom
- Key readings
- Indoor air temperature · Indoor heat exchanger temperature · AC connected status · Operating mode statuses · Error code · Error count
- Available commands
- Target temperature · Smart fan speed · Vanes swing · Active and mode control
- Compatible models
- ONOKOM GR-3-MB-B
- Last updated
Registers (20)
15 read, 14 write
| Name | Unit | Access | Address (Hidden until you enter your email) | Function (hidden) | Type (hidden) |
|---|---|---|---|---|---|
| Indoor air temperature | °C | Read | |||
| AC connected | Read | ||||
| Ionization (Status) | Read and write | ||||
| Self cleaning (Status) | Read and write | ||||
| Sleep mode (Status) | Read and write | ||||
| Quiet mode (Status) | Read and write | ||||
| Turbo mode (Status) | Read and write | ||||
| Eco mode (Status) | Read and write | ||||
| Vertical vanes (Status) | Read and write | ||||
| Indoor heat exchanger temperature (Status) | °C | Read | |||
| Error count | Read | ||||
| Error count | count | Read | |||
| Horizontal vanes | Read and write | ||||
| Error code | Read | ||||
| Modbus address | Read and write | ||||
| Active (Control) | Write | ||||
| Loxone modes (Control) | Write | ||||
| Smart fan speed | Write | ||||
| Target temperature | °C | Write | |||
| Vanes swing | Write |
Loading registers…
Send your device list
If a device is not in the library yet, we build the template for free as soon as we have the register data.
Use cases
- Monitor indoor air temperature and heat exchanger temperature on a live dashboard for each Gree AC unit.
- Create alerts when an error code appears or the error count increases beyond a threshold.
- Remotely adjust target temperature and operating mode for Gree air conditioners across multiple sites.
- Schedule fan speed and vanes swing positions based on time-of-day rules for office buildings.
- Track AC connection status to detect offline units and trigger maintenance notifications.
- Log operating mode changes and temperature trends for energy reporting and optimization.
Installation
Wire the ONOKOM GR-3-MB-B gateway to the Gree indoor unit following the manufacturer's wiring diagram, then connect the RS-485 A and B lines to your ModbusCloud Gateway.
Set a unique Modbus slave address on the ONOKOM gateway by writing the desired value to register 128, ensuring no address conflicts on the RS-485 bus.
Configure the ModbusCloud gateway serial port for Modbus RTU at 9600 baud, 8 data bits, 1 stop bit, no parity (or match the ONOKOM gateway settings).
Import the ONOKOM AIR GR-3-MB-B template from the ModbusCloud template library and assign it to the correct Modbus slave address.
Verify communication by checking that indoor air temperature and AC connected status values appear correctly on the ModbusCloud dashboard.
For multi-unit setups, repeat the wiring and address assignment for each additional ONOKOM gateway on the same RS-485 bus.
Things to watch for
Why do I see unexpected values when reading horizontal vanes or ionization status?
Register address 9 is shared between ionization and horizontal vanes functions. Make sure you interpret the register value according to the active function. The template maps both, but only one function may be relevant depending on your Gree model.
Can I connect multiple ONOKOM GR-3-MB-B gateways on one RS-485 bus?
Yes. Each gateway must have a unique Modbus slave address. Set the address via register 128 on each unit before connecting them to the same bus.
The gateway is not responding at all. What should I check?
Verify that the baud rate is set to 9600 on both the ModbusCloud gateway and the ONOKOM device. Check RS-485 wiring polarity (A to A, B to B) and ensure a termination resistor is present if the cable run is long.
Which Gree air conditioner models are compatible with this template?
The template works with any Gree AC unit supported by the ONOKOM GR-3-MB-B gateway. Consult the ONOKOM compatibility list for your specific Gree model before purchasing the gateway.
