Schneider Electric GmbH Modbus templates
All 10 available Schneider Electric GmbH templates for ModbusCloud.
Monitor Schneider Electric energy meters, PowerTag sensors and EVlink wallboxes via Modbus RTU and Modbus TCP.
- Templates
- 10
- Connection
- Modbus RTU and TCP
- Registers
- 4 to 1048 per template
- Compatible models
- iEM2000 series · iEM3000 series · PM5000 series · PM8000 series · ION9000 series · PM2000 series · iEM 2000 series · EVlink Wallbox G4 Smart · PowerTag flex series · PowerTag NSX · PowerTag F160 · PowerTag Rope · PowerTag flex-series (1-phase) · Galaxy 5000 · Galaxy 5500 · ATV212H (IP21, 0.75 to 75 kW) · ATV212W (IP55, 0.75 to 75 kW) · Schneider Electric Altivar 212 variable speed drives · PM3250 (METSEPM3250) · PM3255 (METSEPM3255)
- Last updated
Schneider Electric GmbH templates
3 via Modbus RTU, 7 via Modbus TCP
Schneider Energy Meter (3-phase) via Modbus RTUReads 3-phase energy and power data from Schneider Electric meters via Modbus RTU.Modbus RTU24 read, 0 write
Schneider Energy Meter iEM2000-series (1-phase)Reads single-phase energy metering data from Schneider iEM2000-series meters.Modbus TCP13 read, 0 write
Schneider Energy Meter (3-phase) via Modbus TCPReads 3-phase energy metering data from Schneider Electric meters via Modbus TCP.Modbus TCP24 read, 0 write
Schneider EVlink Wallbox G4 SmartControls and monitors Schneider EVlink G4 Smart Wallbox EV charging via Modbus TCP.Modbus TCP16 read, 2 write
Schneider PowerTag (3-phase)Reads three-phase energy and power data from Schneider PowerTag sensors.Modbus TCP15 read, 0 write
Schneider PowerTag flex-series (1-phase)Reads single-phase energy data from Schneider PowerTag flex-series sensors via Modbus TCP.Modbus TCP4 read, 0 write
Galaxy 5000 / Galaxy 5500Monitors Schneider Electric Galaxy 5000/5500 UPS via Modbus TCPModbus TCP11 read, 0 write
Schneider Acti9 SmartlinkModbus TCP14 read, 0 write

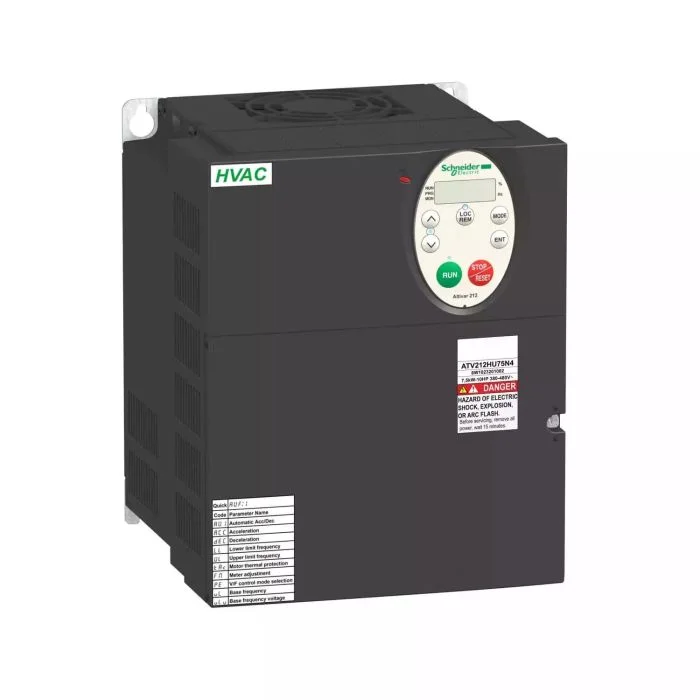

Schneider Electric Altivar ATV212HVAC variable speed drive for fans and pumps: speed, current, power, faults and run commands over Modbus RTU.Modbus RTU79 read, 31 write
Schneider Electric PM3200DIN-rail power meter that measures current, voltage, power, energy per tariff, demand and harmonics.Modbus RTU1048 read, 124 write
The scan recognises these devices
Connect them to RS485 or the network and start a scan in the portal.
Gateway
Portal
Incl. 4G data up to 30 MB per month
Excl. VAT. White label customer portal included. All prices
Order your first gateway100-day money-back guaranteeIf the gateway fails to connect to a Modbus device from our template library, you get your money back.
Schneider Electric's German subsidiary publishes Modbus templates for its energy-metering and EV-charging portfolio used across commercial, industrial and residential electrical distribution. The 6 Schneider Electric GmbH templates in our library cover the iEM2000-series single-phase meter, three-phase energy meters over Modbus RTU and Modbus TCP (iEM2000, iEM3000, PM2000, PM5000, PM8000, ION9000), the PowerTag three-phase and single-phase flex-series sensors, and the EVlink Wallbox G4 Smart.
With ModbusCloud and these Schneider Electric templates you read per-phase voltage, current, active and reactive power, frequency, and imported/exported energy with class-accurate totals. PowerTag sensors give you compact line-to-line and line-to-neutral voltage plus per-phase and total active power. The EVlink G4 template exposes charging station status, session energy, voltage, current, and allows remote current limitation and control commands for operator intervention.
All 6 Schneider Electric GmbH templates are free to browse. Import one into your ModbusCloud portal to bring Schneider energy-distribution and EV-charging data into the same dashboard.
What you can read out
- Per-phase voltage, current and power
- Imported and exported active energy
- EV charging session energy and duration
- Frequency and power factor
- Remote current limitation (EVlink)
Typical installations
- Commercial and industrial sub-metering per distribution circuit
- EV fleet charging at workplaces and depots
- Mixed RTU/TCP electrical distribution across a campus
